Home >> Lincoln >> 1994 >> Mark VIII V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> Left

Left

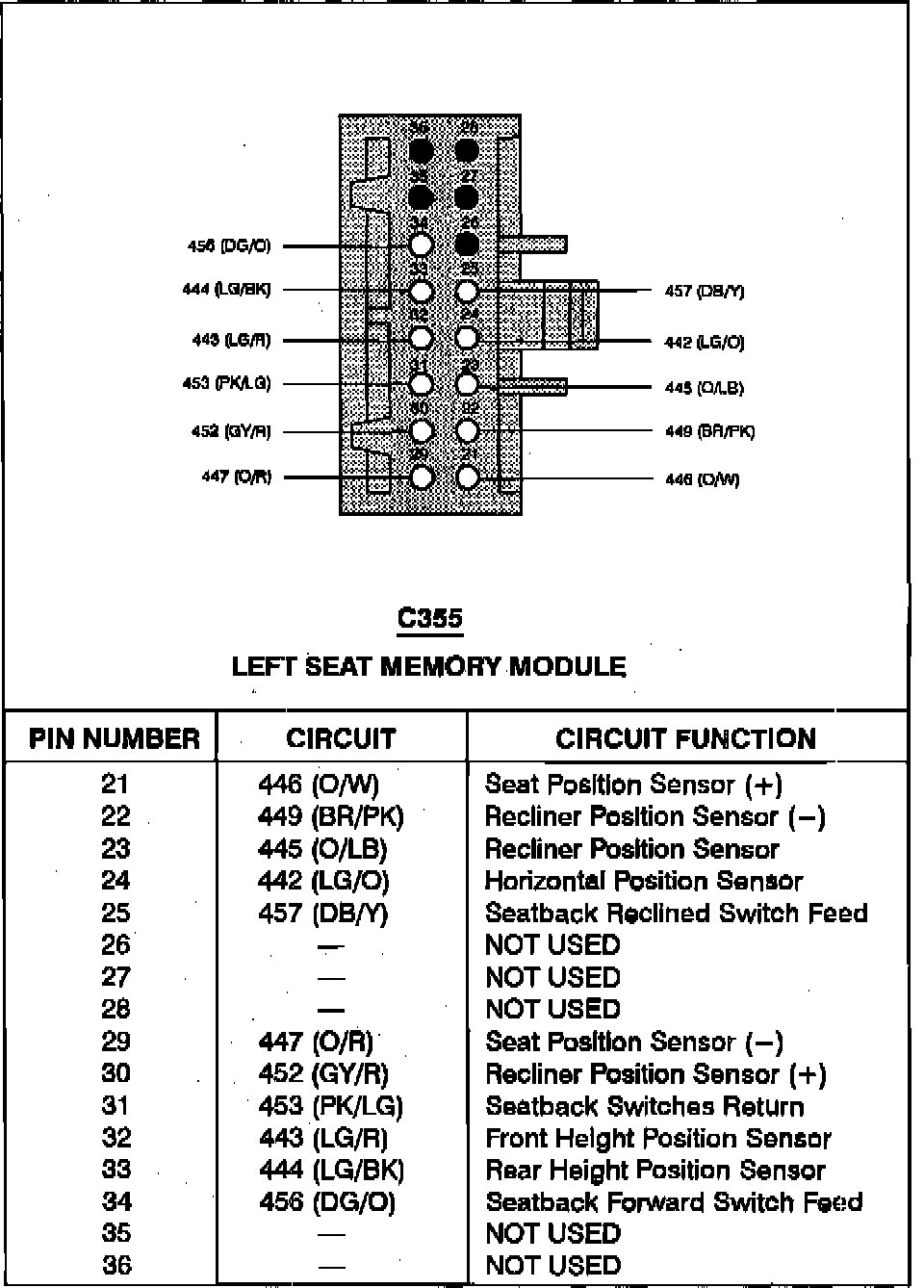

Left Seat Memory Module:

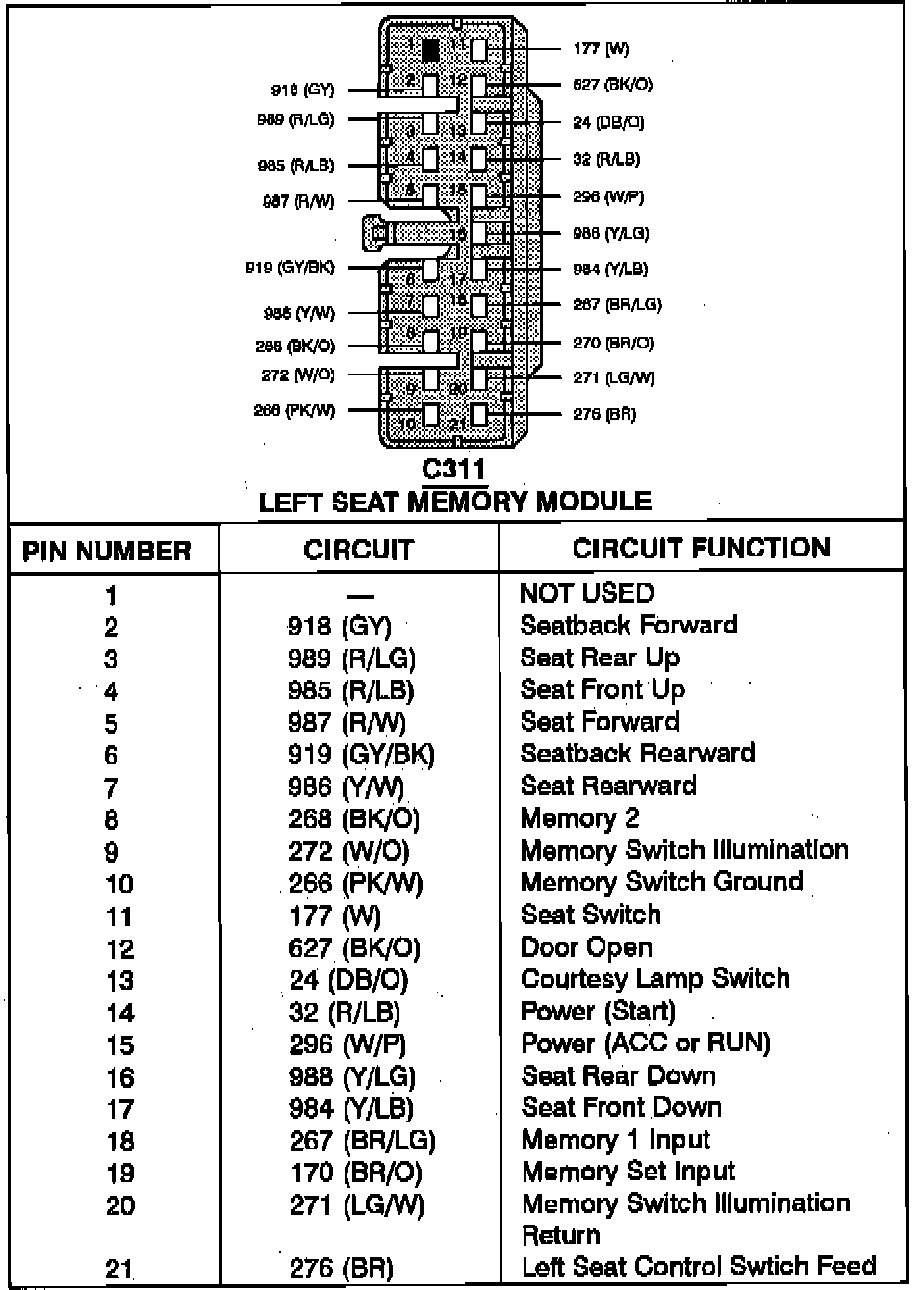

Left Seat Memory Module:




Left Seat Memory Module:
