Keyless Entry Module

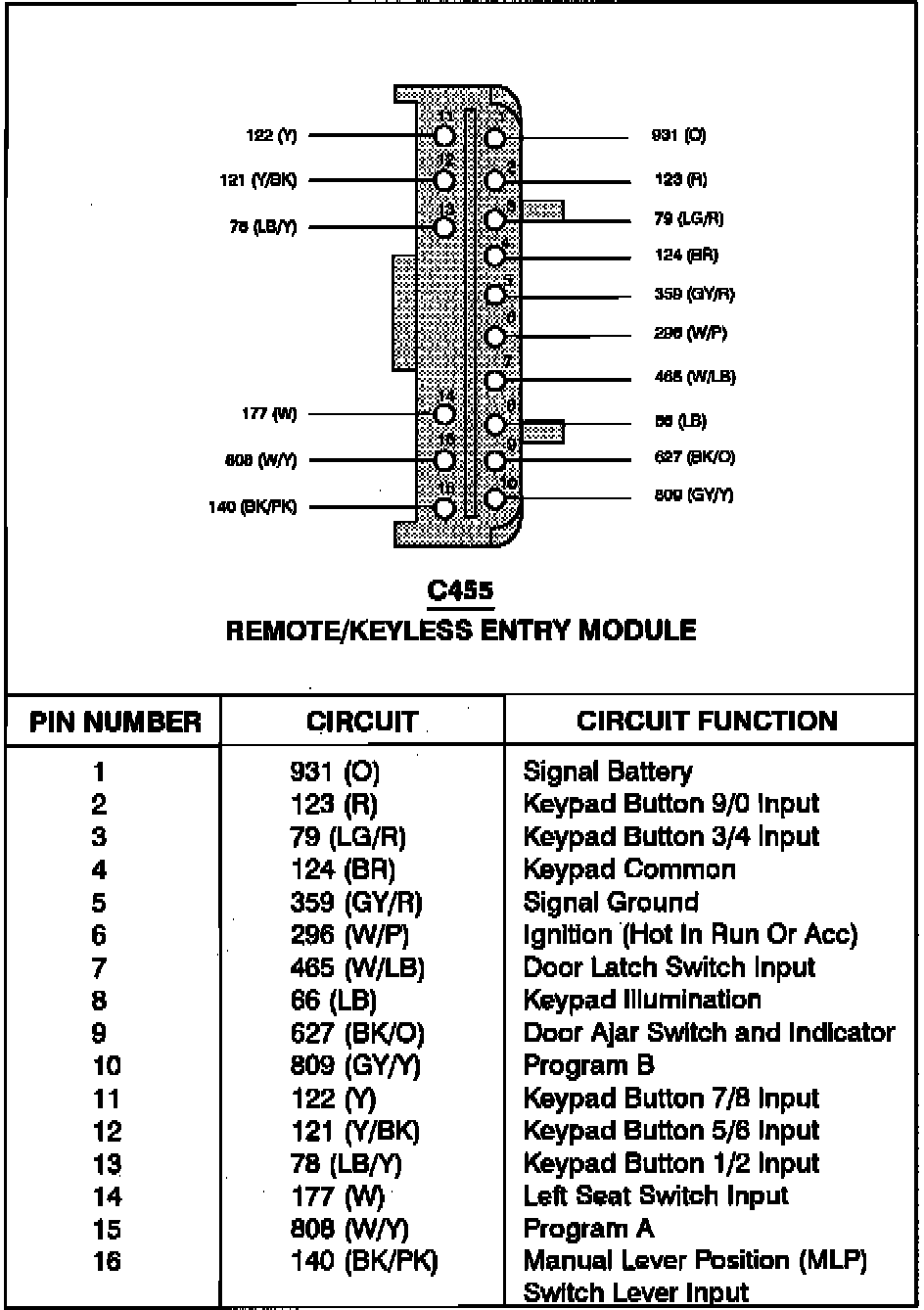

Remote/Keyless Entry Module:




Remote/Keyless Entry Module:




Remote/Keyless Entry Module:
