Home >> Lincoln >> 1994 >> Mark VIII V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> System Diagram >> Variable Control Relay Module Connector

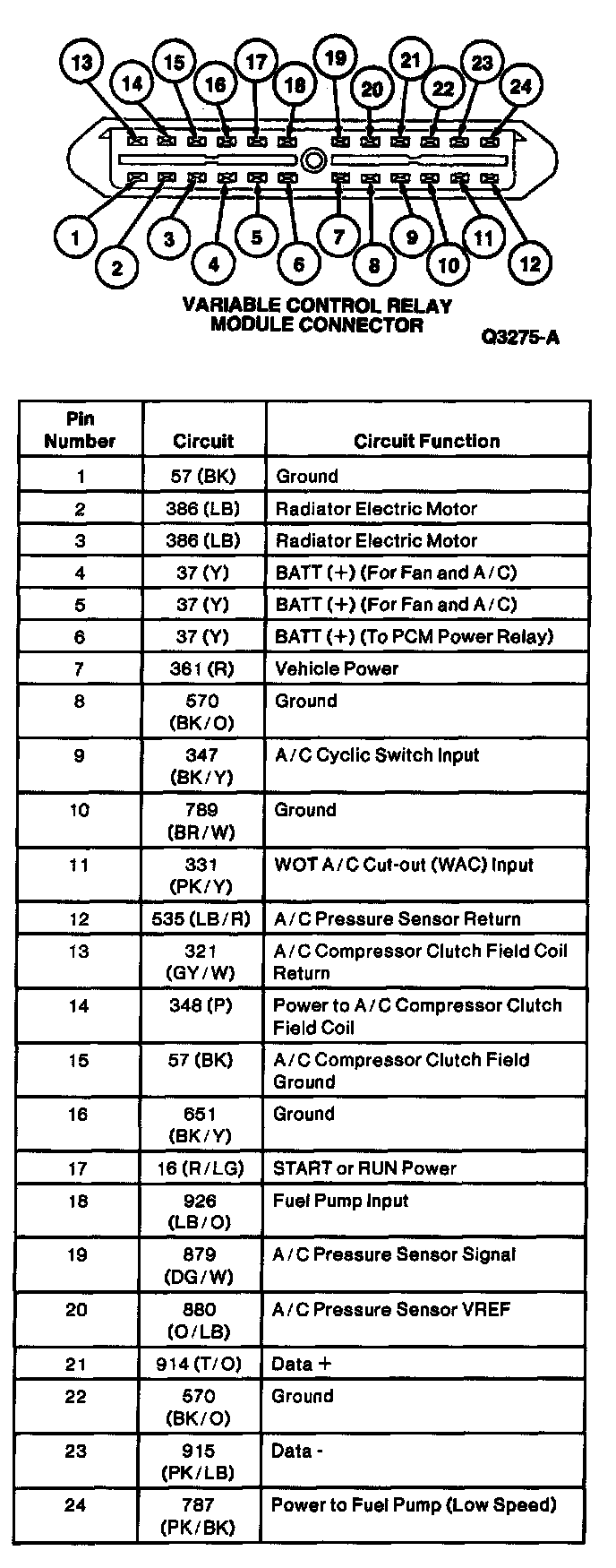

Variable Control Relay Module Connector

Variable Control Relay Module Connector:
