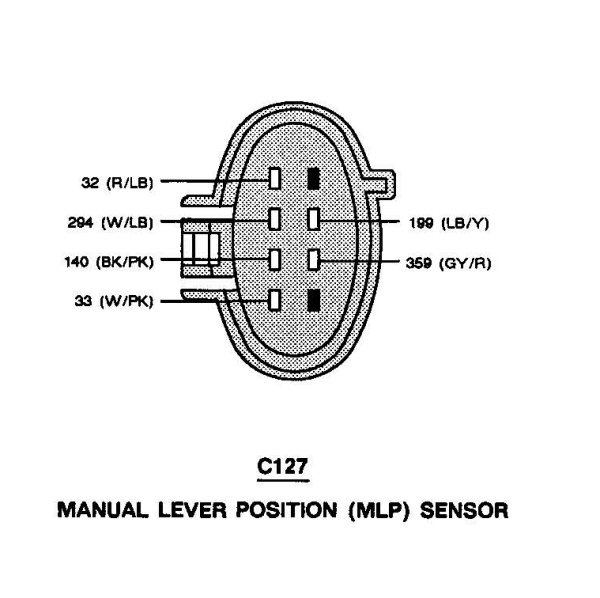

Home >> Lincoln >> 1993 >> Mark VIII V8-4.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams >> Connector Views
