Lincoln
>>
1993
>>
Mark VIII V8-4.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

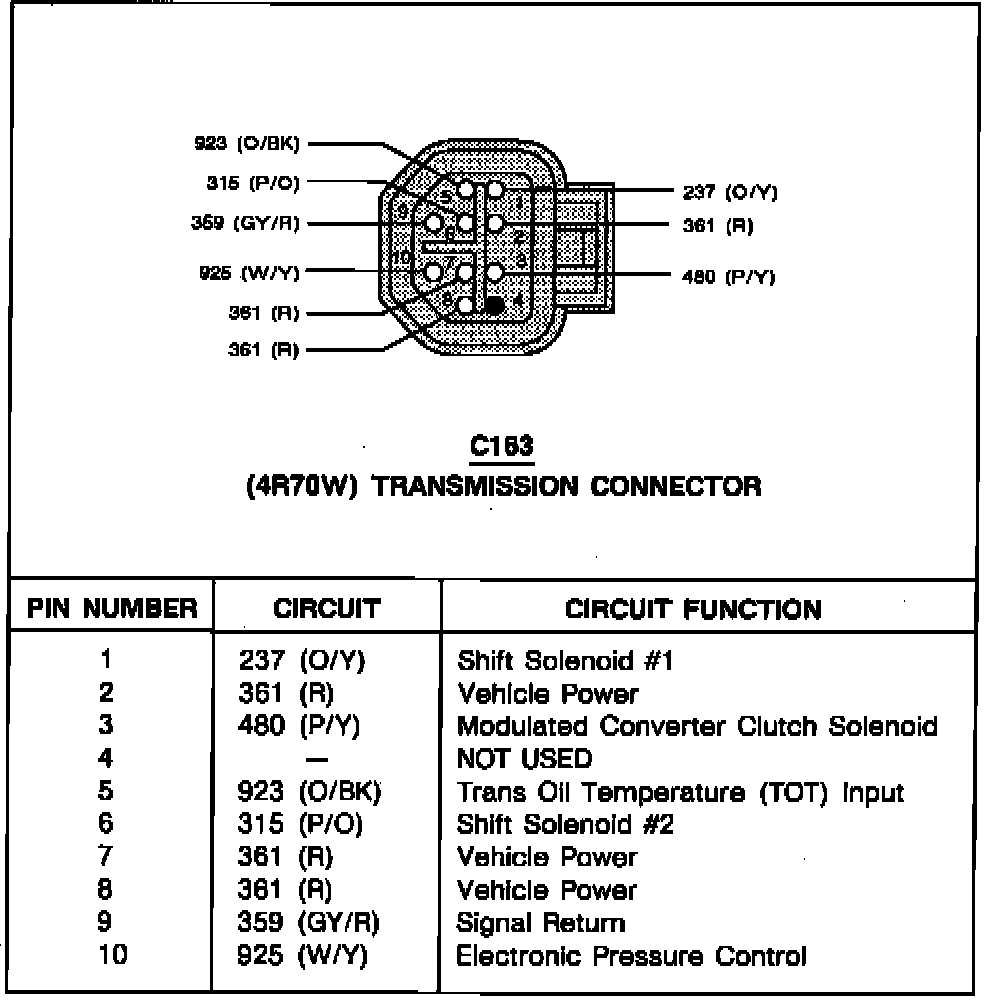

(4R70W) Transmission Connector:
