Home >> Lincoln >> 1992 >> Mark VII V8-302 5.0L HO >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Key-Pad

Keyless Entry Key-Pad

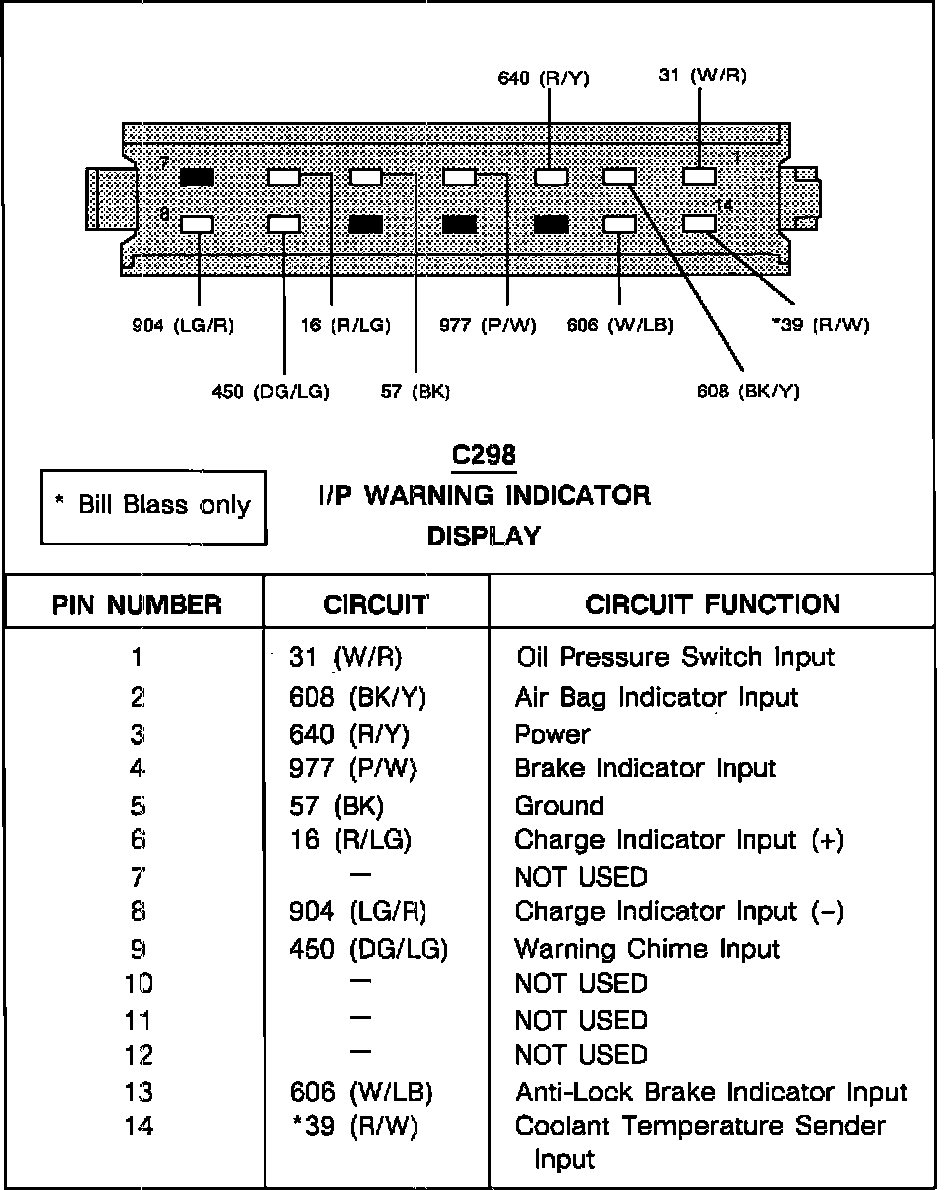

Connector Faces/Pinout Charts:
