Lincoln
>>
1992
>>
Mark VII V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heated Glass Element
>>
Heated Glass Control Module
Heated Glass Control Module

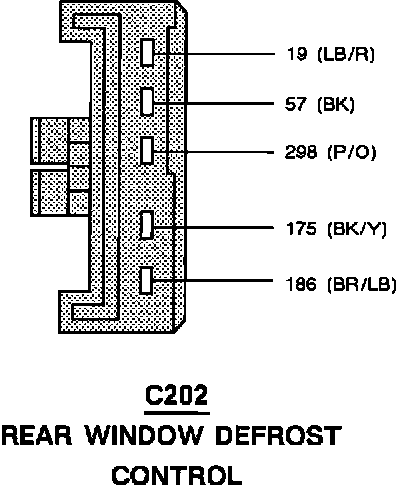

Connector Faces/Pinout Charts:
