Lincoln
>>
1992
>>
Mark VII V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

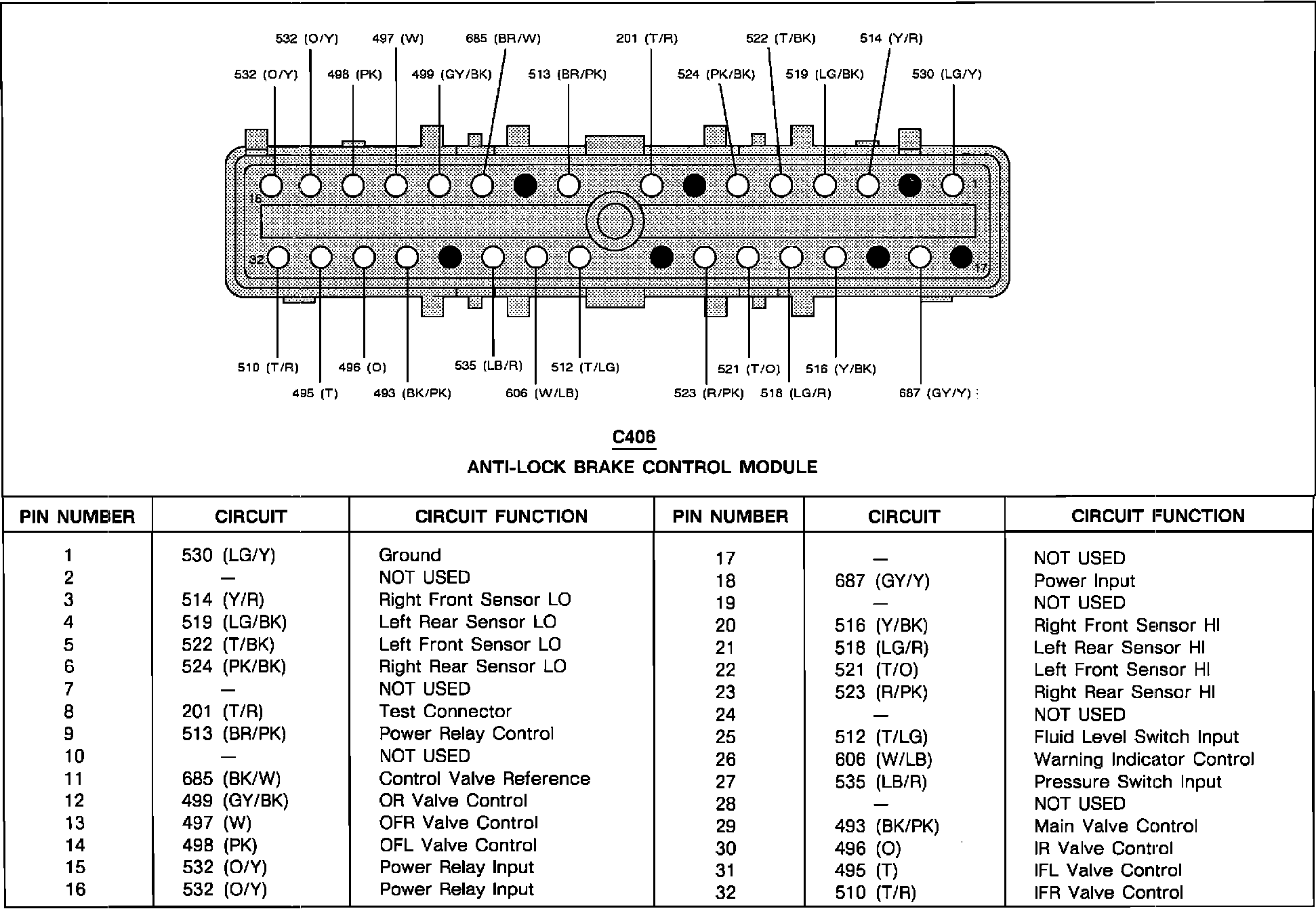

Electronic Brake Control Module
Electronic Brake Control Module
Connector Faces/Pinout Charts:
