Home >> Lincoln >> 1992 >> Continental V6-232 3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Relays and Modules - HVAC >> Control Module HVAC >> Locations >> EATC Control Module

EATC Control Module

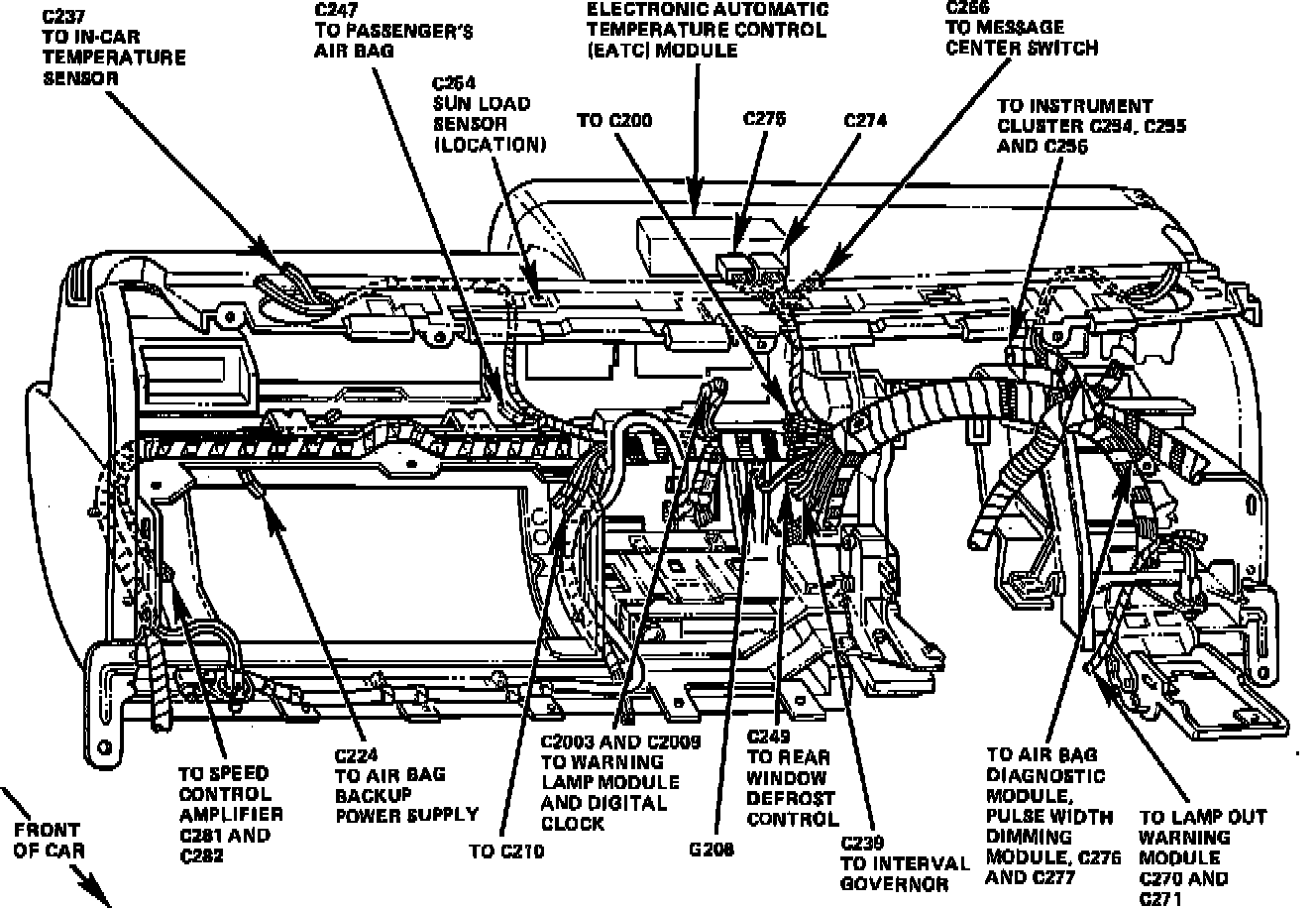

Behind I/P:




Behind Center Of I/P
