Home >> Lincoln >> 1992 >> Continental V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Module

Keyless Entry Module

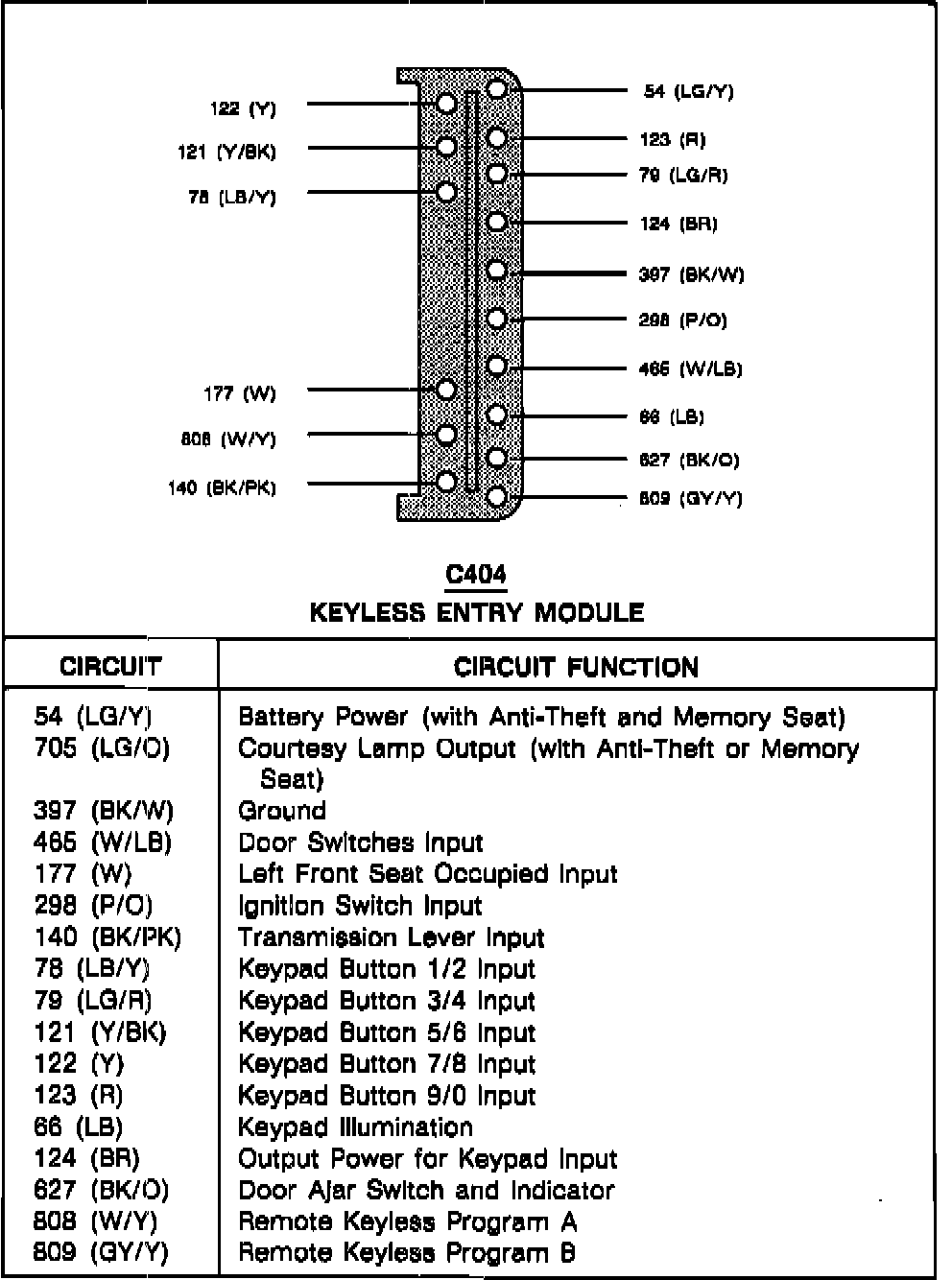

Keyless Entry Module:

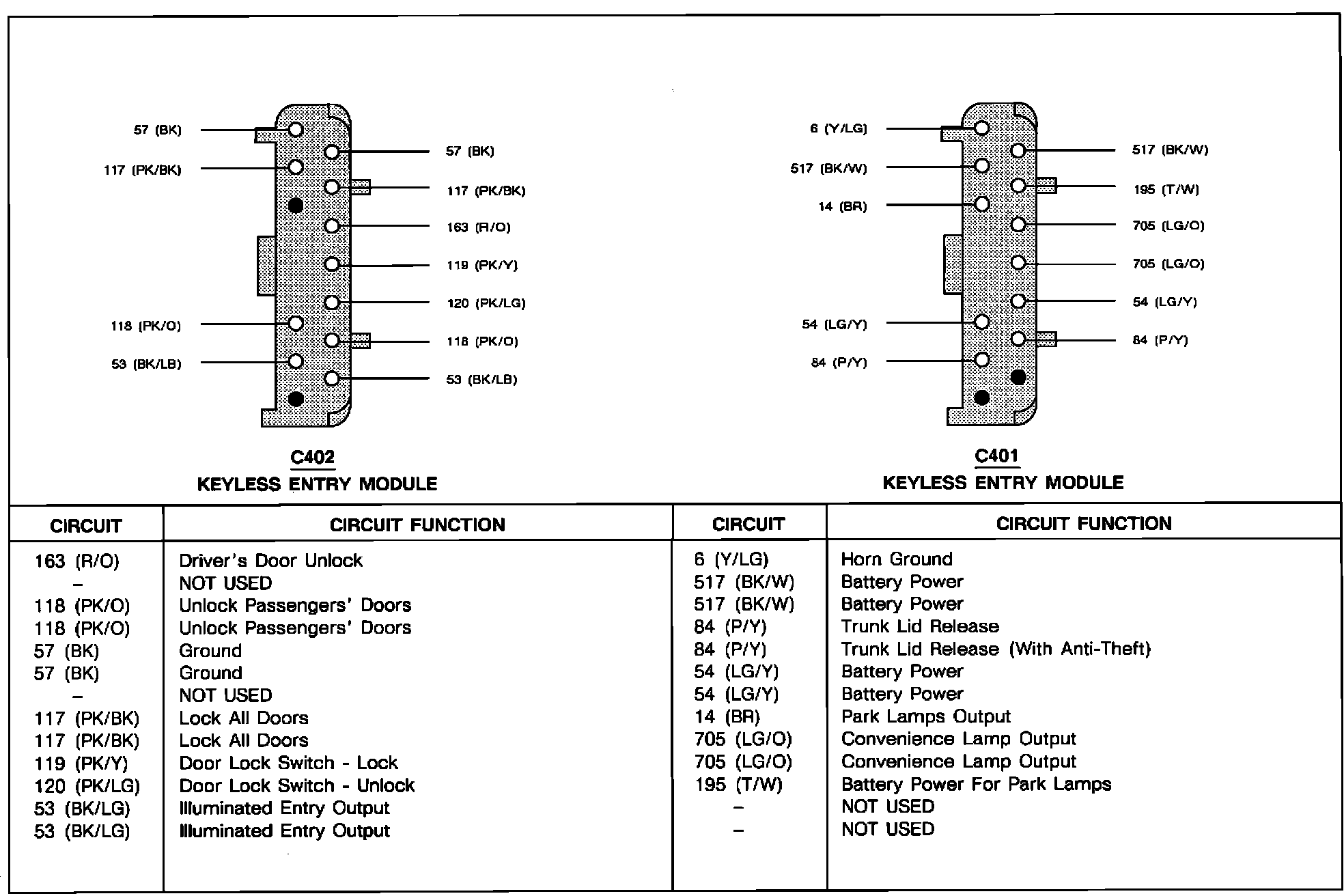

Keyless Entry Module:
