Home >> Lincoln >> 1992 >> Continental V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC

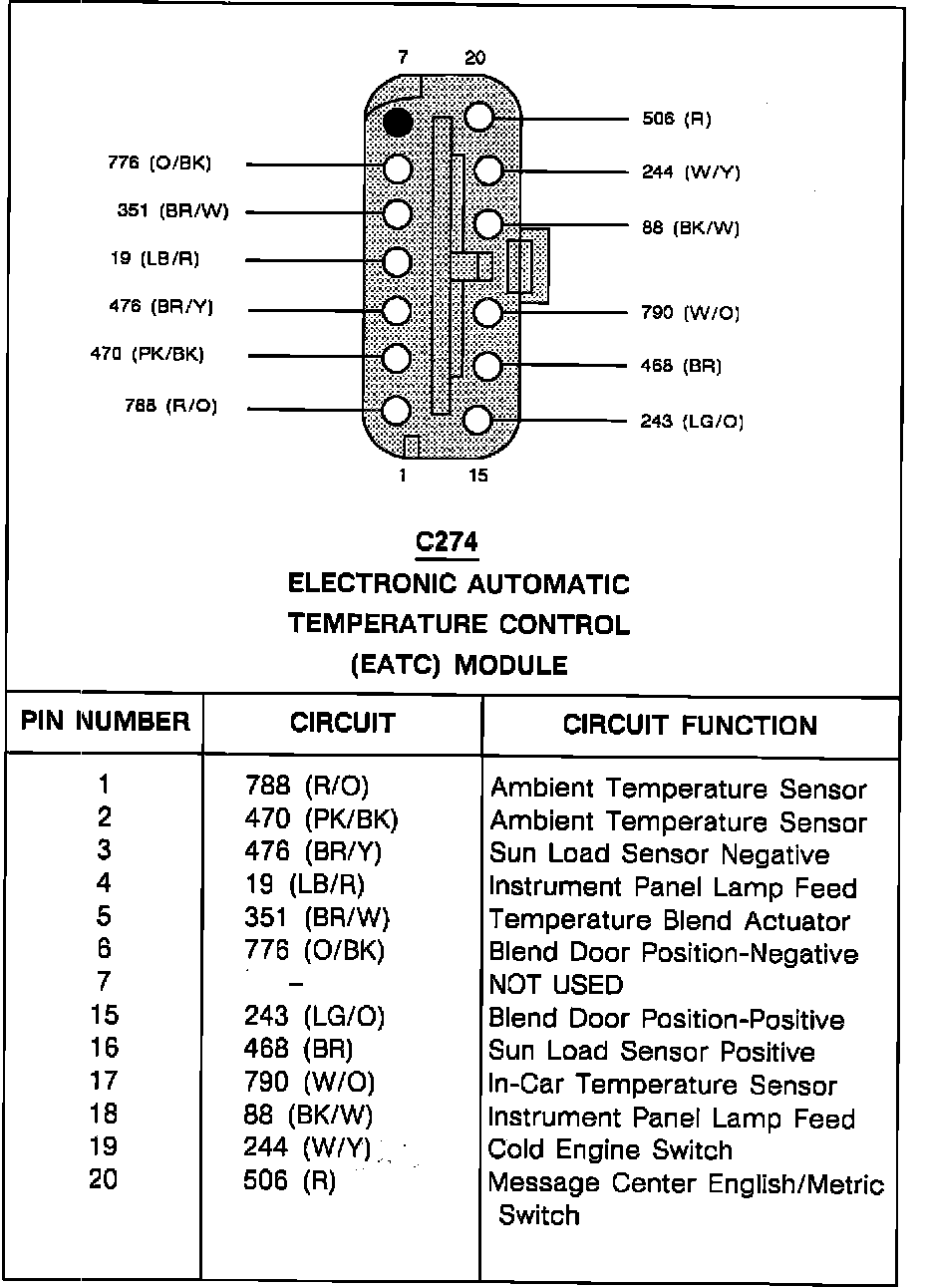

Electronic Automatic Temperature Control (EATC) Module:



Electronic Automatic Temperature Control (EATC) Module:
