Home >> Lincoln >> 1985 >> Mark VII V8-302 5.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> EGR Valve Position Sensor >> Locations

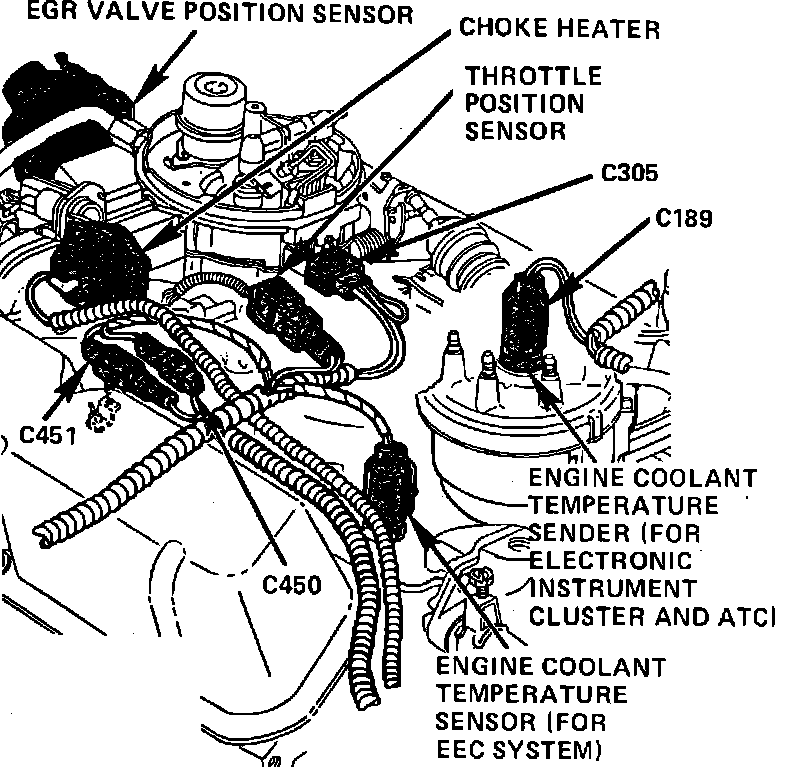

EGR Valve Position Sensor: Locations

Engine view:
