Seat Belt Warning: Overview

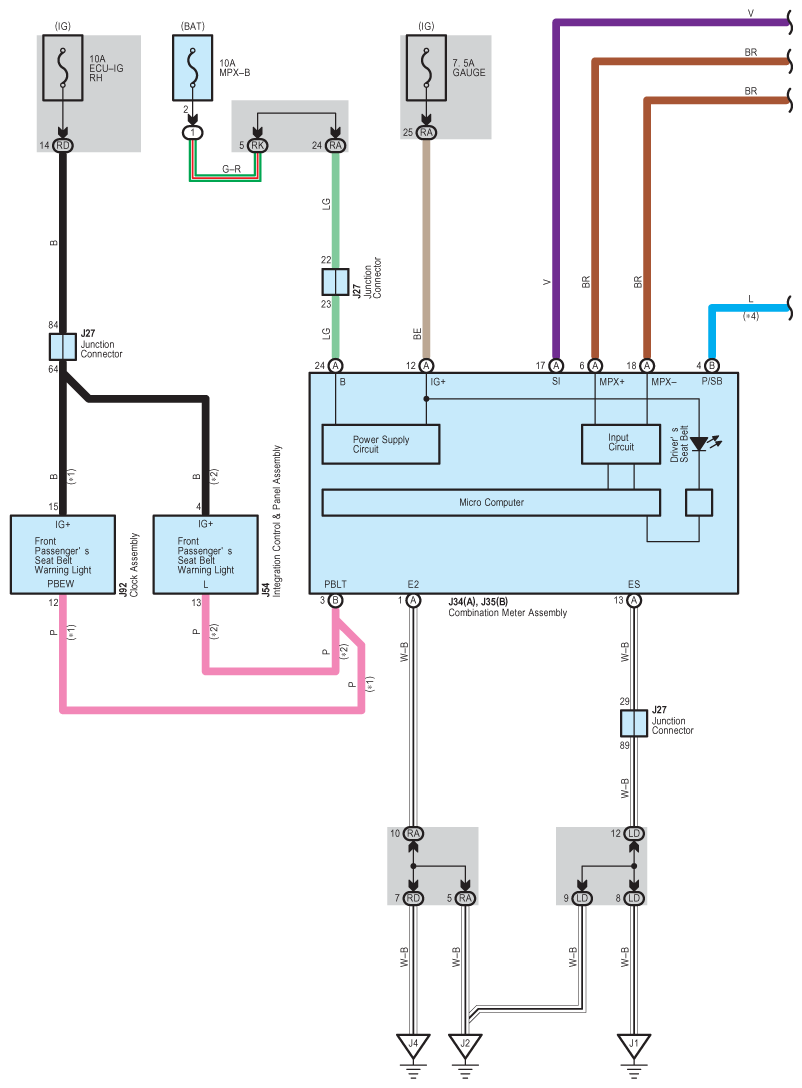

Fig 1: Seat Belt Warning Wiring Diagram (1 Of 2)
G09121380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

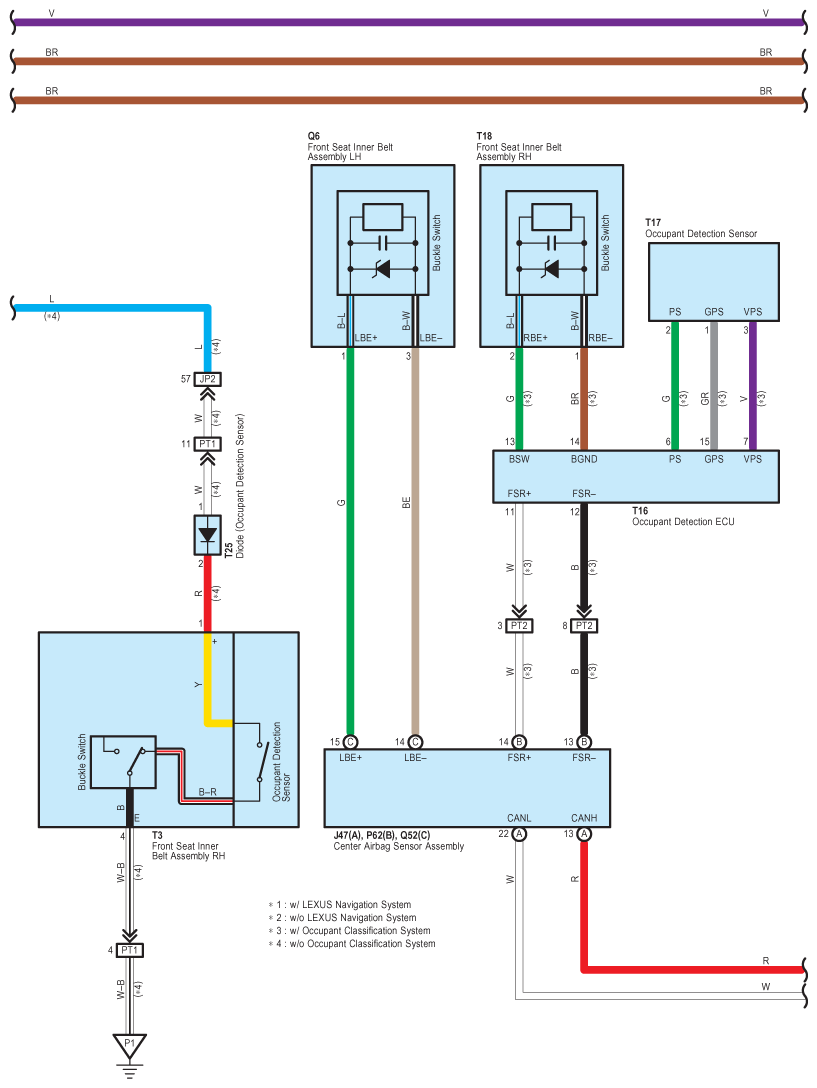

Fig 2: Seat Belt Warning Wiring Diagram (2 Of 2)
G09121381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
