Power Trunk Opener and Closer: Notes

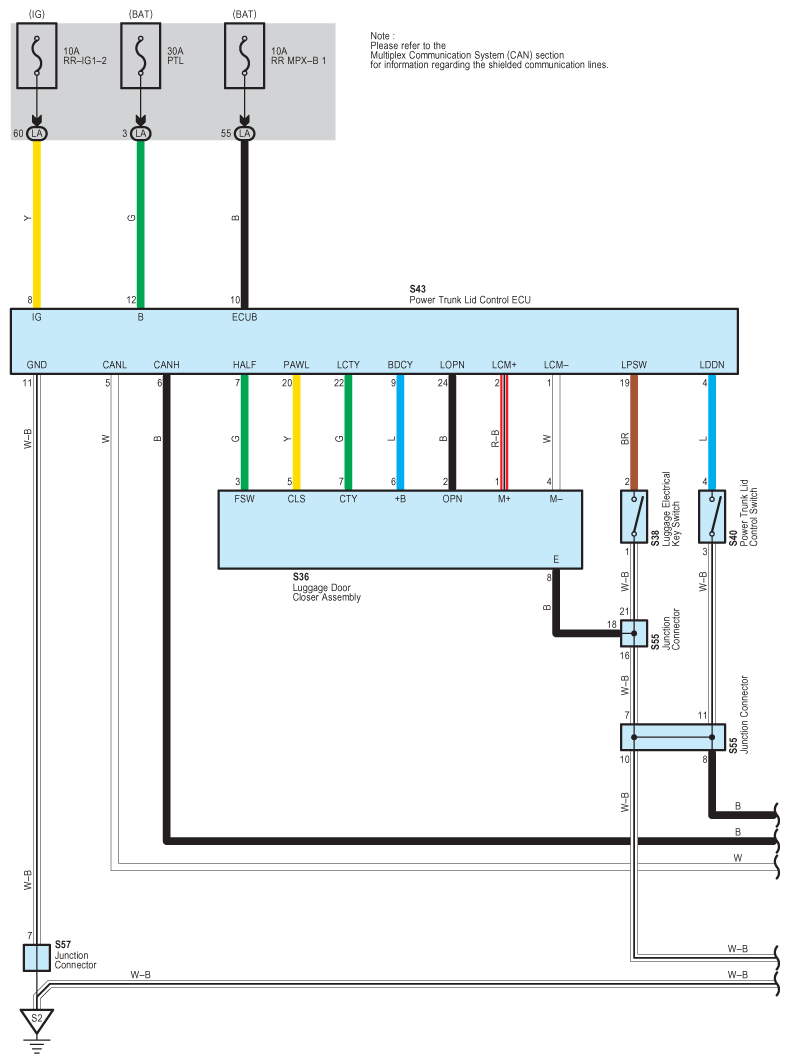

Fig 1: Power Trunk Opener And Closer - Wiring Diagram (1 Of 4)
G08936990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

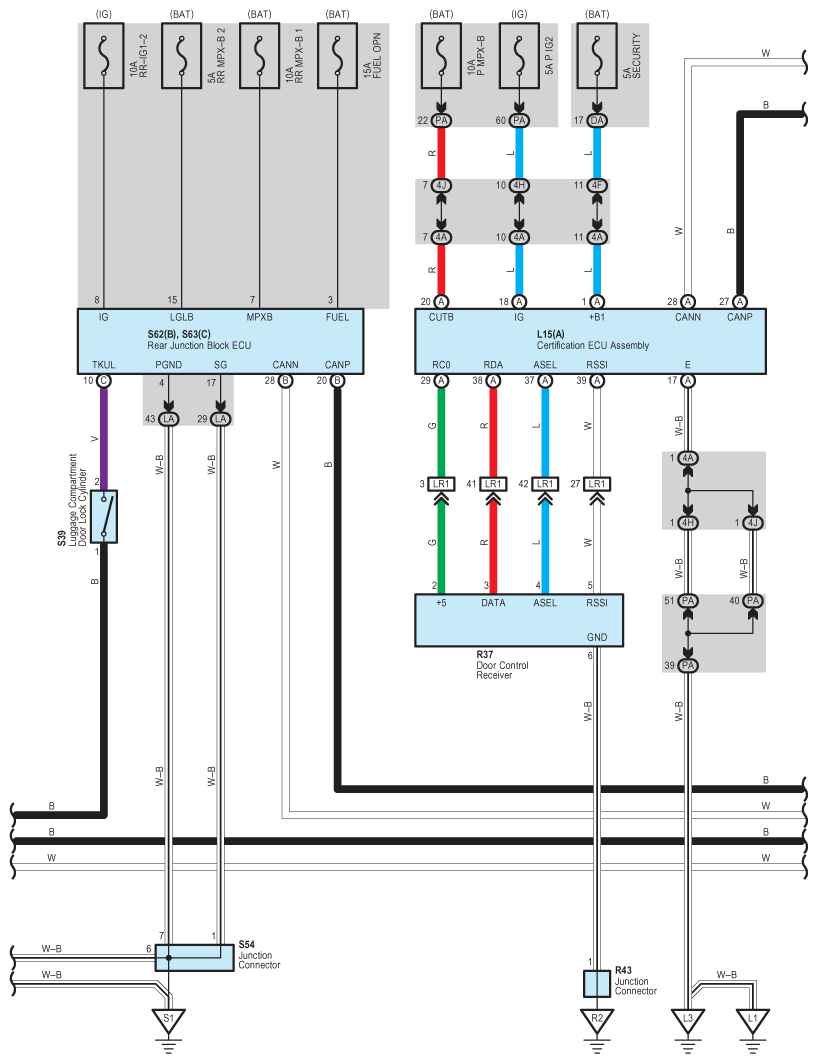

Fig 2: Power Trunk Opener And Closer - Wiring Diagram (2 Of 4)
G08936991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

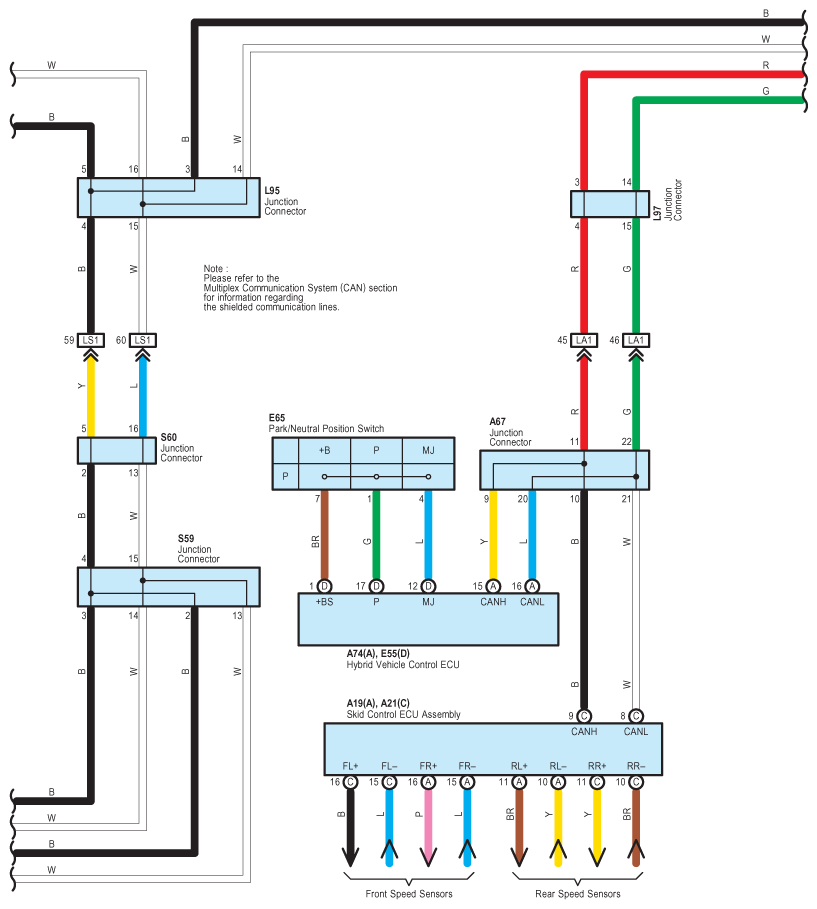

Fig 3: Power Trunk Opener And Closer - Wiring Diagram (3 Of 4)
G08936992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

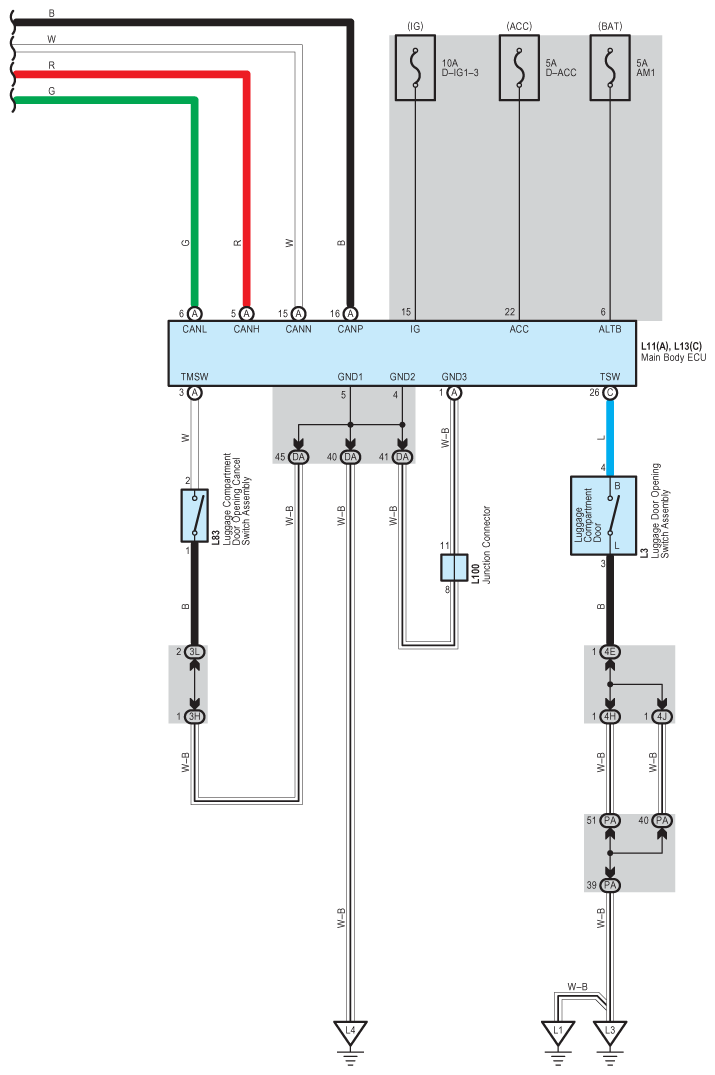

Fig 4: Power Trunk Opener And Closer - Wiring Diagram (4 Of 4)
G08936993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
