Service Data

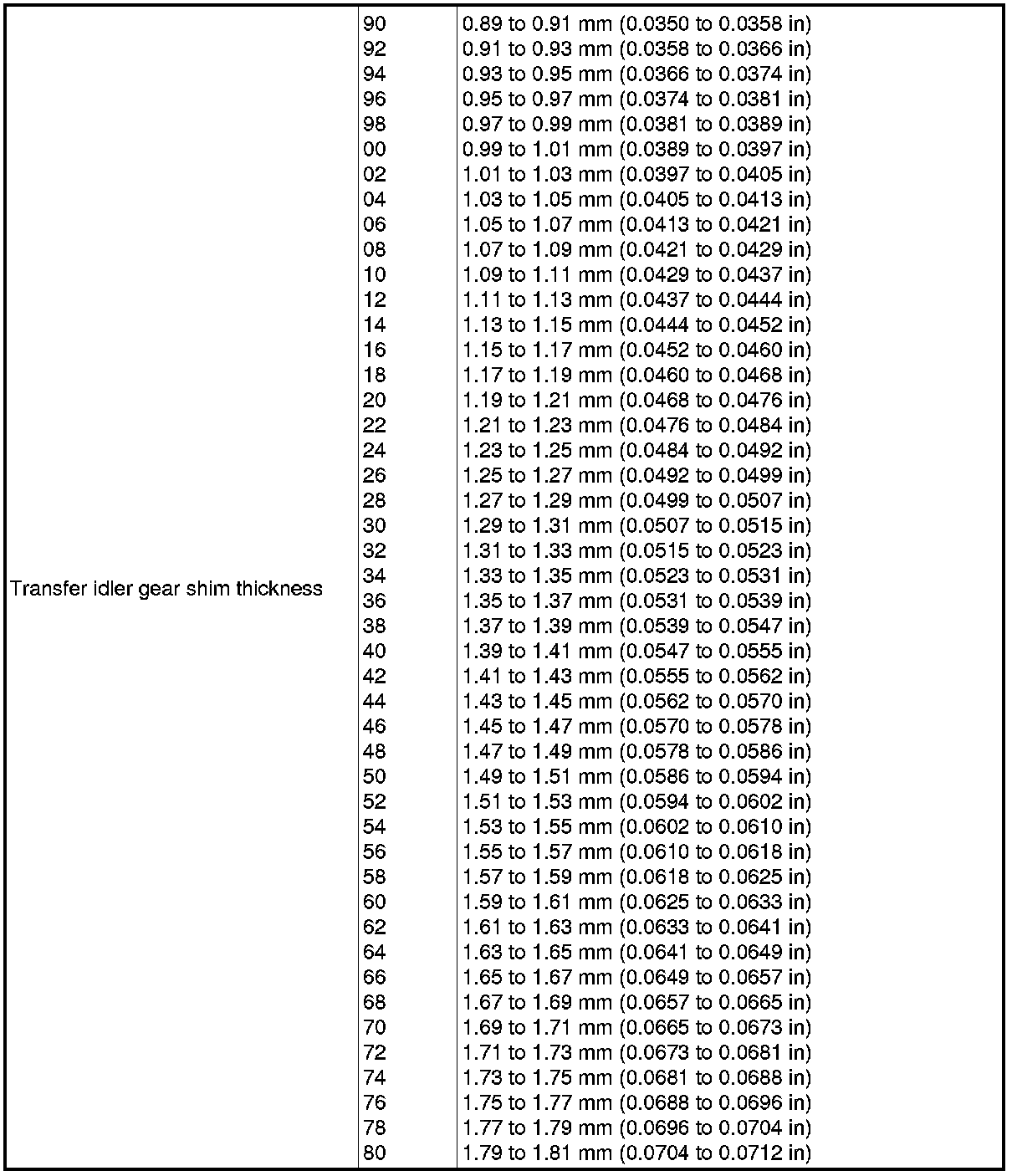

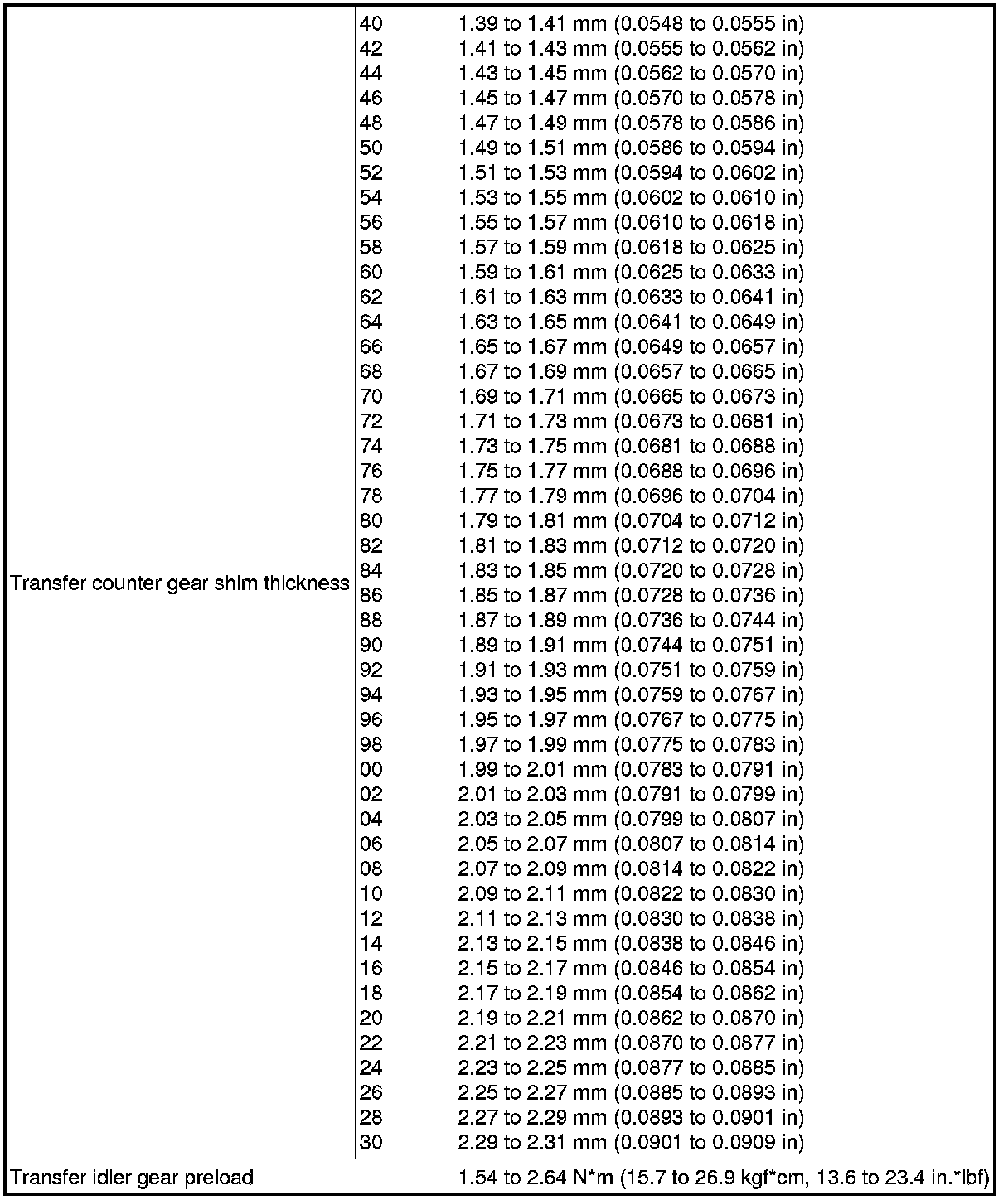

SERVICE SPECIFICATIONS: LF1A TRANSFER: SERVICE DATA

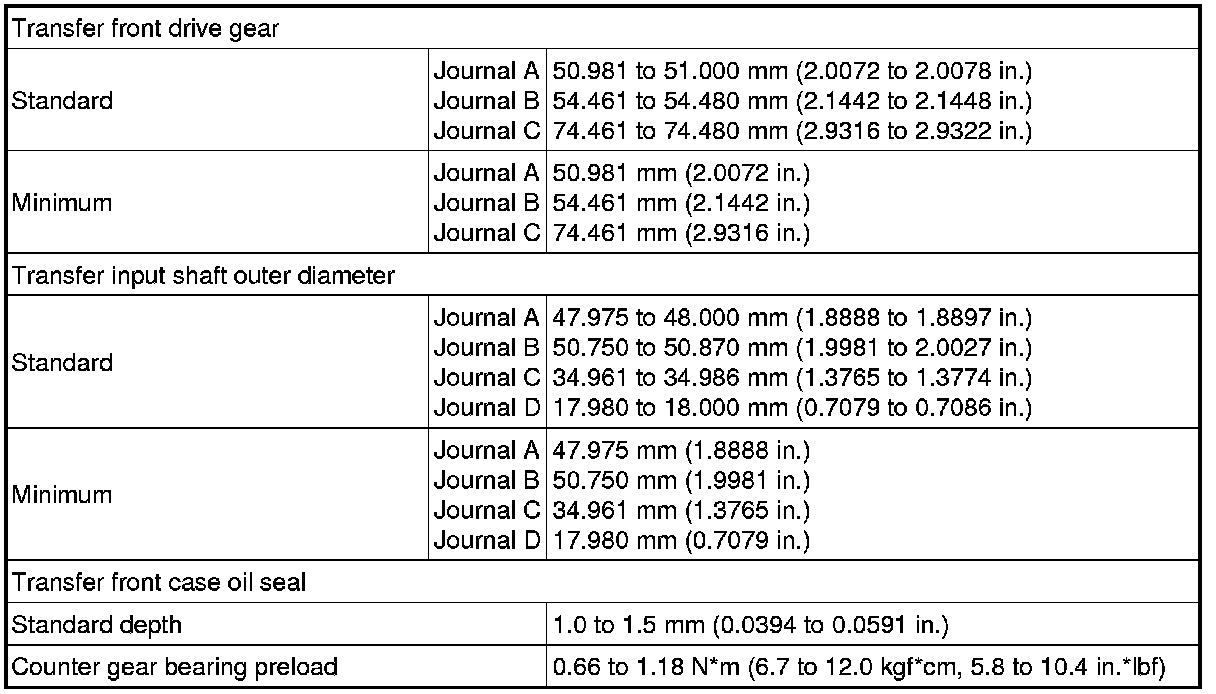

Transfer Case Front Oil Seal





Transfer Case Rear Oil Seal

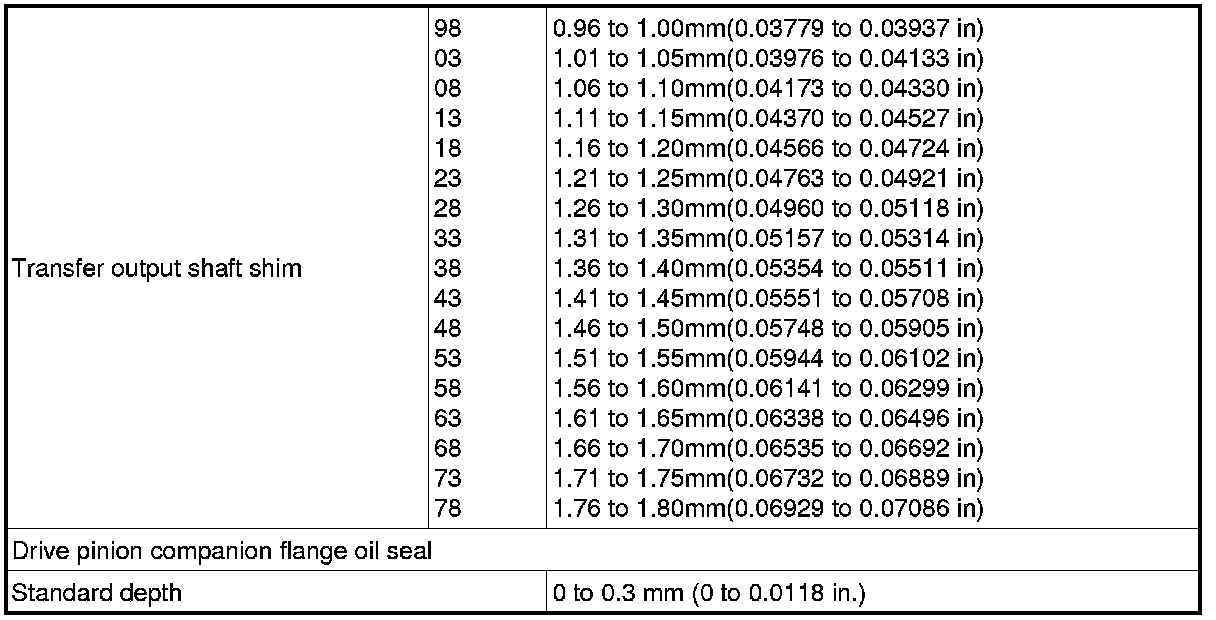

Transfer Assembly
