Torque Specifications

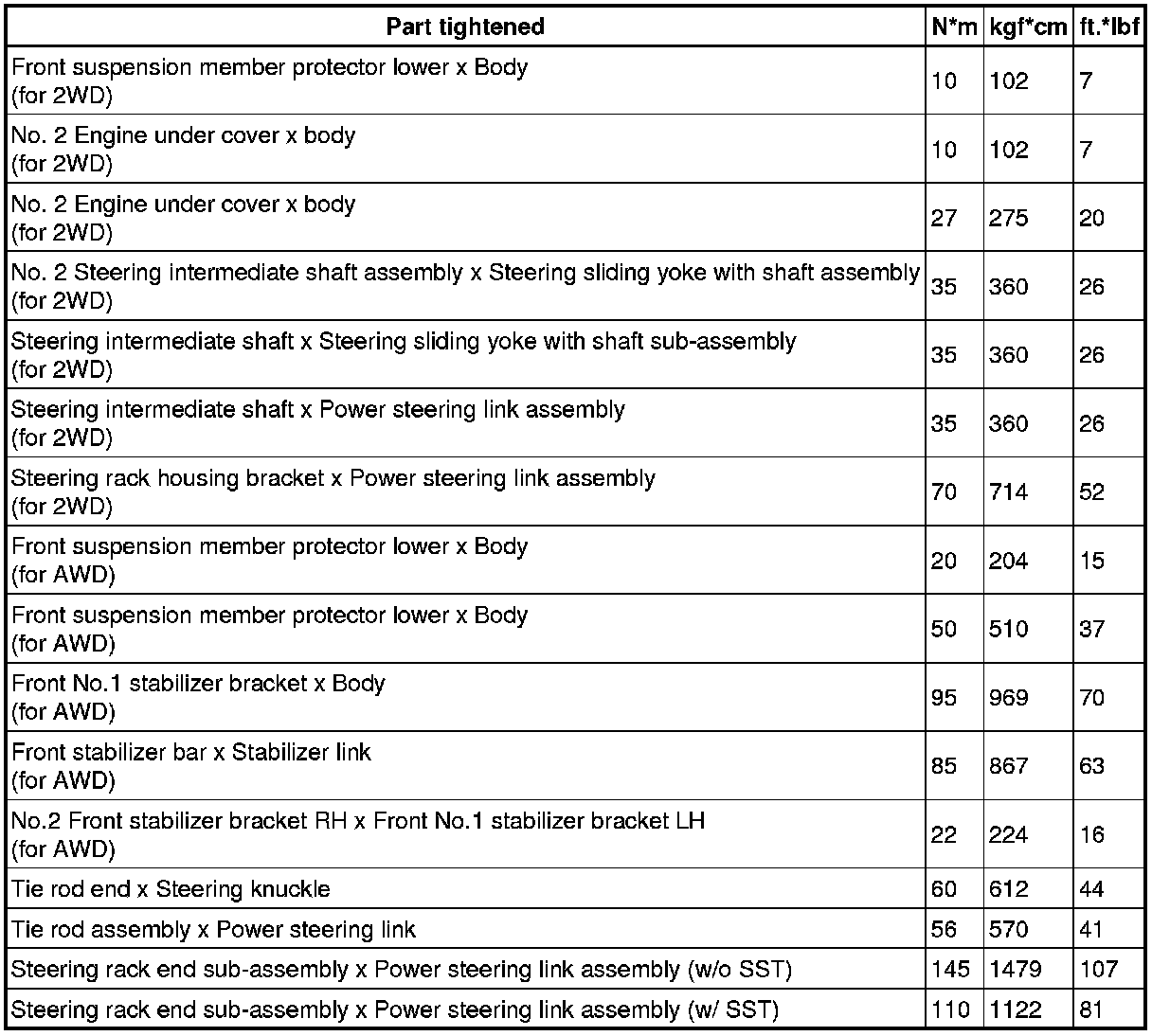

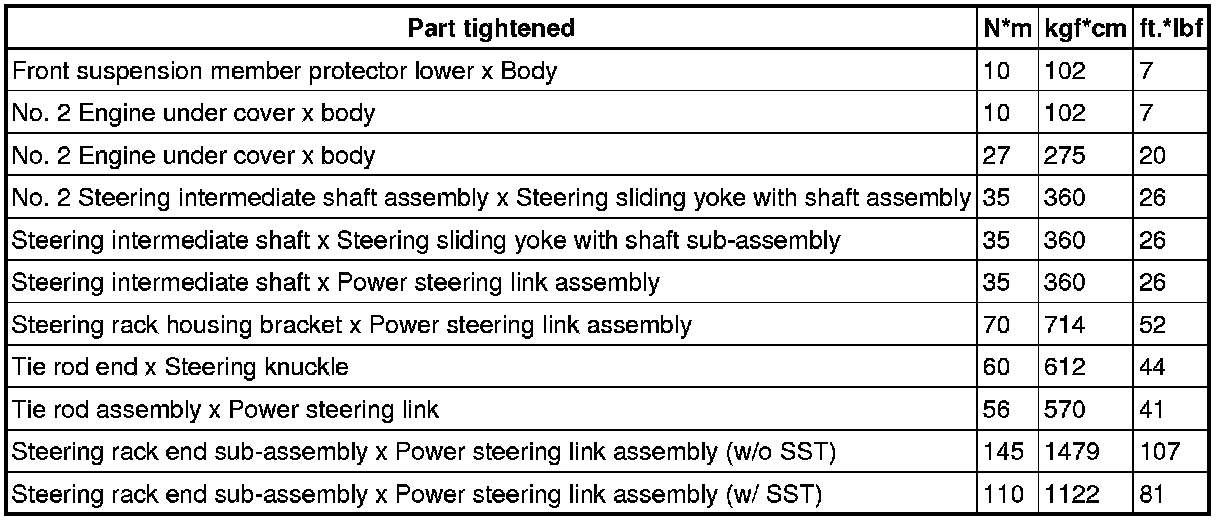

SERVICE SPECIFICATIONS: POWER STEERING: TORQUE SPECIFICATIONS

STEERING GEAR (w/o VGRS)





STEERING GEAR (w/ VGRS)





Power steering ECU





DC-DC Converter
