Torque Specifications

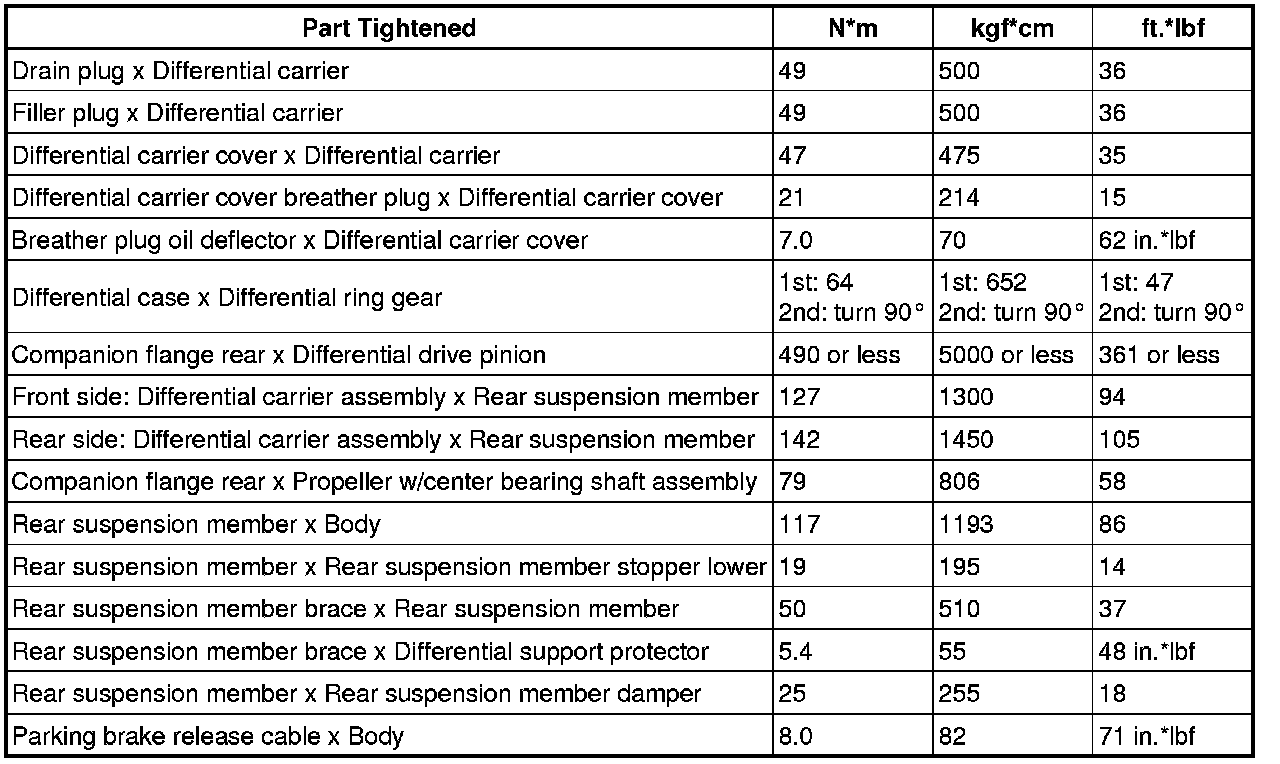

SERVICE SPECIFICATIONS: DIFFERENTIAL: TORQUE SPECIFICATIONS

Front Differential Assembly





Rear Differential Assembly
