Mechanical Specifications





SERVICE SPECIFICATIONS: AIR CONDITIONING: TORQUE SPECIFICATIONS

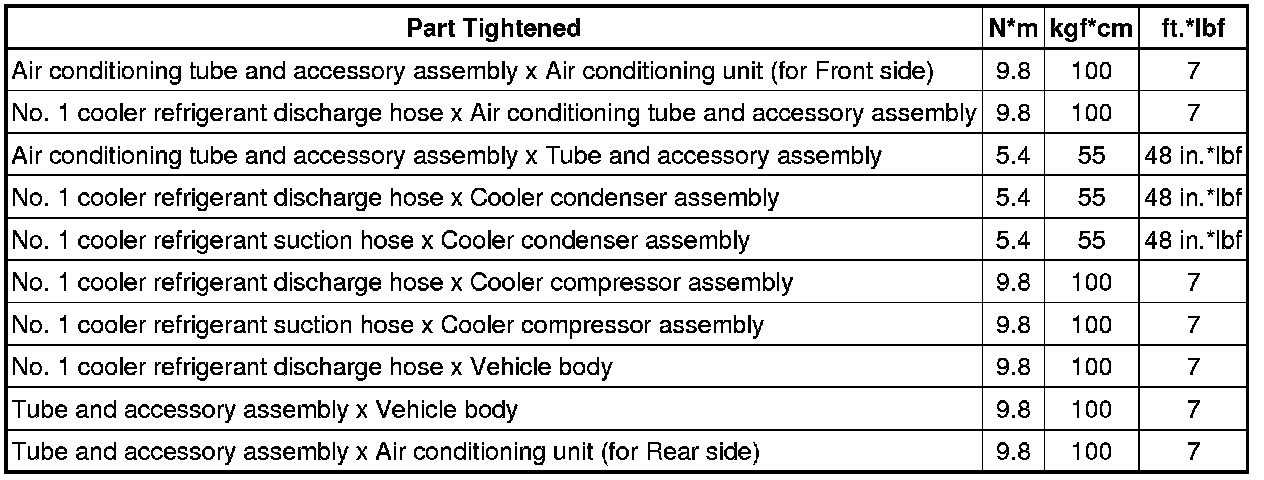

REFRIGERANT LINE

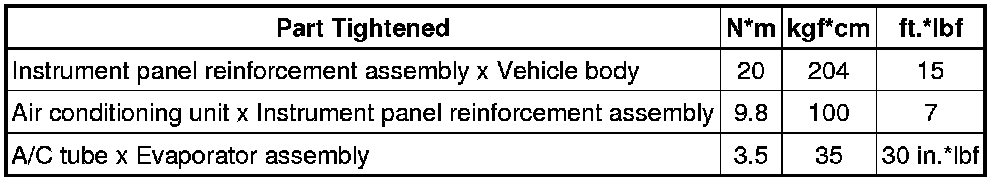

AIR CONDITIONING UNIT (for Front Side)





AIR CONDITIONING UNIT (for Rear Side)

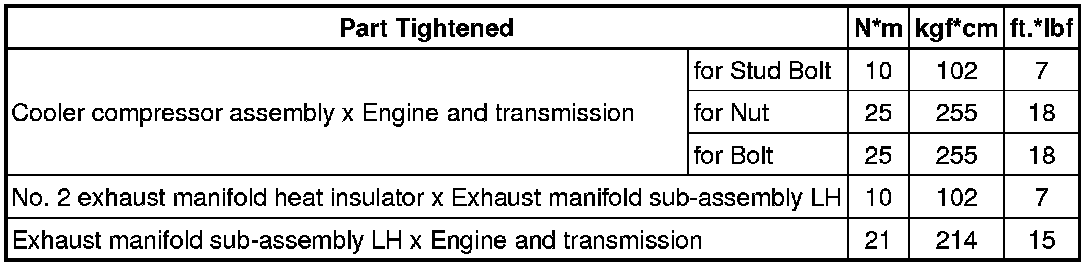

COMPRESSOR (for AWD)

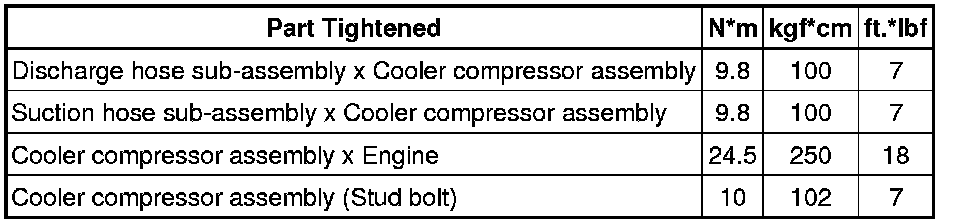

COMPRESSOR AND MAGNETIC CLUTCH (for 2WD)

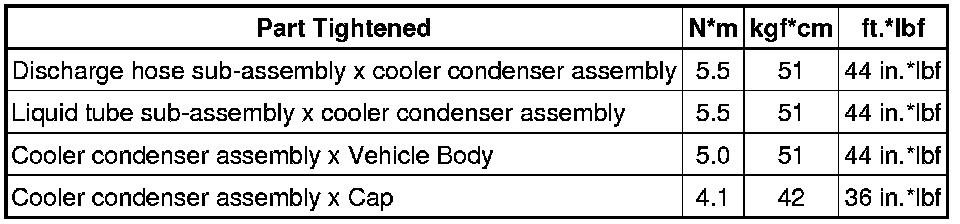

CONDENSER
