Luggage Compartment Door Opener: Notes

Fig 1: Luggage Compartment Door Opener - Wiring Diagram (1 Of 2)
G08939809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

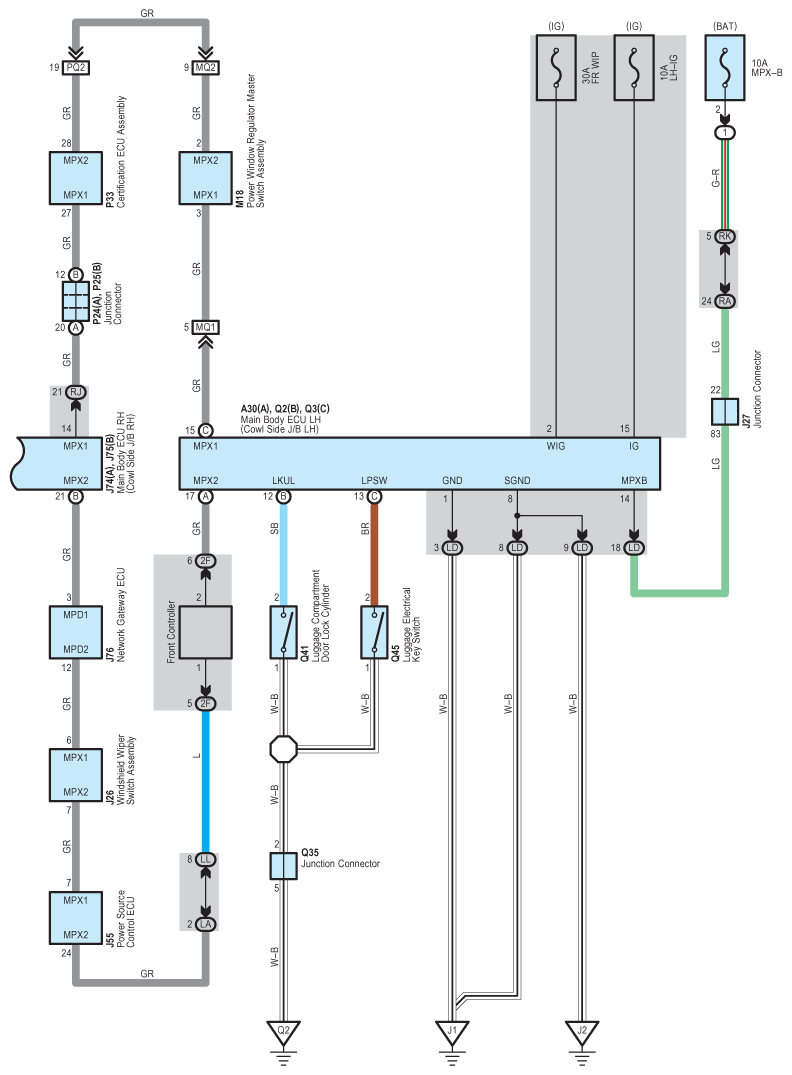

Fig 2: Luggage Compartment Door Opener - Wiring Diagram (2 Of 2)
G08939810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
