Home >> Lexus >> 2012 >> IS F V8-5.0L (2UR-GSE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Body and Frame >> System Specifications >> Components

Components

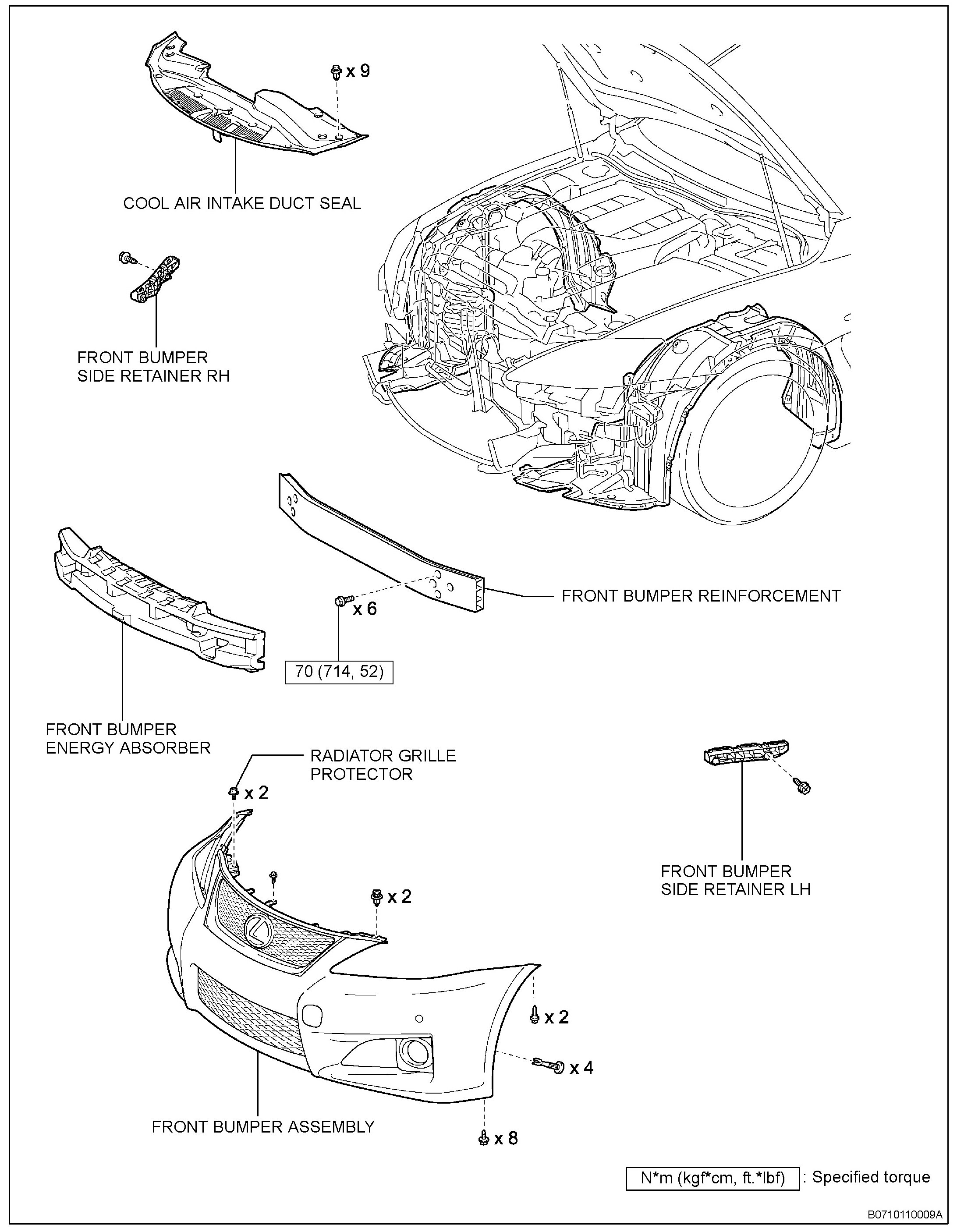

Front Bumper:

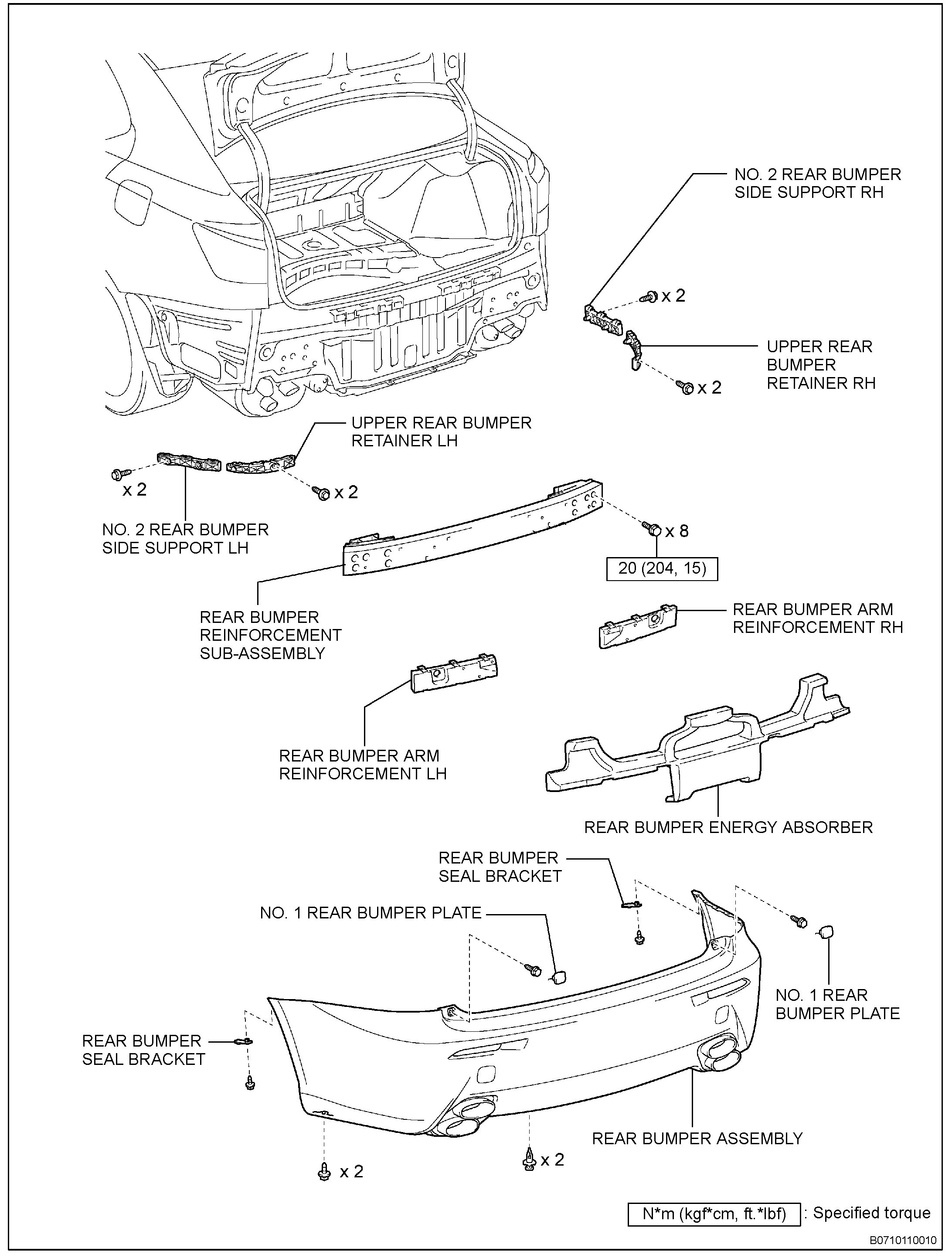

Rear Bumper:

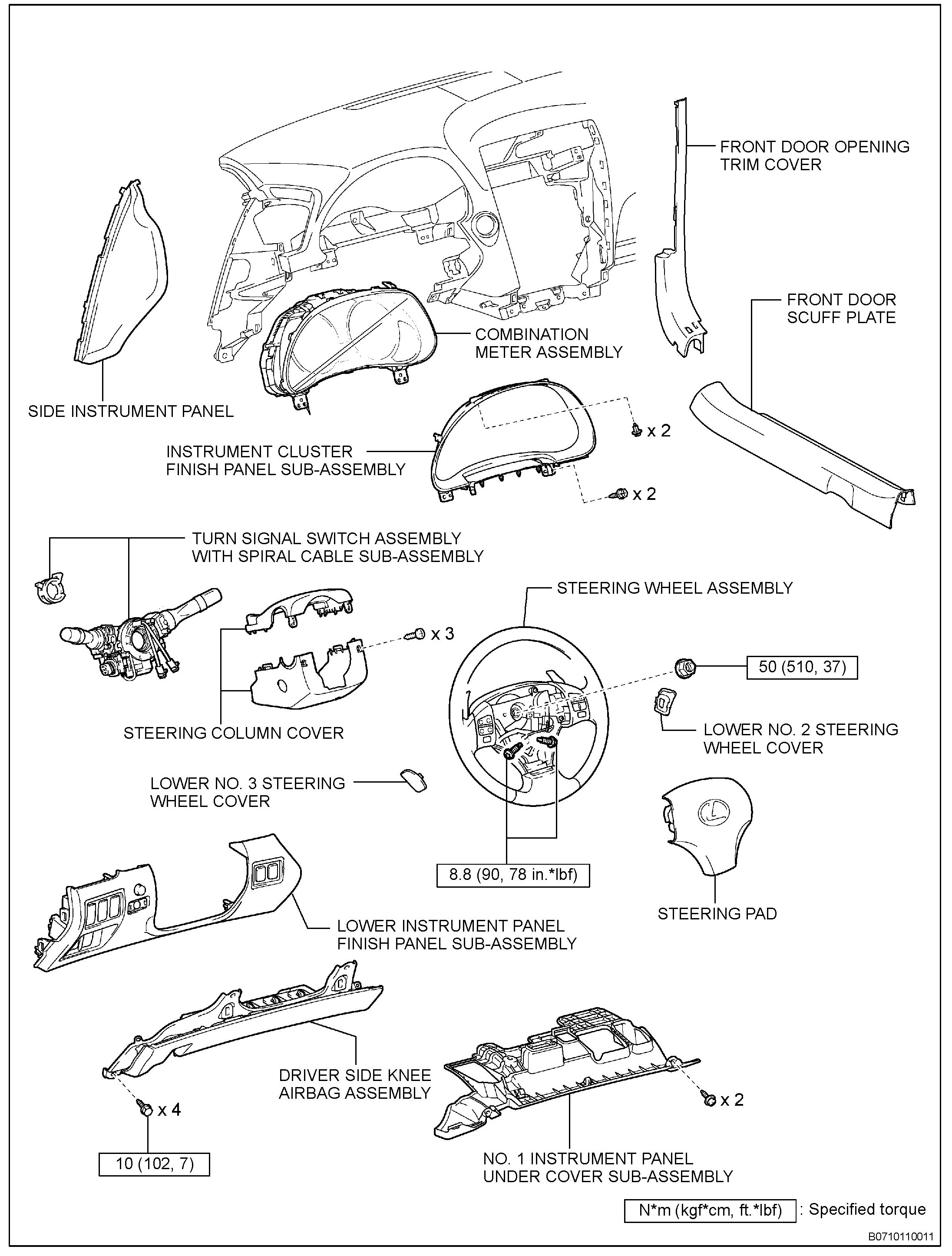

Instrument Panel:

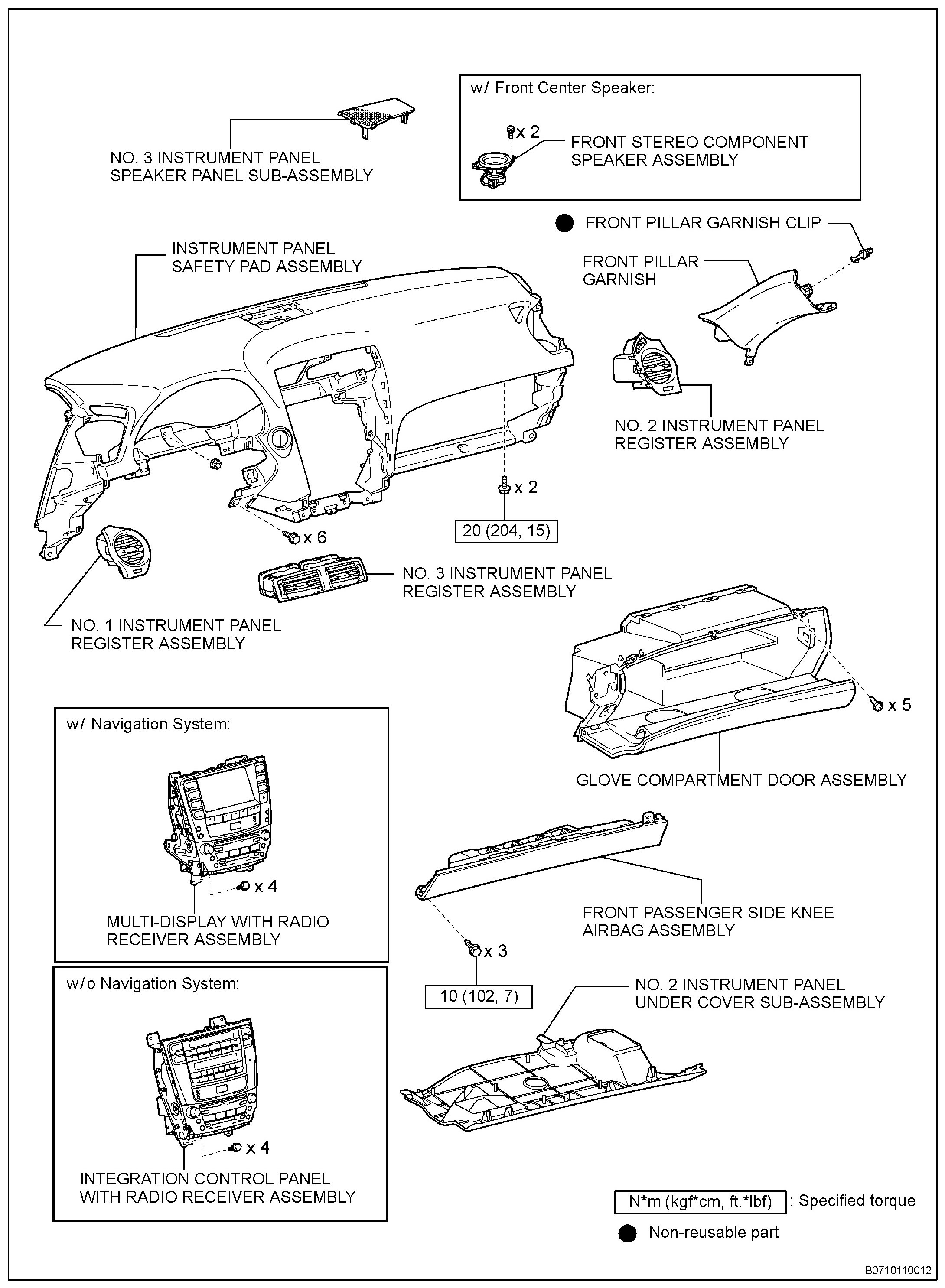

Instrument Panel:

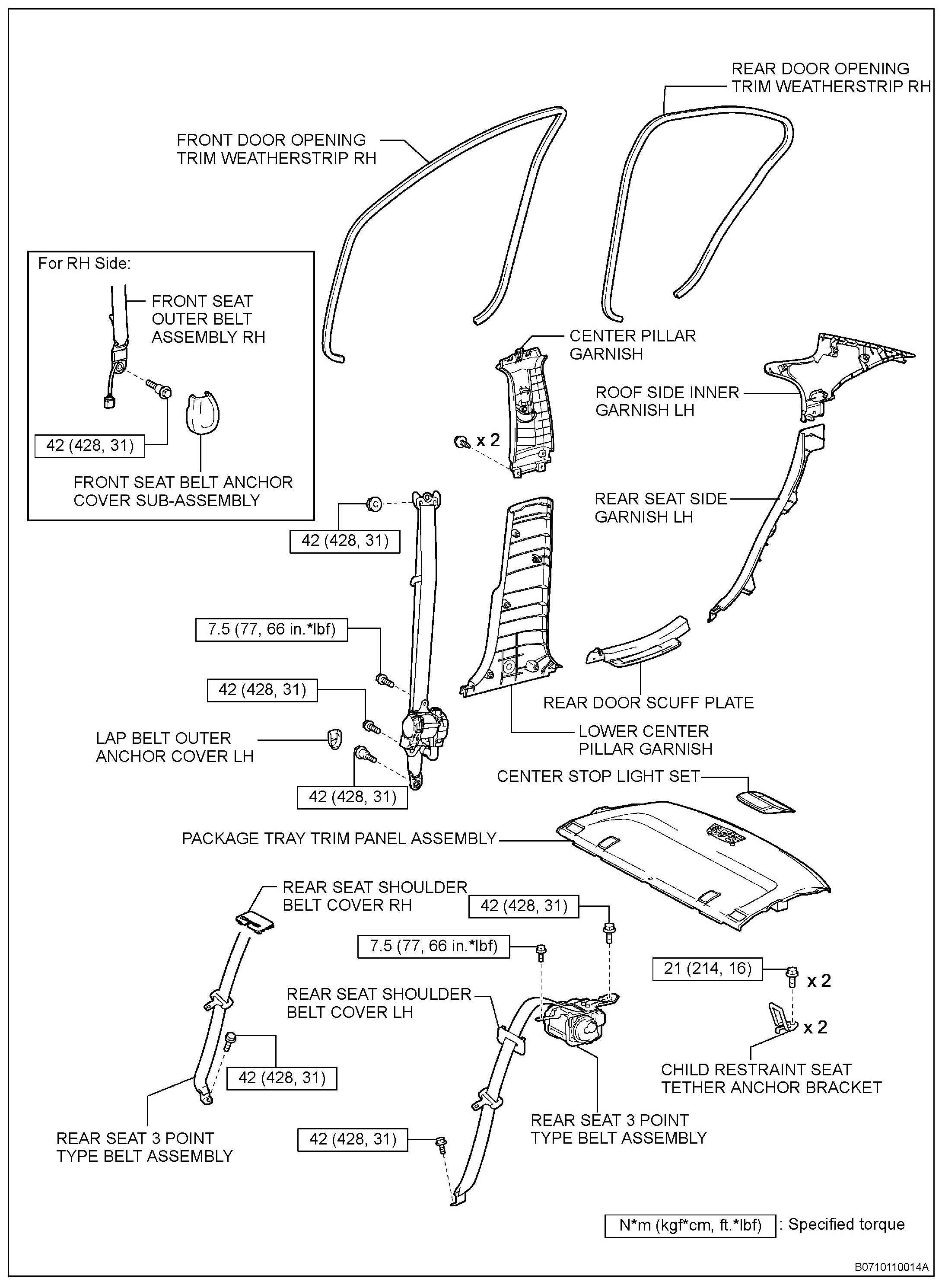

Interior Trim:

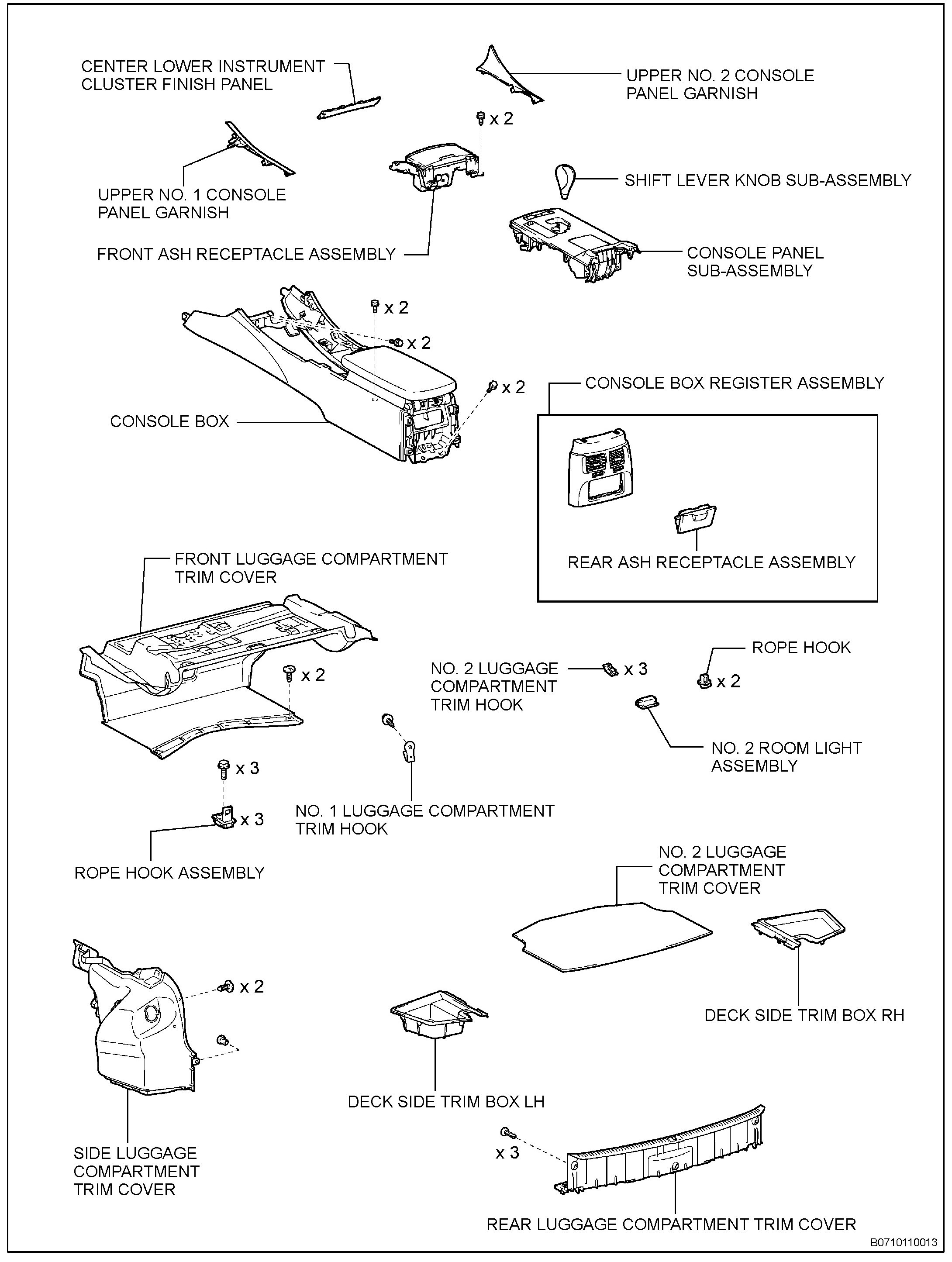

Interior Trim:

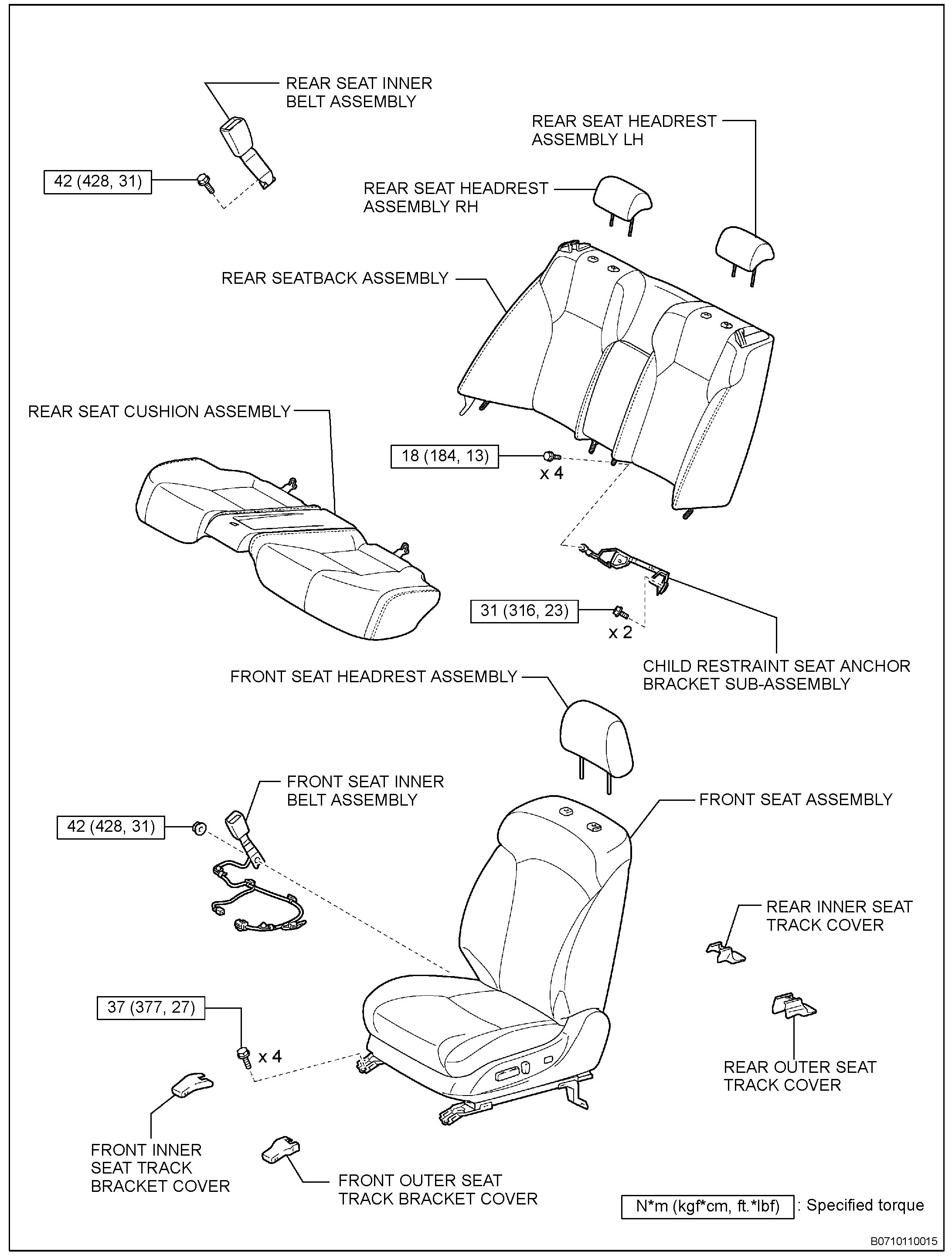

Seat:
