Torque Specifications

SPECIFICATIONS: AA80E AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS

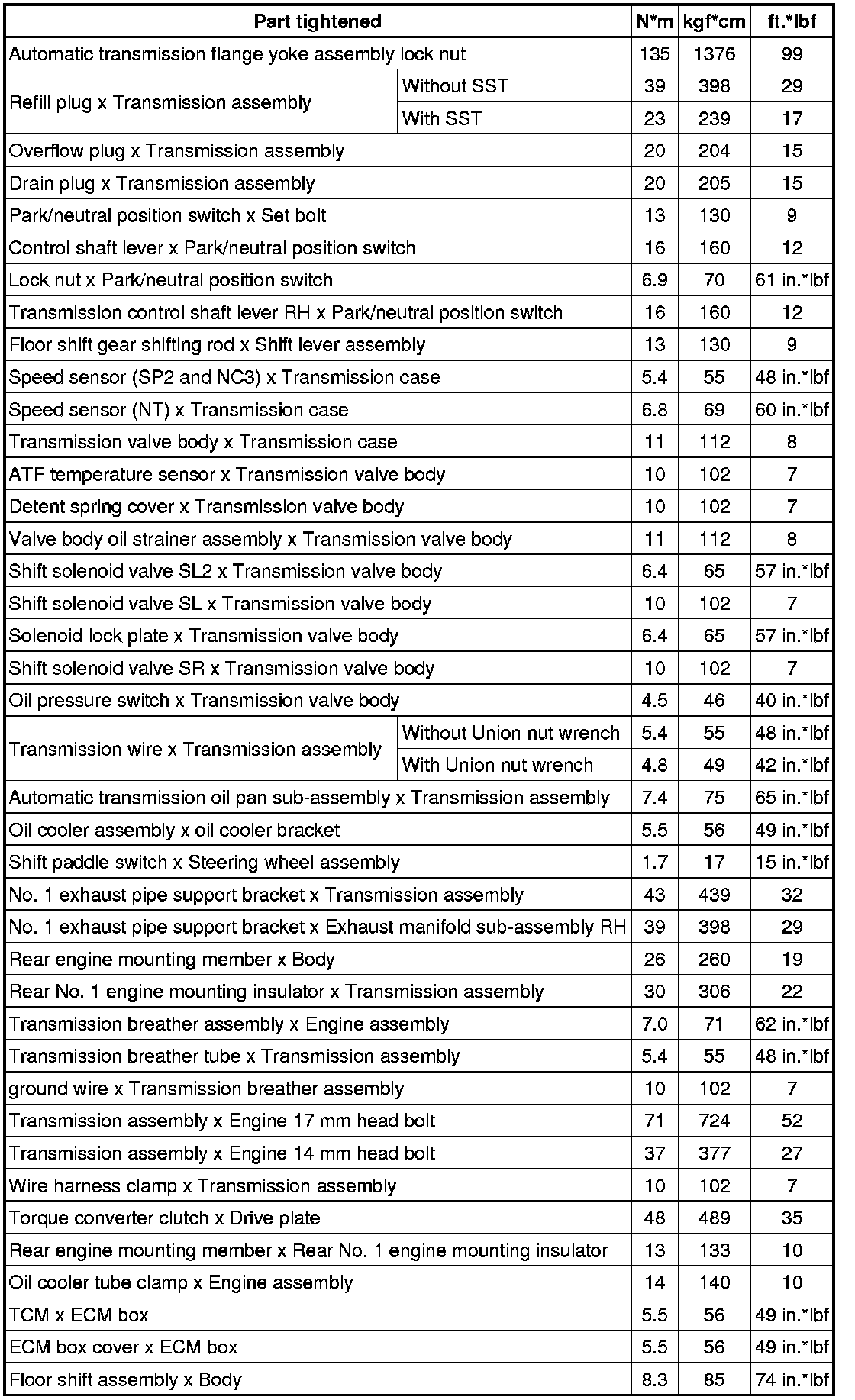

AUTOMATIC TRANSMISSION ASSEMBLY

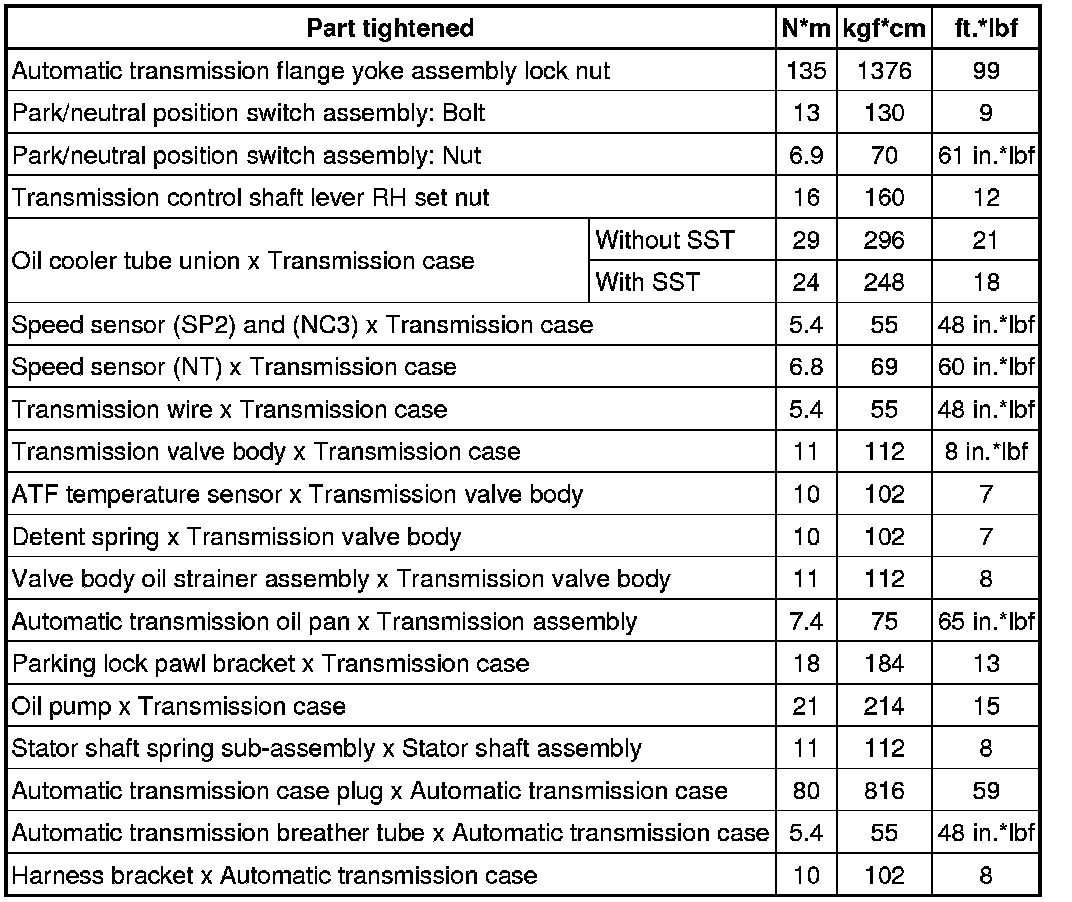

AUTOMATIC TRANSMISSION UNIT
