Headlamp Alignment Control Module: Locations

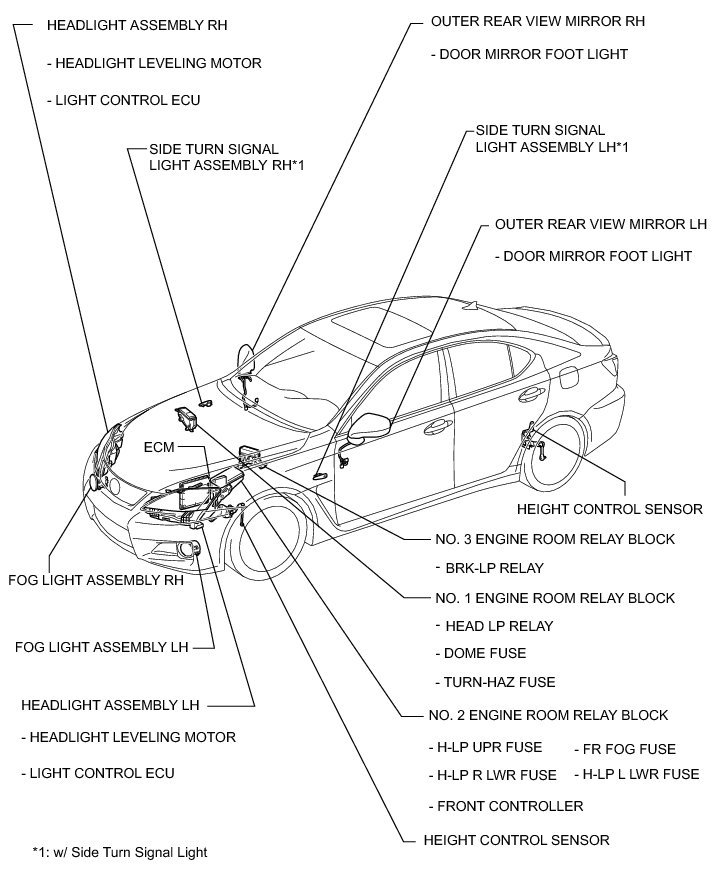

LIGHTING (EXT): LIGHTING SYSTEM: PARTS LOCATION

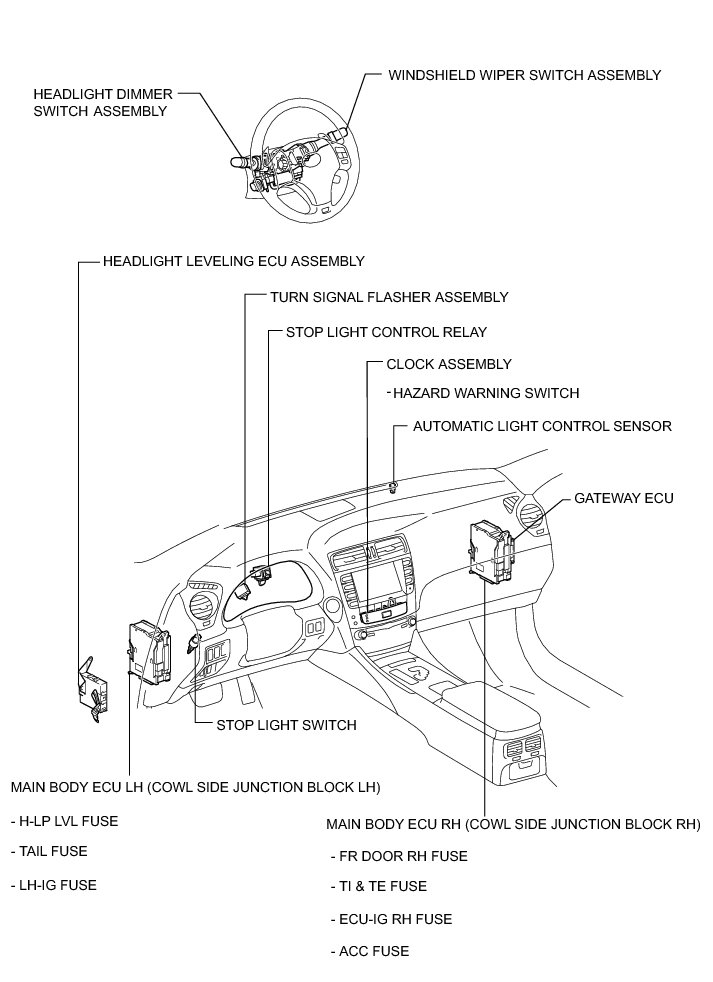

Instrument Panel:
