Home >> Lexus >> 2012 >> IS F V8-5.0L (2UR-GSE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

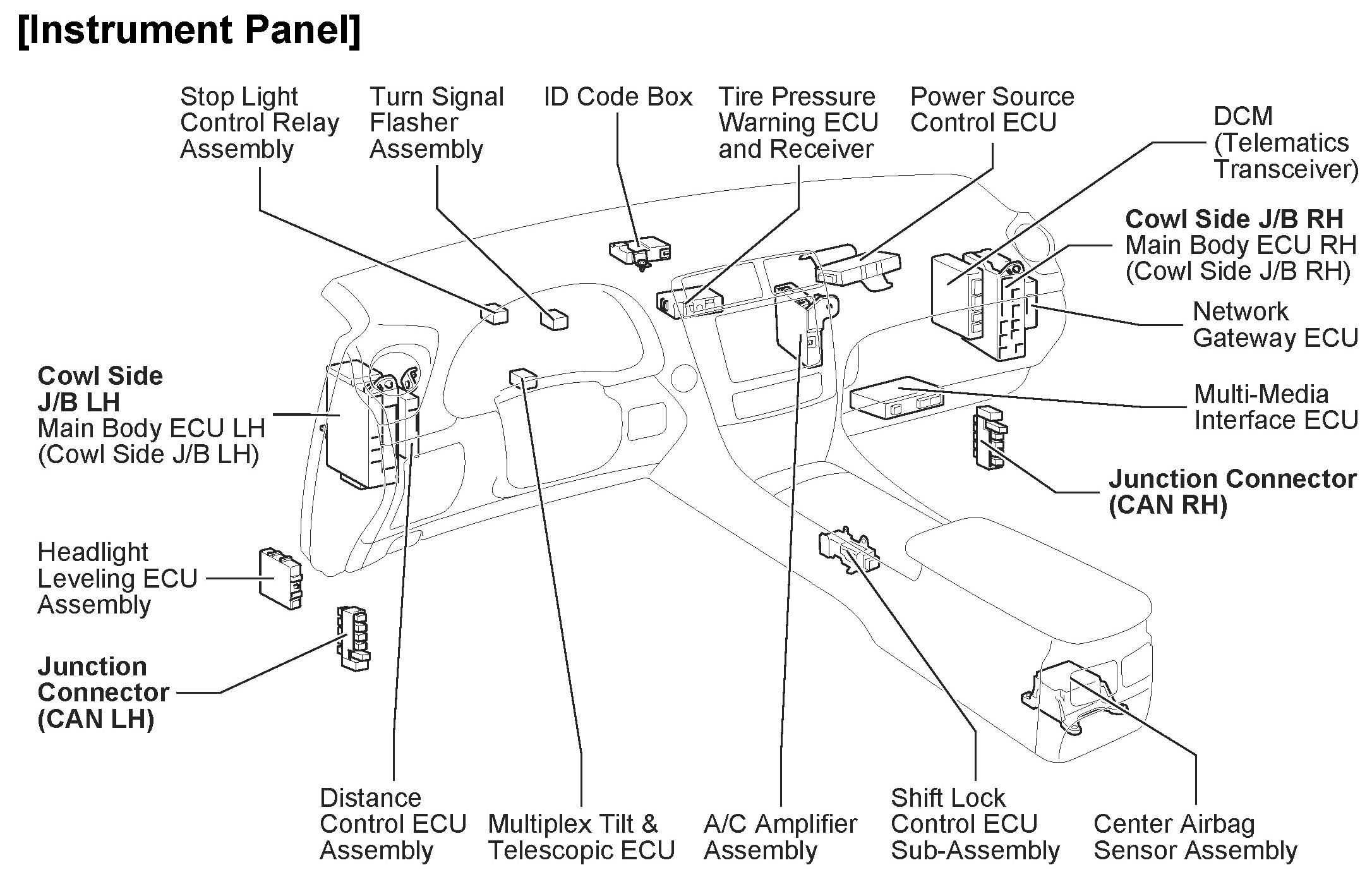

Instrument Panel:
