Installation

DOOR LOCK: WIRELESS DOOR LOCK BUZZER: INSTALLATION

1. INSTALL WIRELESS DOOR LOCK BUZZER

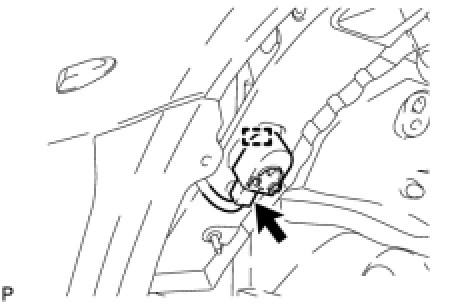

(a) Connect the connector.





(b) Install the clamp and the wireless door lock buzzer.

2. INSTALL FRONT FENDER LINER RH

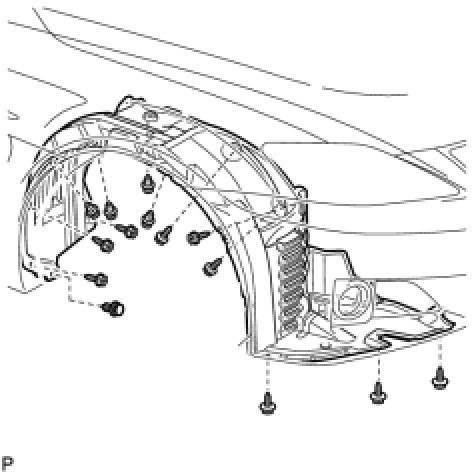

(a) Install the front fender liner RH with the 5 clips and 9 screws.





(b) Install the 2 hold clips and 2 pins.





3. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

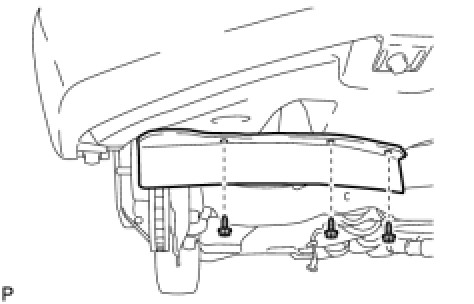

(a) Install the front wheel opening extension pad RH with the 3 screws.





4. INSTALL FRONT WHEEL RH
