Installation

ENGINE IMMOBILISER: ID CODE BOX: INSTALLATION

1. INSTALL ID CODE BOX (IMMOBILISER CODE ECU)

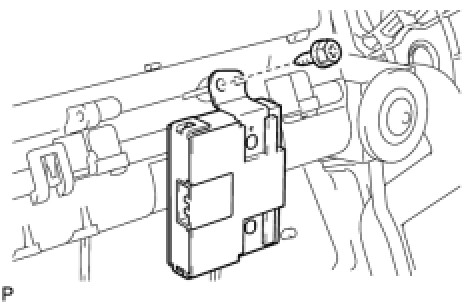

(a) Install the ID code box (immobiliser code ECU) with the screw.





2. INSTALL AIR CONDITIONER UNIT ASSEMBLY

Installation

3. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY

Installation

4. REGISTER ECU COMMUNICATION ID

NOTICE:
When replacing the ID code box (immobiliser code ECU), perform initialization Engine Immobilizer System.

5. REGISTER KEY

NOTICE:
When replacing the ID code box (immobiliser code ECU), perform initialization Engine Immobilizer System.
