Torque Specifications





SPECIFICATIONS: AXLE AND DIFFERENTIAL: TORQUE SPECIFICATIONS

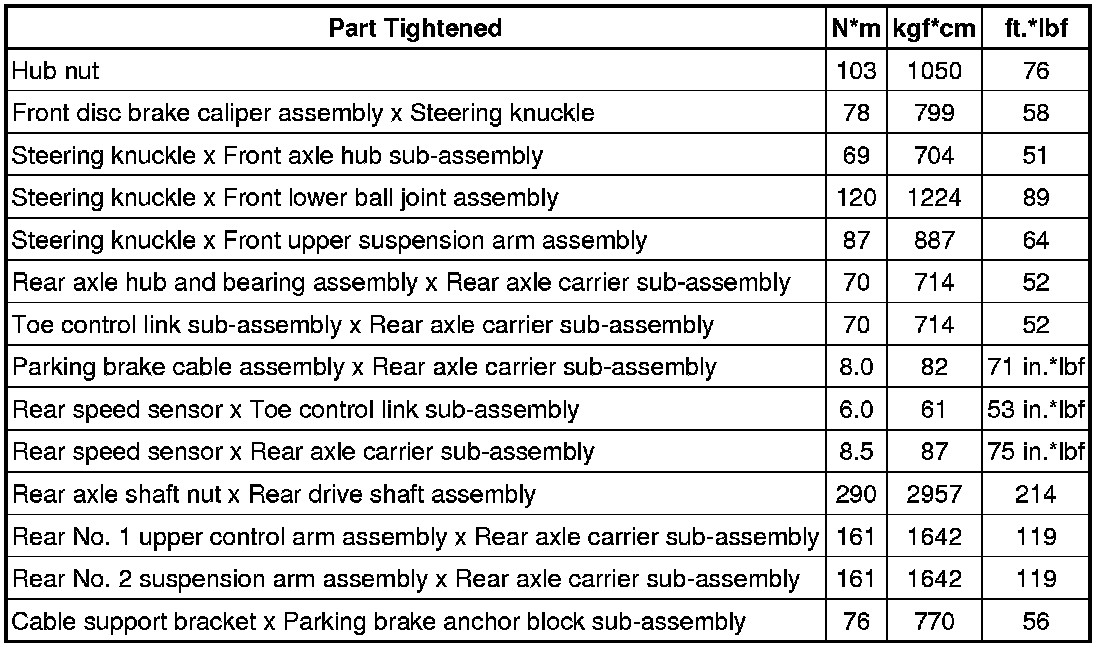

Axle

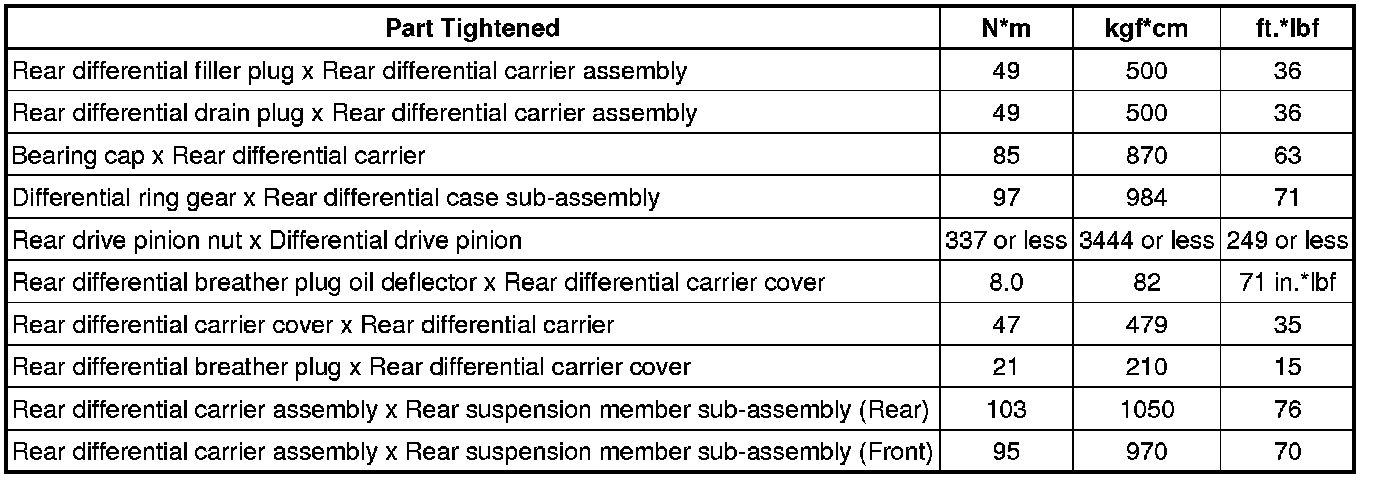

Differential (for 2GR-FSE)

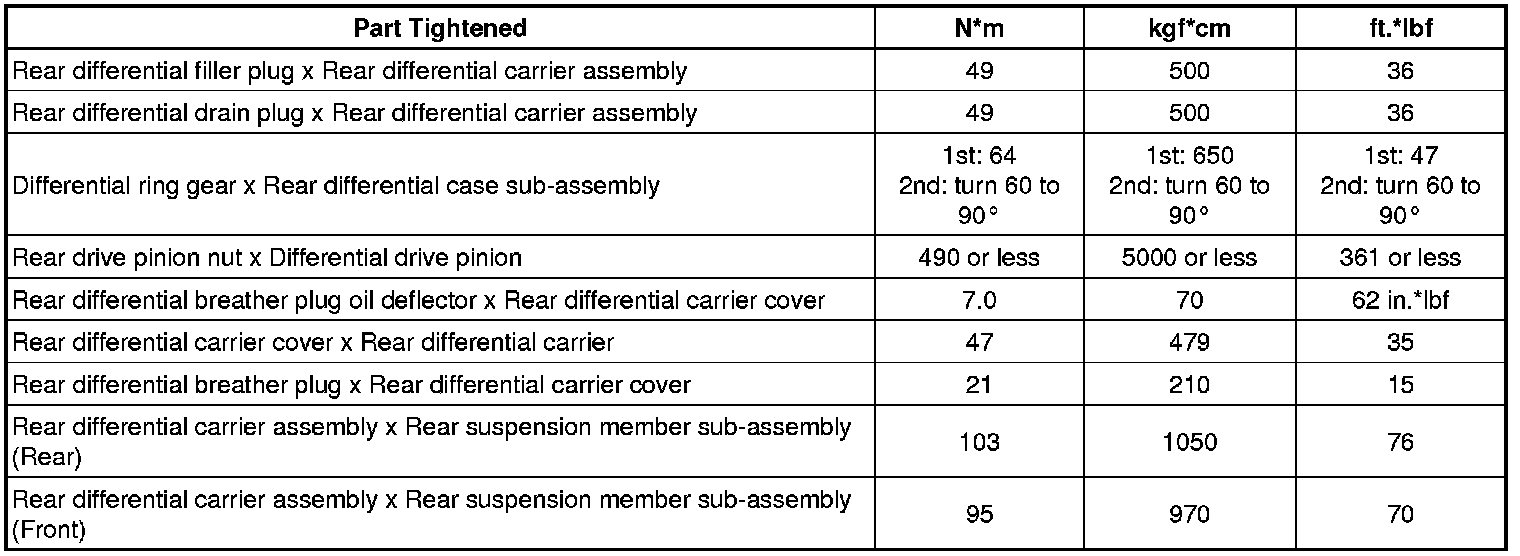

Differential (for 4GR-FSE)
