Service Data





SPECIFICATIONS: AXLE AND DIFFERENTIAL: SERVICE DATA

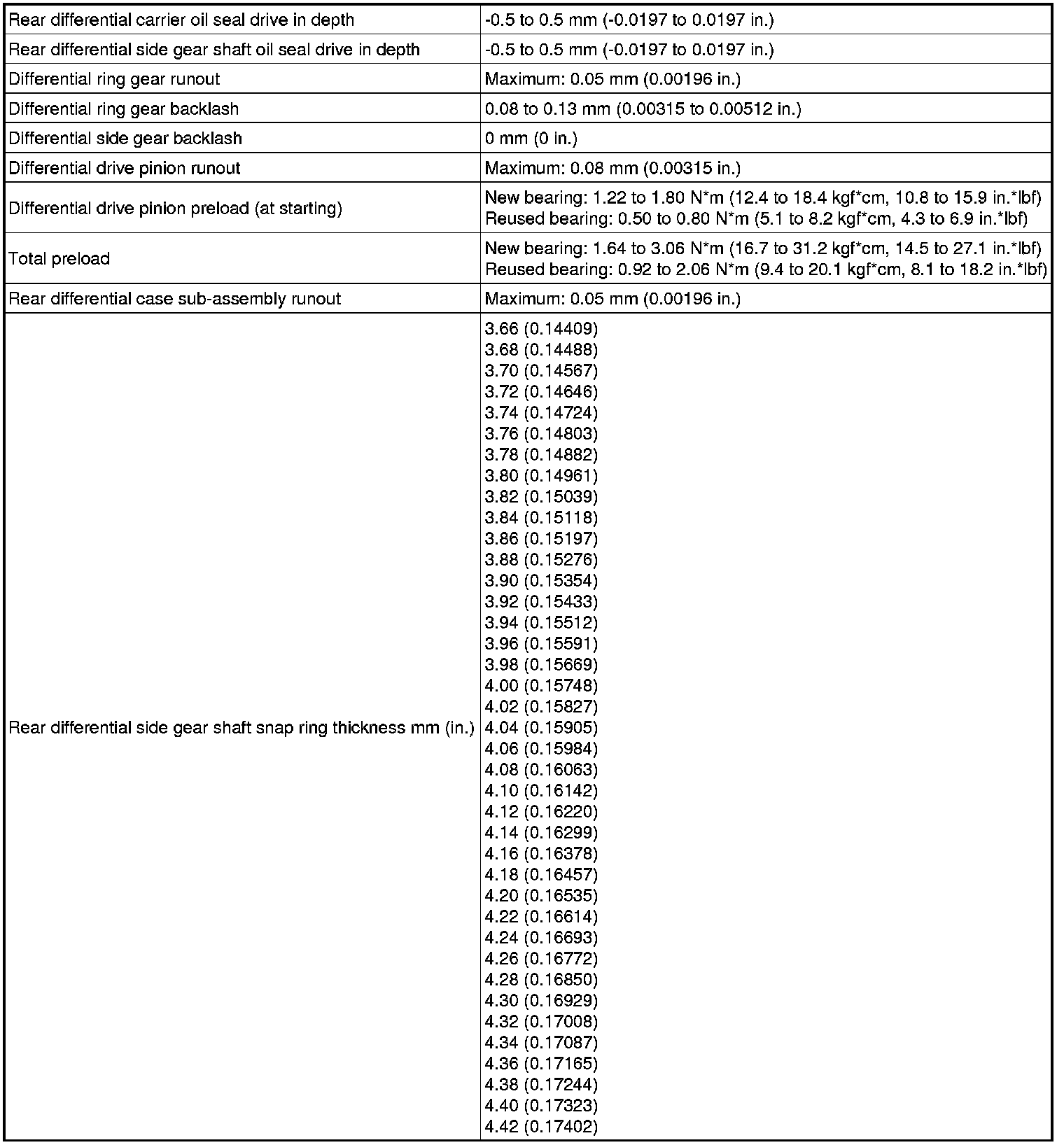

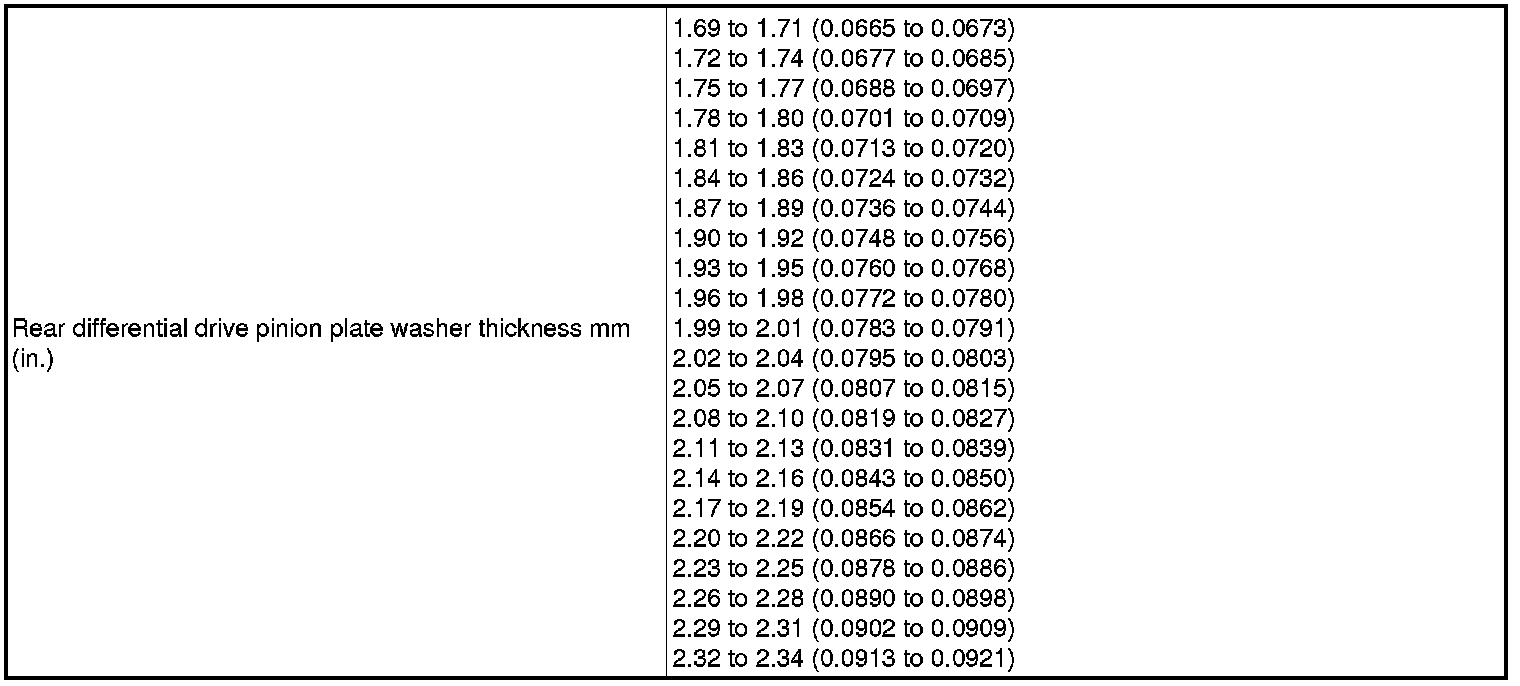

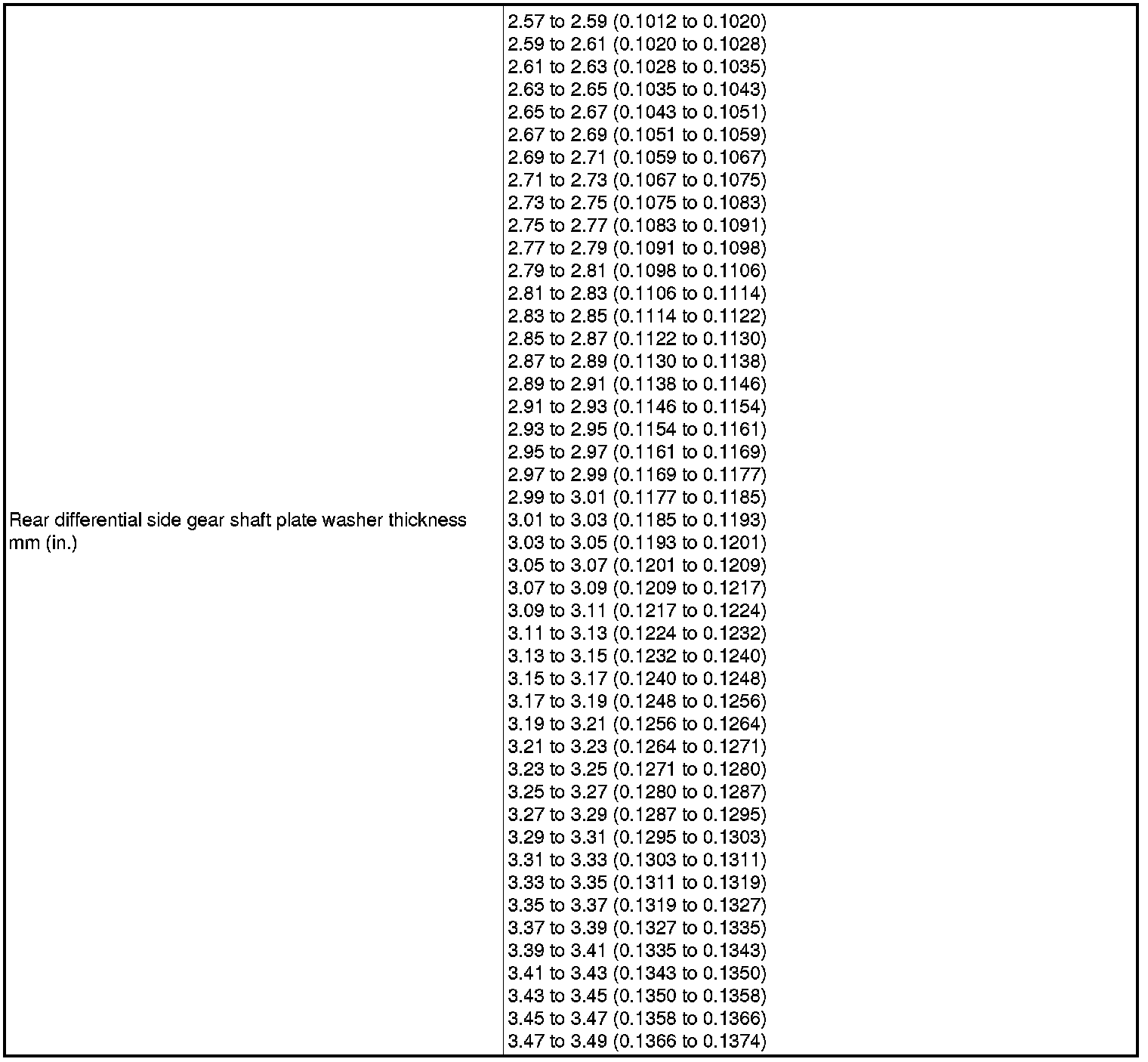

Differential (for 2GR-FSE)

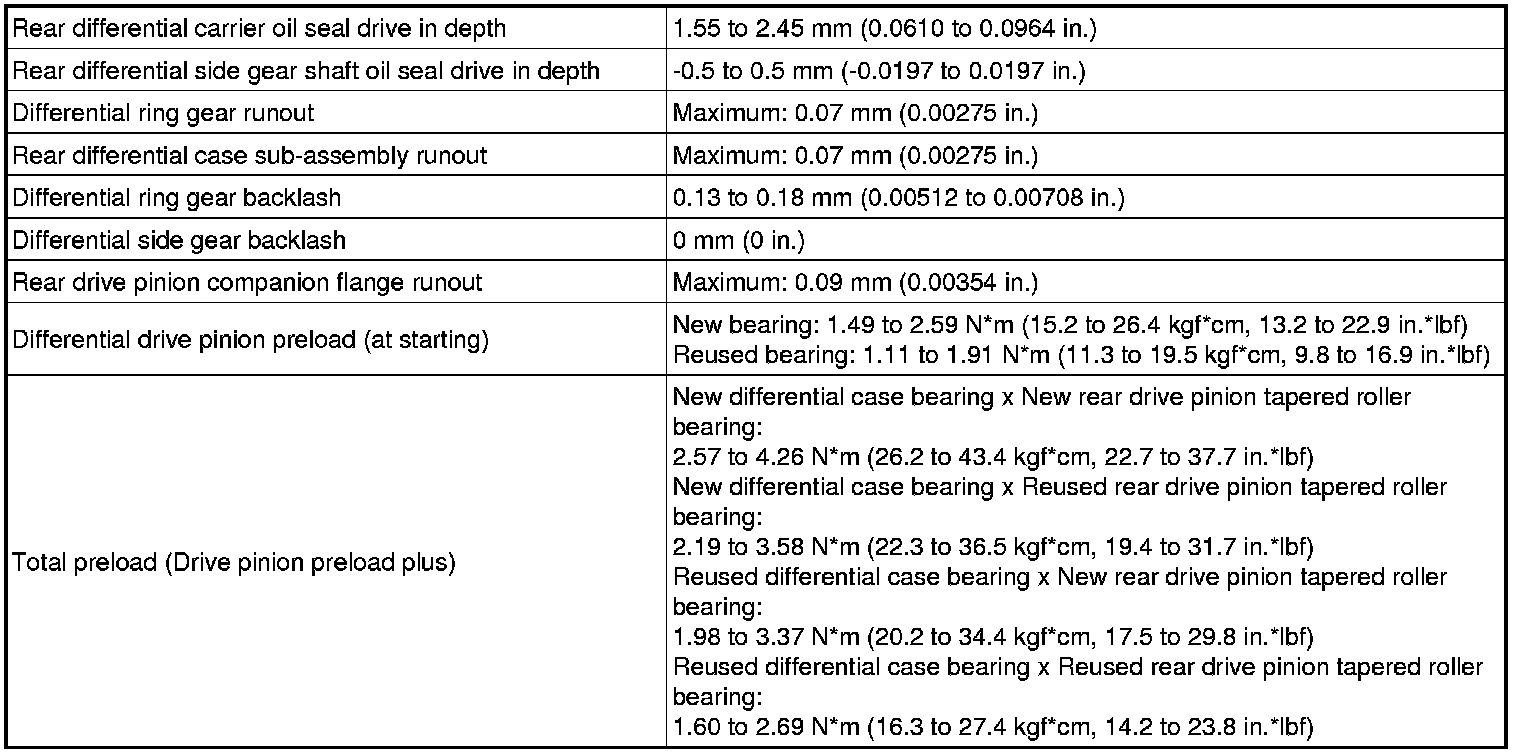

Differential (for 4GR-FSE)
