Removal

4GR-FSE ENGINE CONTROL: MASS AIR FLOW METER: REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal

2. REMOVE ENGINE ROOM SIDE COVER Removal

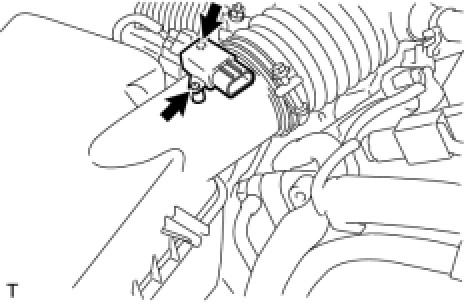

3. REMOVE MASS AIR FLOW METER

(a) Disconnect the MAF meter connector.





(b) Remove the 2 screws and MAF meter.
