Installation

DOOR LOCK: DOOR CONTROL RECEIVER: INSTALLATION

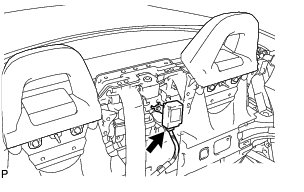

1. INSTALL DOOR CONTROL RECEIVER

(a) Engage the 2 guides.





(b) Install the door control receiver with the bolt.

(c) Connect the connector.





2. INSTALL FRONT PACKAGE TRAY TRIM BOARD Installation

3. INSTALL REAR SEATBACK ASSEMBLY WITH REAR CONSOLE BOX ASSEMBLY Installation

4. INSTALL PACKAGE TRAY TRIM GARNISH LH Installation

5. INSTALL PACKAGE TRAY TRIM GARNISH RH Installation

6. INSTALL REAR SEAT CUSHION ASSEMBLY LH Installation

7. INSTALL REAR SEAT CUSHION ASSEMBLY RH Installation

8. CLOSE METALTOP ROOF Installation
