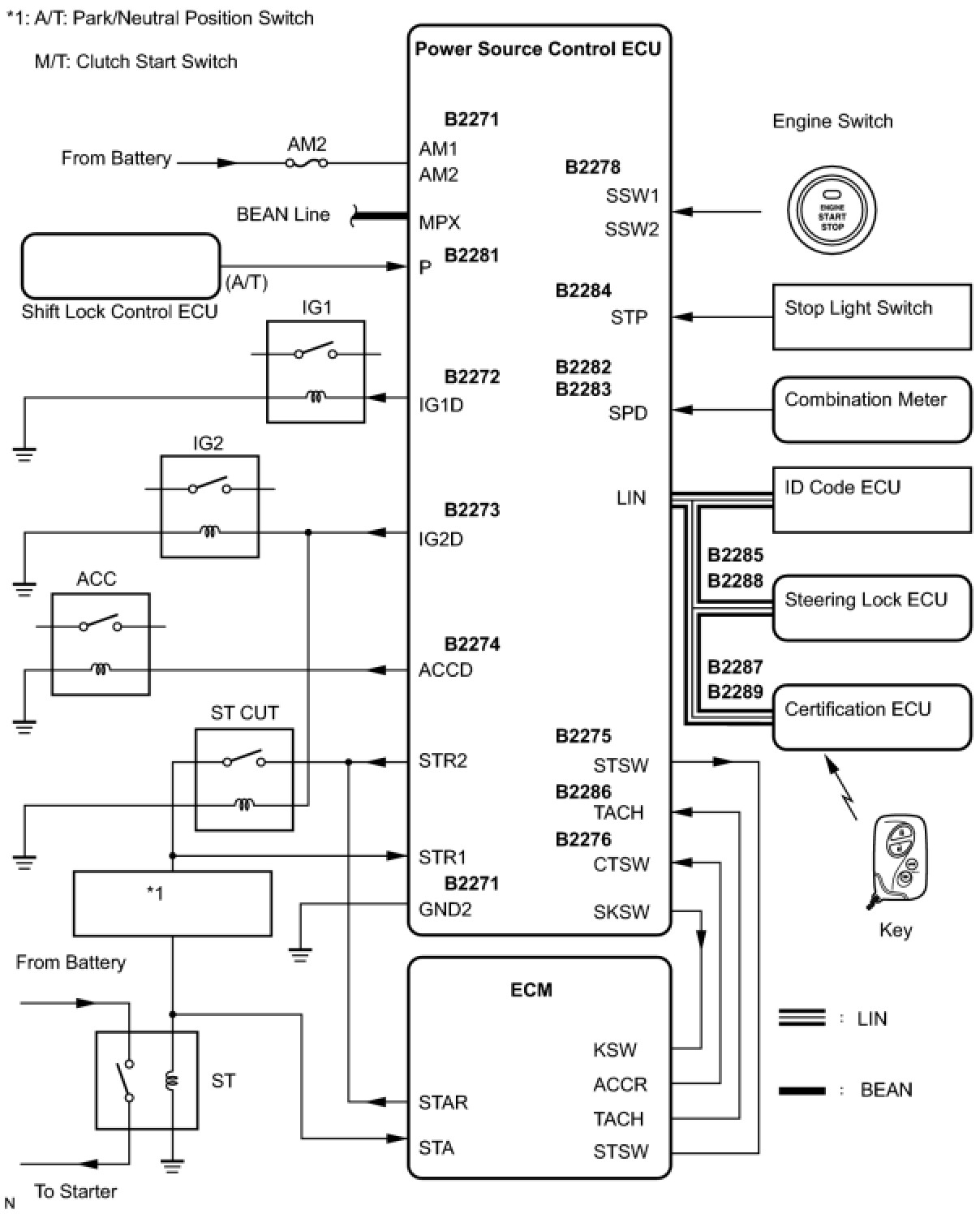

Home >> Lexus >> 2012 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Description and Operation >> Smart Access System With Push-Button Start >> System Diagram
