Torque Specifications





SERVICE SPECIFICATIONS: DIFFERENTIAL: TORQUE SPECIFICATIONS

FRONT DIFFERENTIAL CARRIER ASSEMBLY (for 4WD)

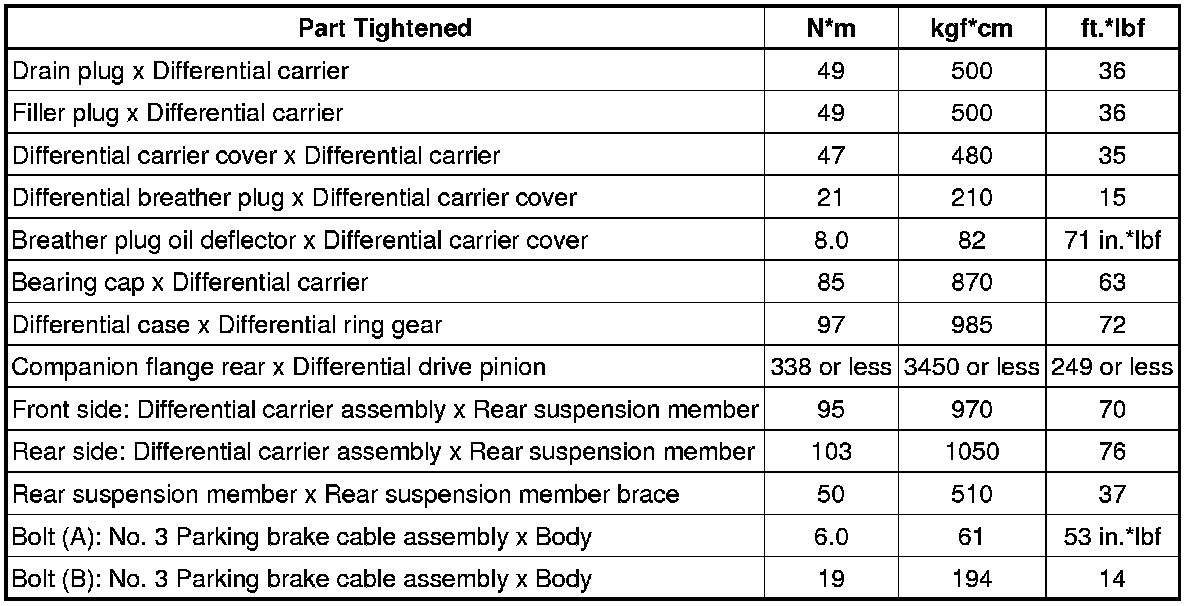

REAR DIFFERENTIAL CARRIER ASSEMBLY (for 2GR-FSE)

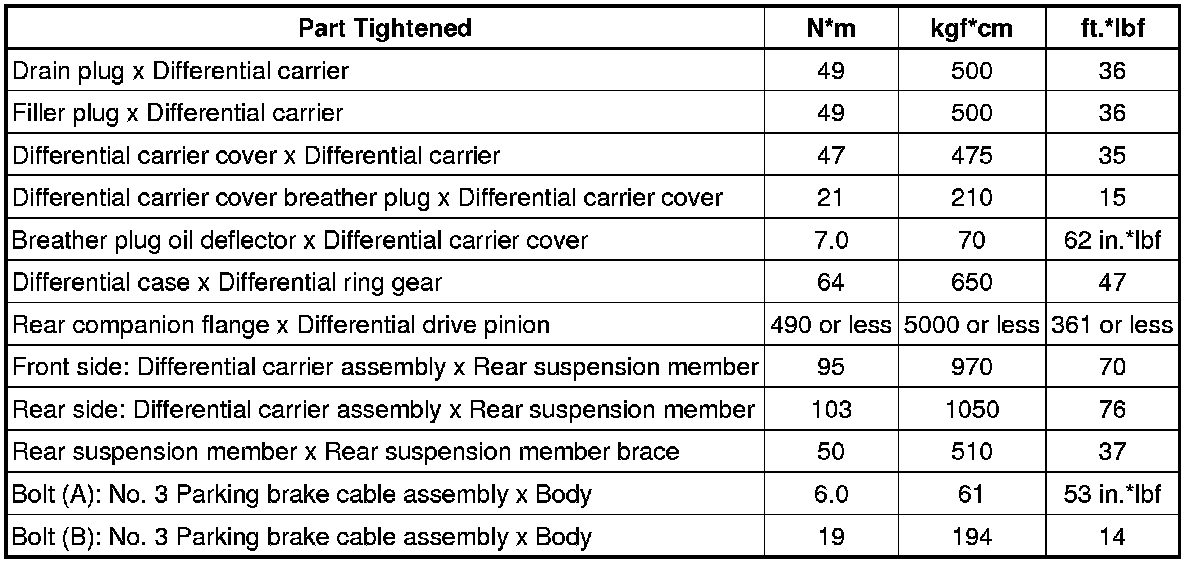

REAR DIFFERENTIAL CARRIER ASSEMBLY (for 4GR-FSE)
