Home >> Lexus >> 2012 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Description and Operation

Ignition System: Description and Operation

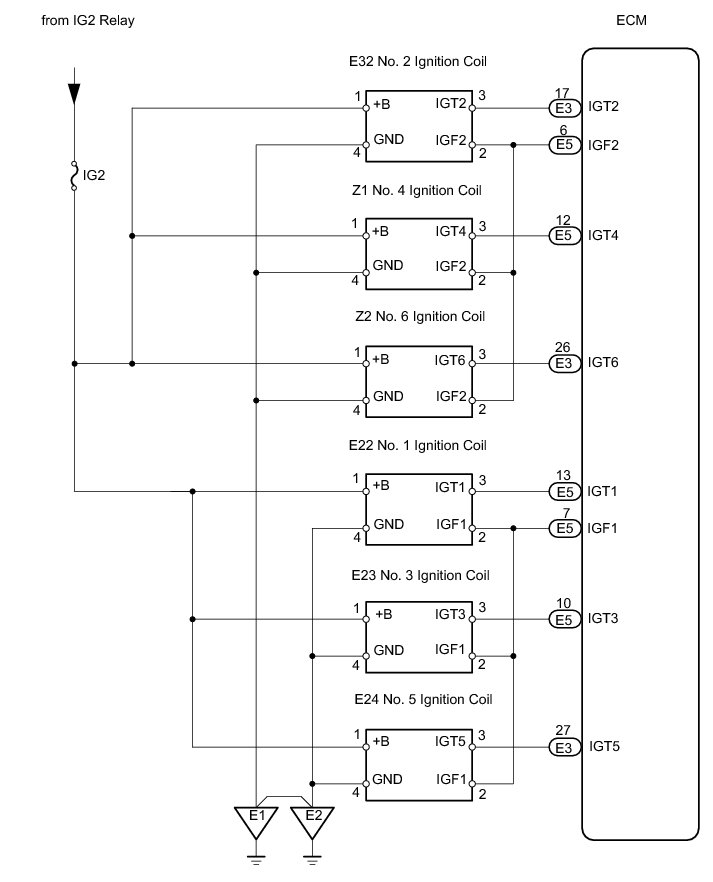

4GR-FSE IGNITION: IGNITION SYSTEM: SYSTEM DIAGRAM
