Garage Door Opener: Notes

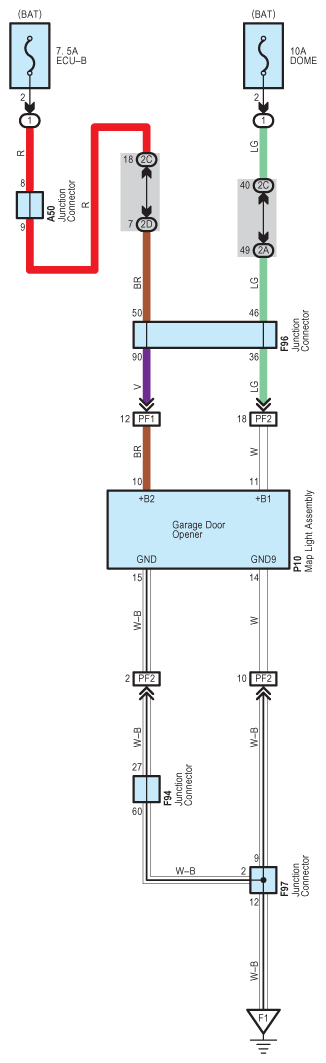

Fig 1: Garage Door Opener - Circuit Diagram

G08911575

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
