Home >> Lexus >> 2012 >> ES 350 V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Engine >> Engine Mount Control Unit >> Service and Repair >> Components

Components

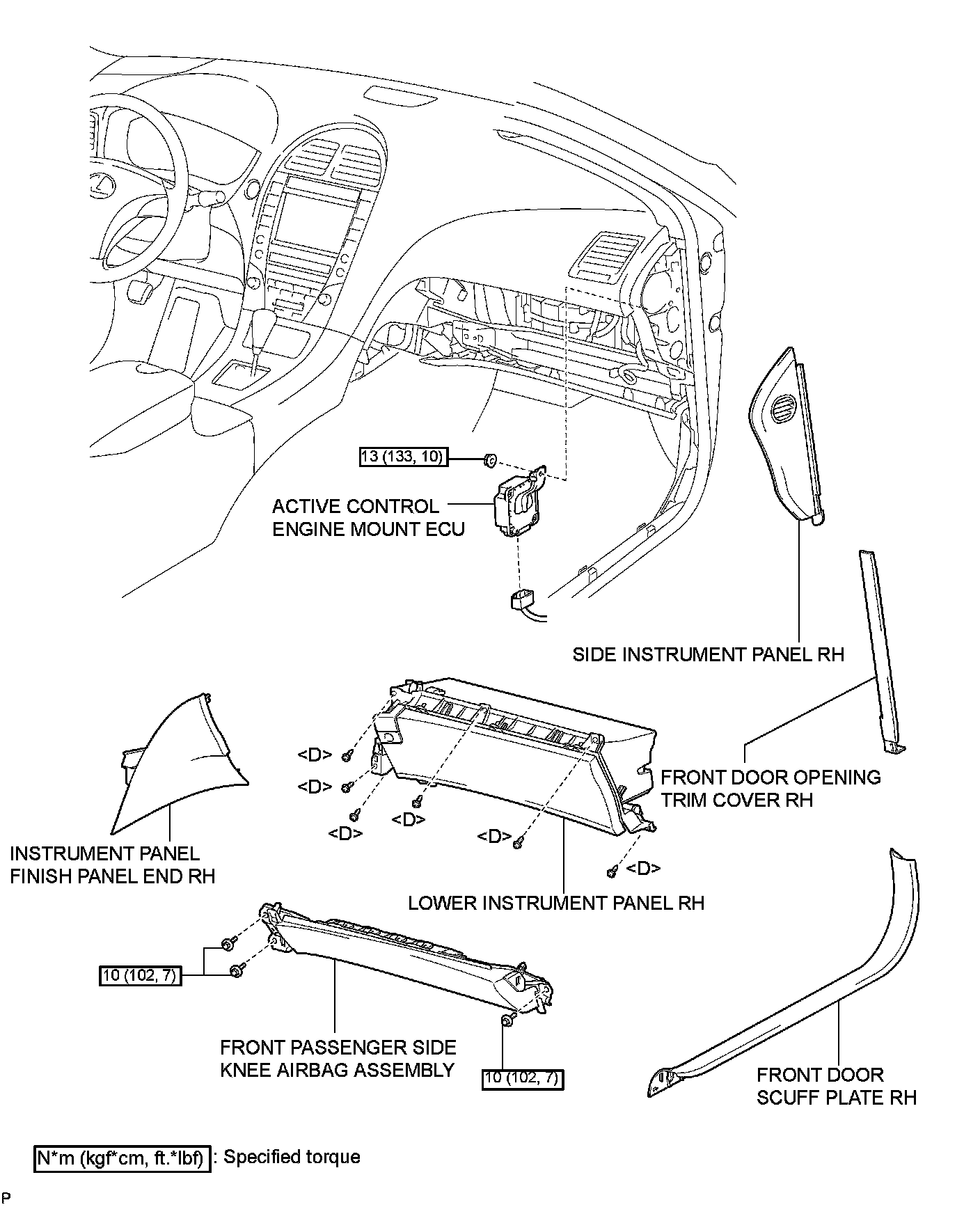

2GR-FE ENGINE CONTROL SYSTEM: ACTIVE CONTROL ENGINE MOUNT ECU: COMPONENTS
