Installation

2GR-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR

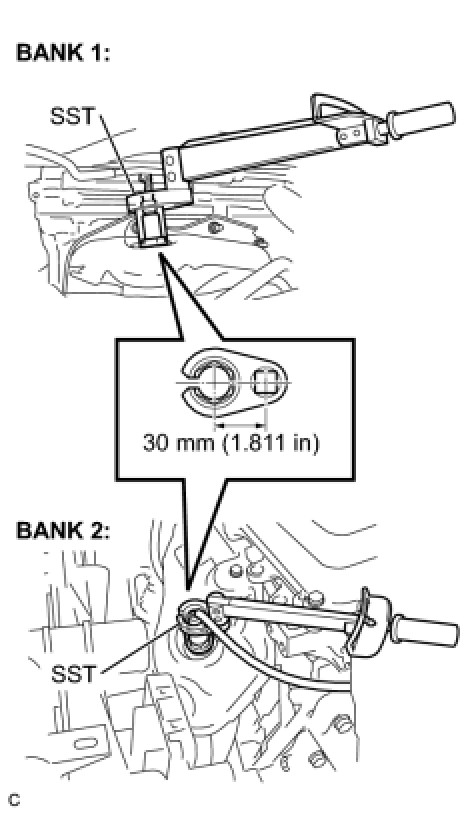

(a) Using SST, install the 2 air fuel ratio sensors to the front pipe assembly.





SST : 09224-00010

Torque : 44 Nm (448 kgf-cm, 32 ft-lbf)

NOTICE:
The torque shown above should be used for tightening without using SST. When the SST is used for tightening, the torque should be calculated based on the length of the SST Service Precautions.

(b) Connect the 2 air fuel ratio sensor connectors.
