CAN Communication System
CAN Communication System

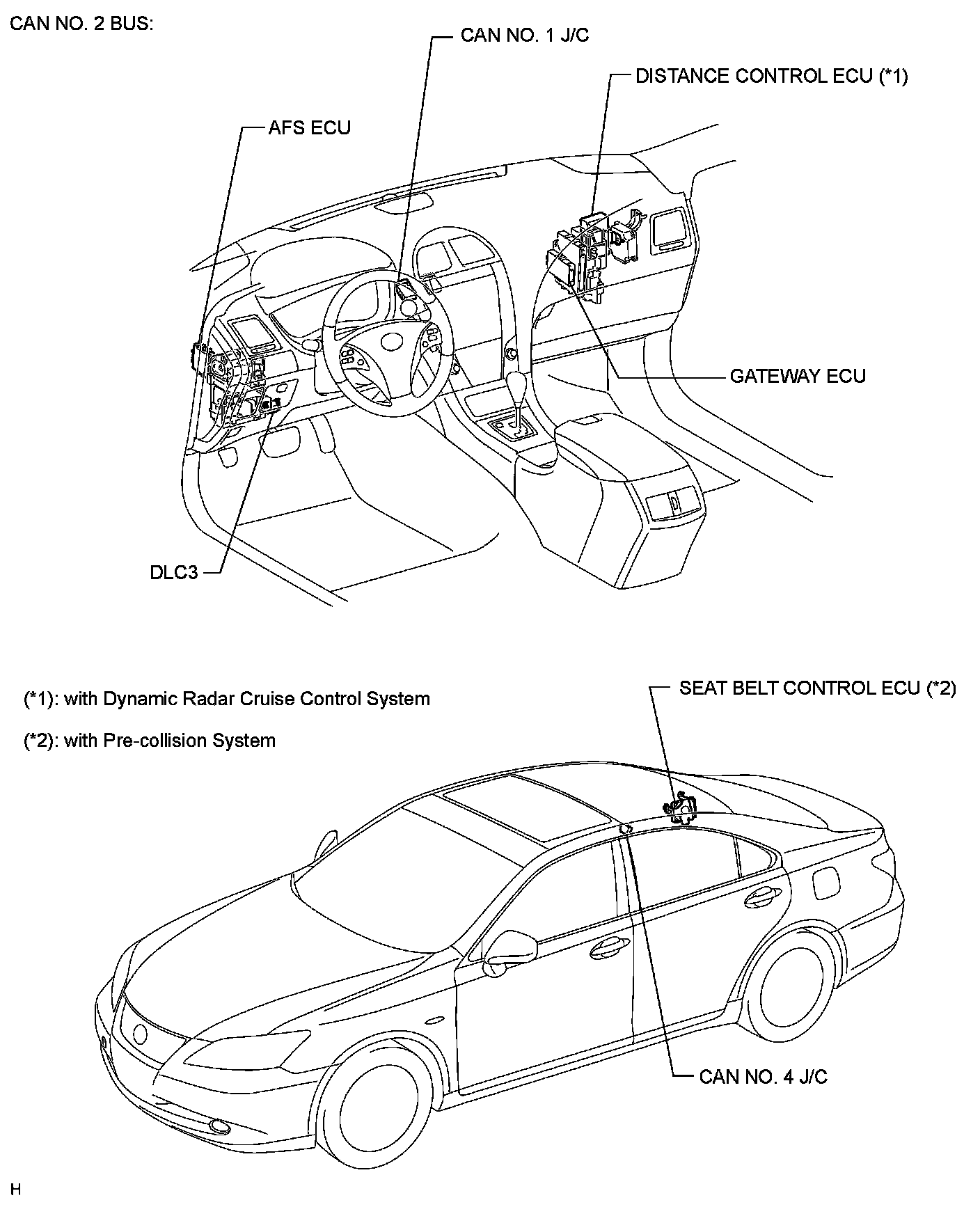

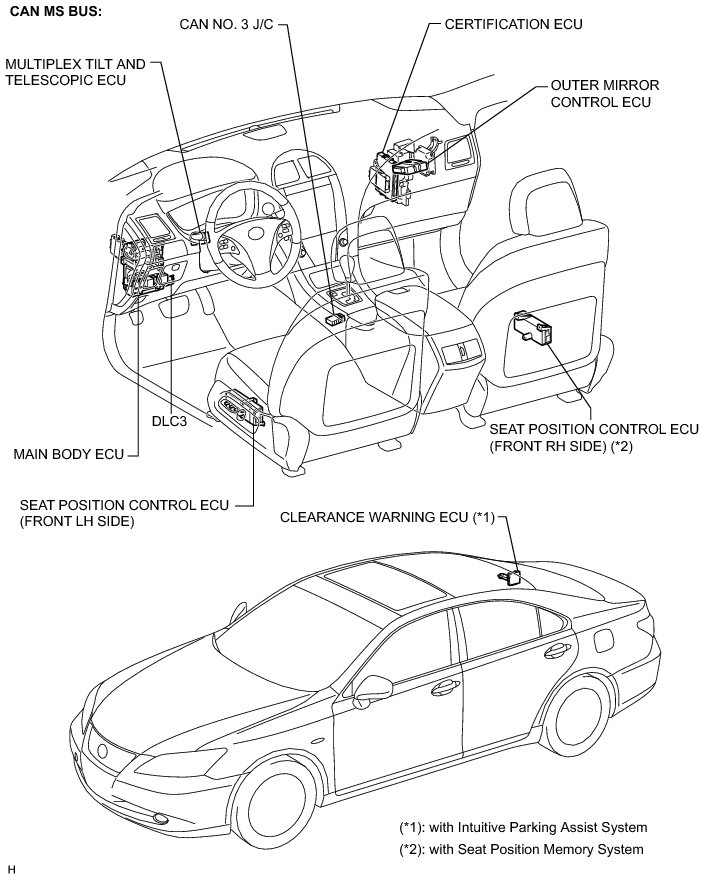

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: PARTS LOCATION
Body:
