Dynamic Radar Cruise Control System
>>

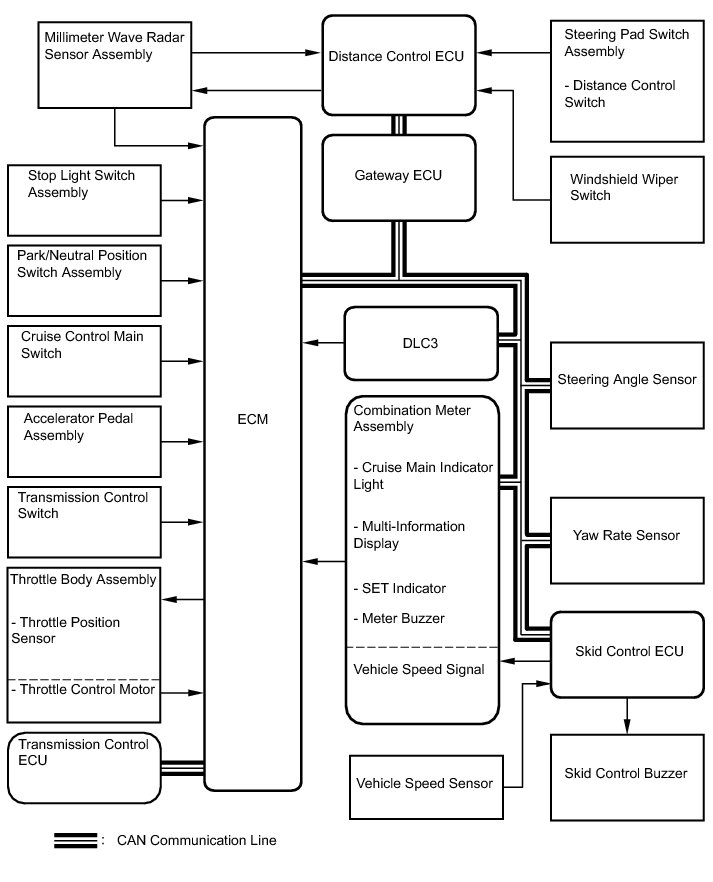

System Diagram
System Diagram
CRUISE CONTROL
: DYNAMIC RADAR CRUISE CONTROL SYSTEM: SYSTEM DIAGRAM

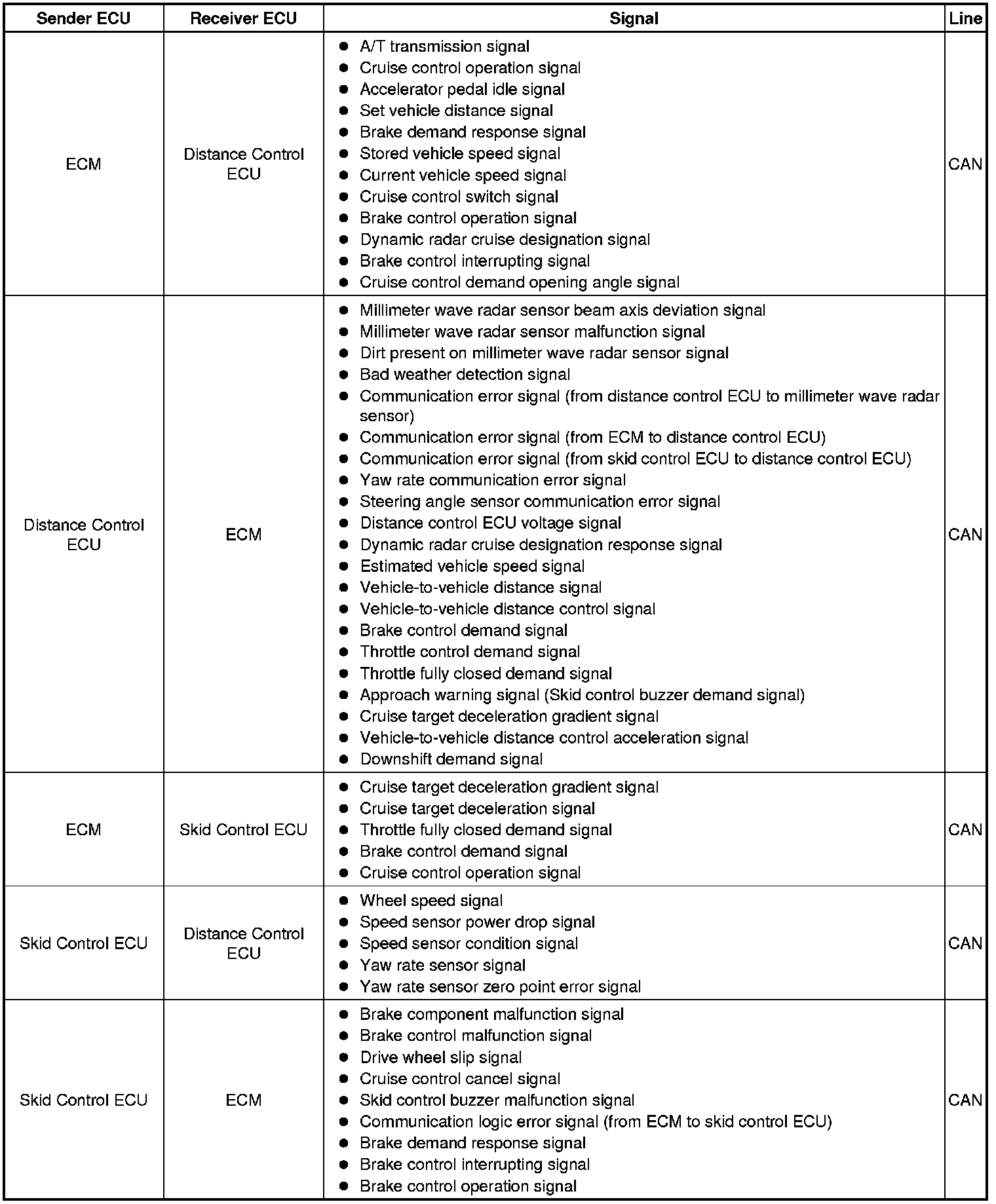

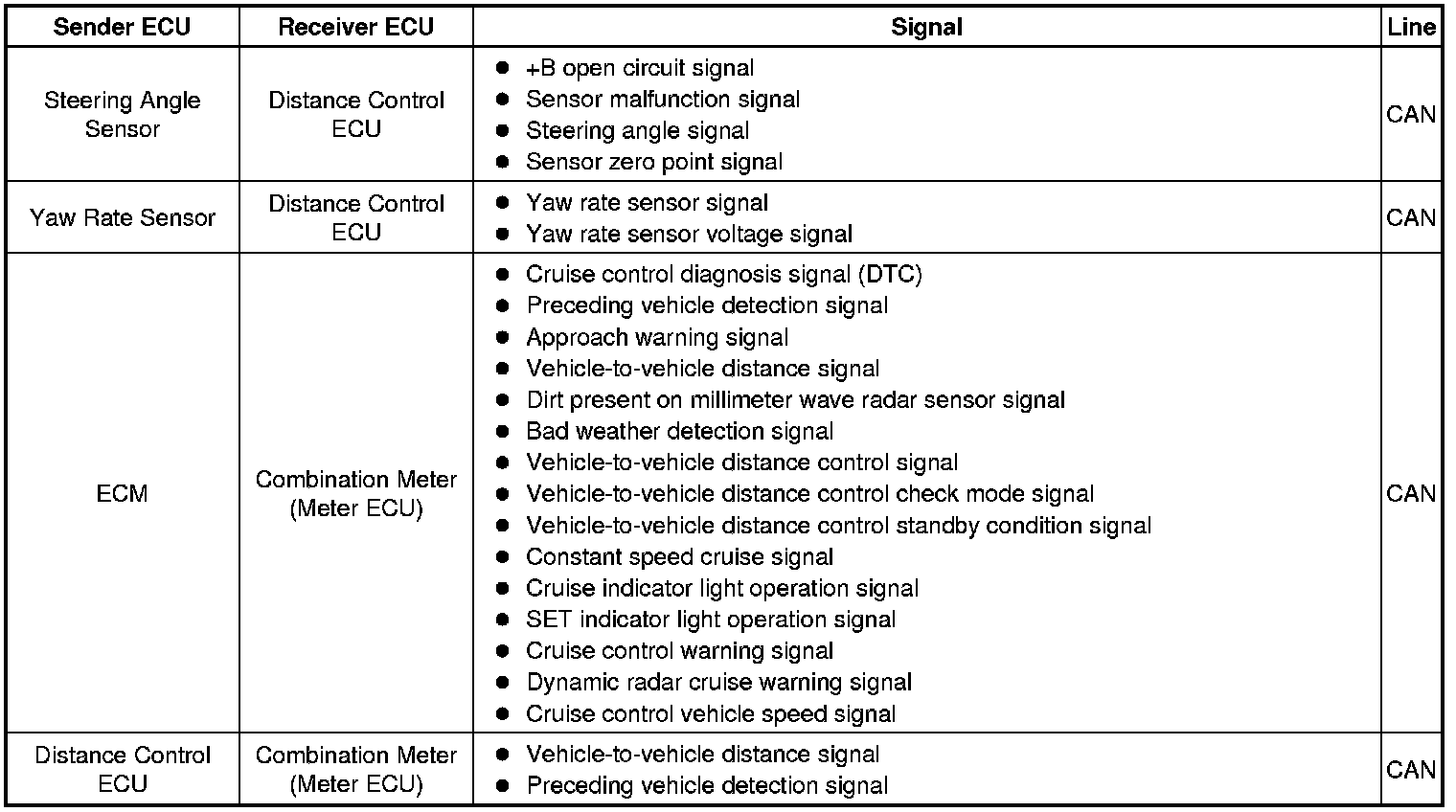

Communication table
