Home >> Lexus >> 2011 >> RX 350 AWD V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Power and Ground Distribution >> Power Distribution Module >> Locations

Power Distribution Module: Locations

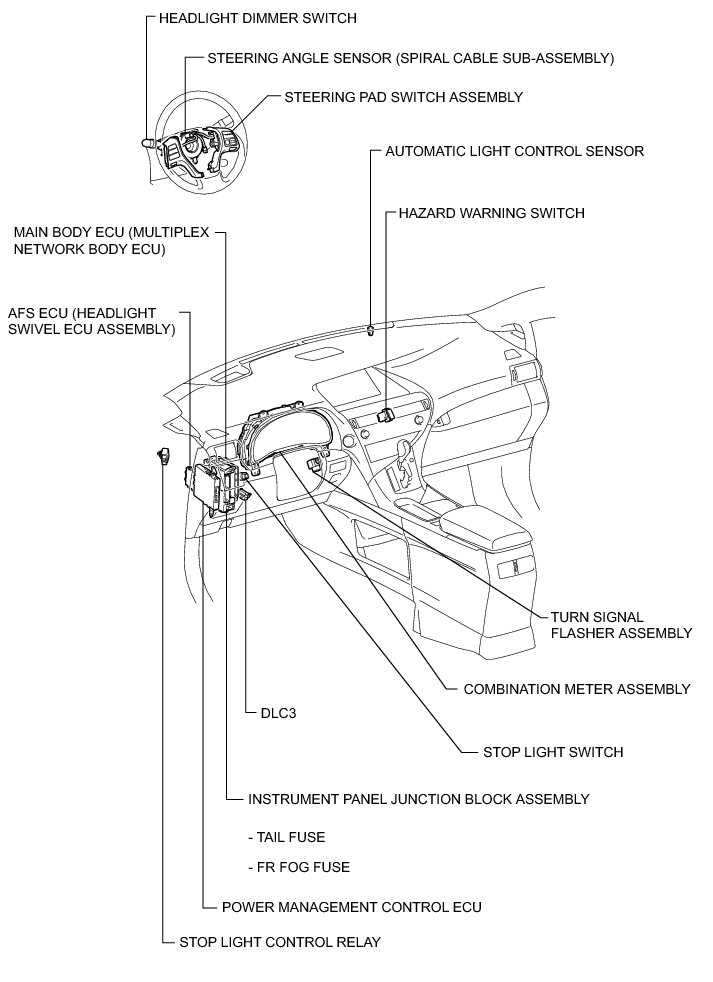

LIGHTING (EXT): LIGHTING SYSTEM: PARTS LOCATION
