Home >> Lexus >> 2011 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transfer Case >> Service Data

Service Data





SPECIFICATIONS: JF2A TRANSFER / 4WD / AWD: SERVICE DATA

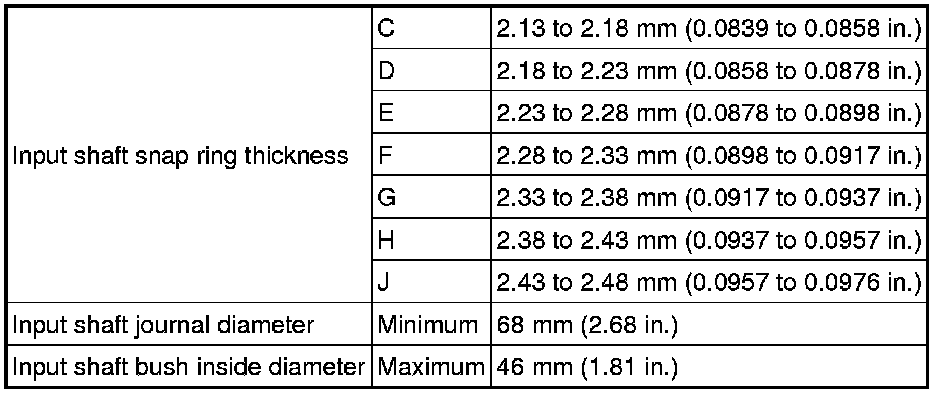

Input Shaft

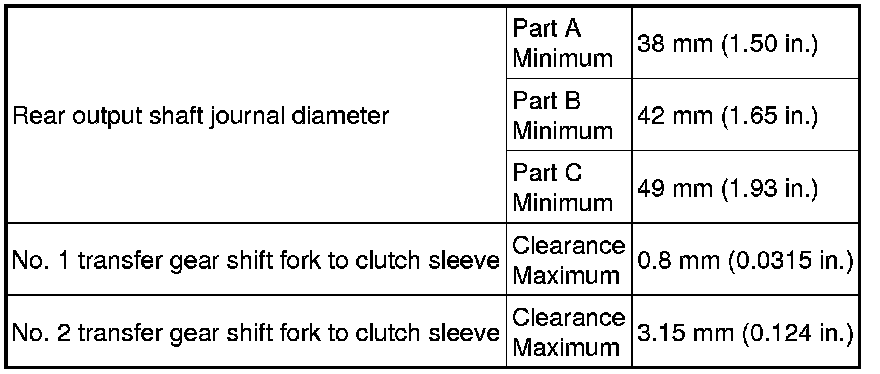

Rear Output Shaft

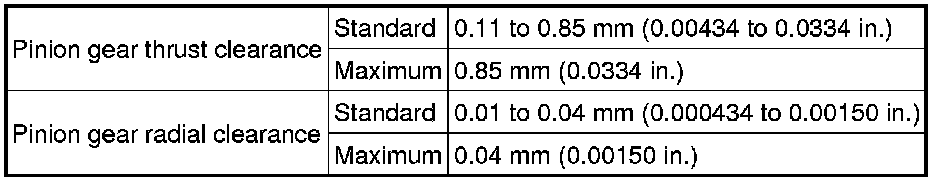

Planetary Gear





Synchronizer Ring





Transfer Drive Sprocket
