Torque Specifications





SPECIFICATIONS: 3UR-FE INTAKE / EXHAUST: TORQUE SPECIFICATIONS

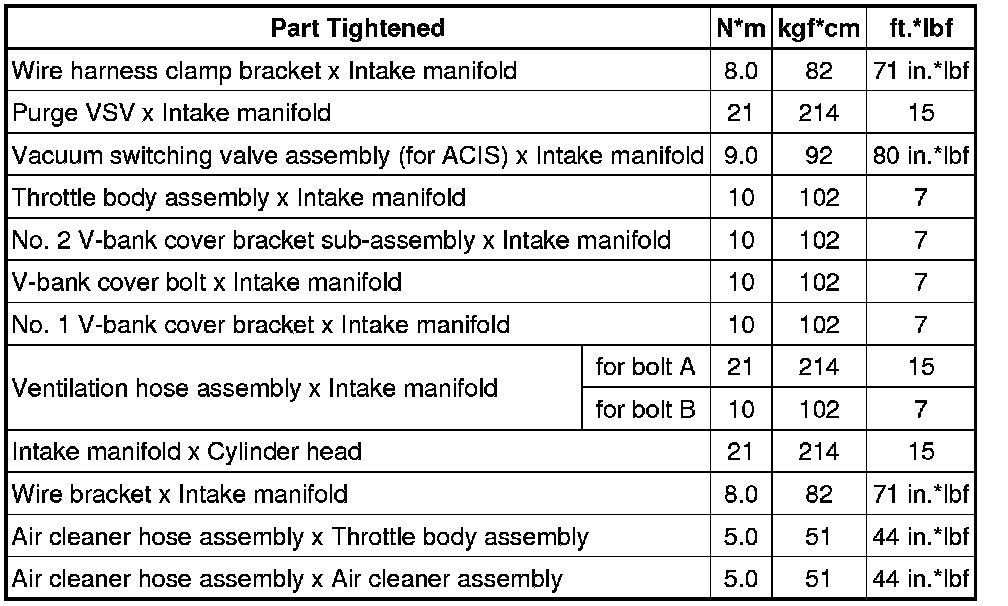

Intake Manifold

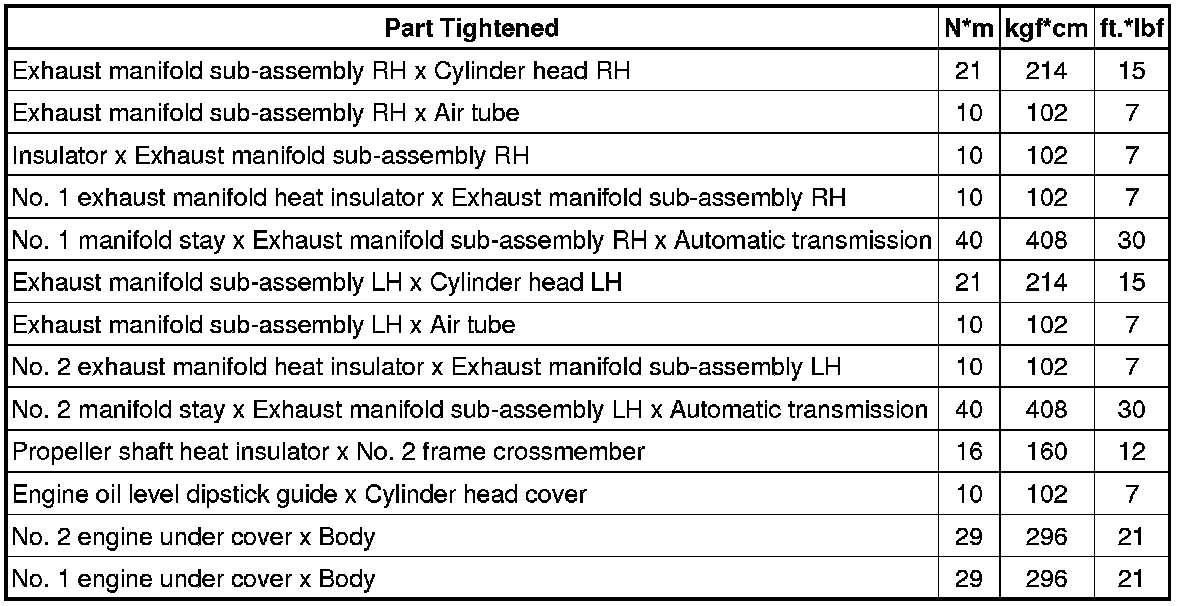

Exhaust Manifold

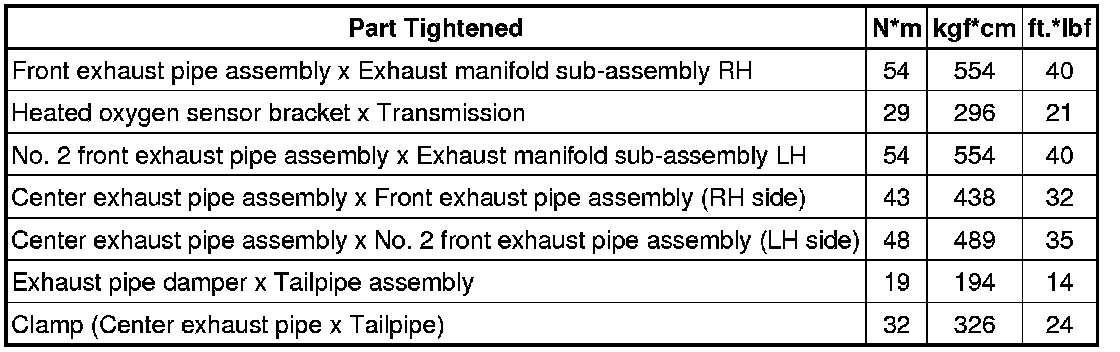

Exhaust Pipe
