Home >> Lexus >> 2011 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Cover

Timing Cover

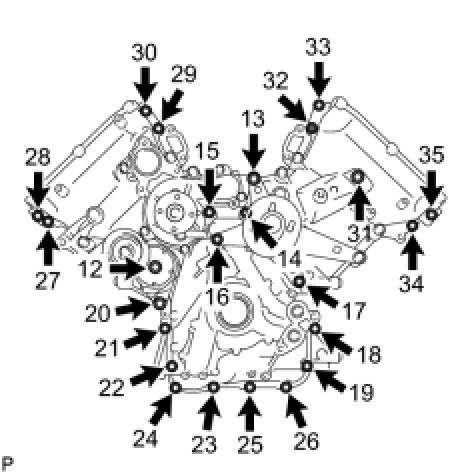

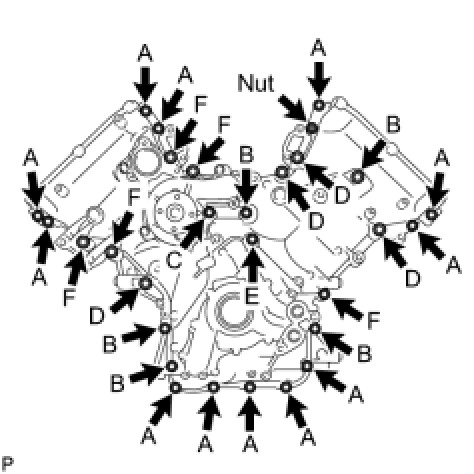

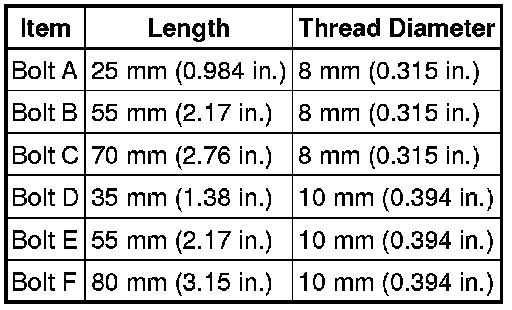

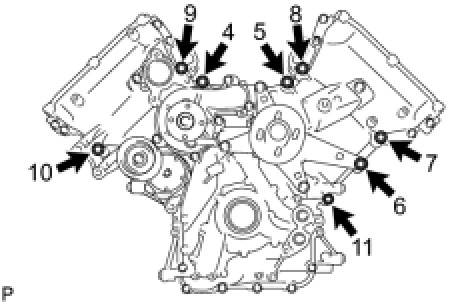

Timing cover













Torque 47 Nm (479 kgf-cm, 35 ft-lbf)





Torque 23 Nm (235 kgf-cm, 17 ft-lbf)
