Engine Lubrication





SPECIFICATIONS: 3UR-FE LUBRICATION: TORQUE SPECIFICATIONS

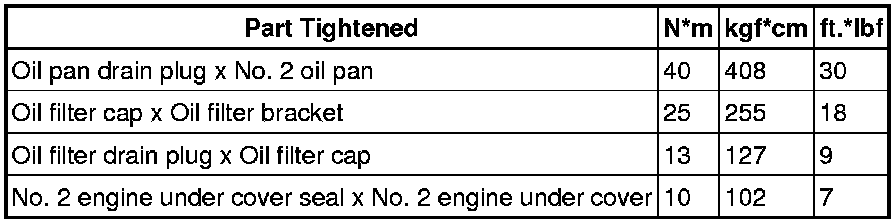

Oil and Oil Filter





Oil Pressure Sensor

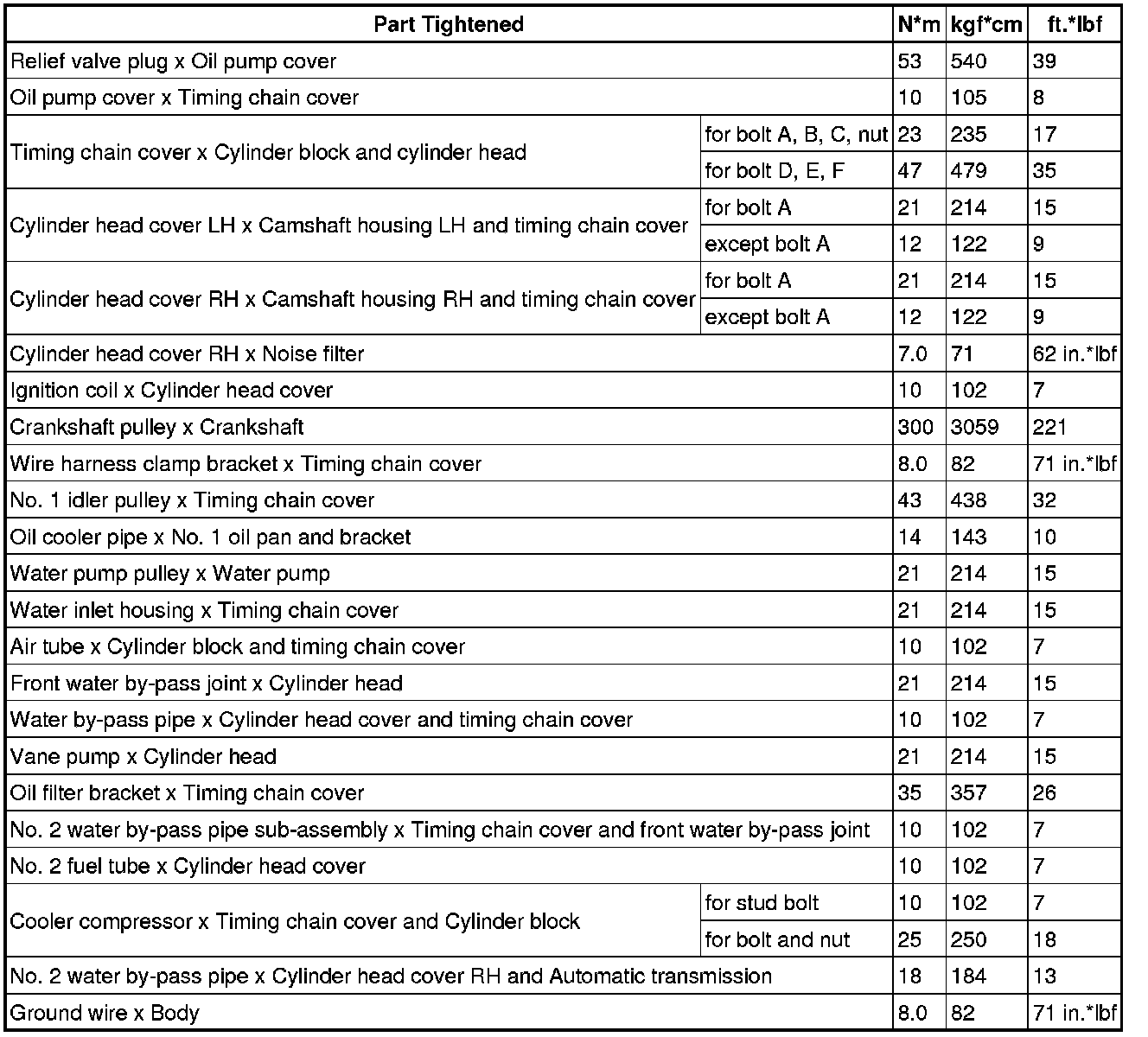

Oil Pump

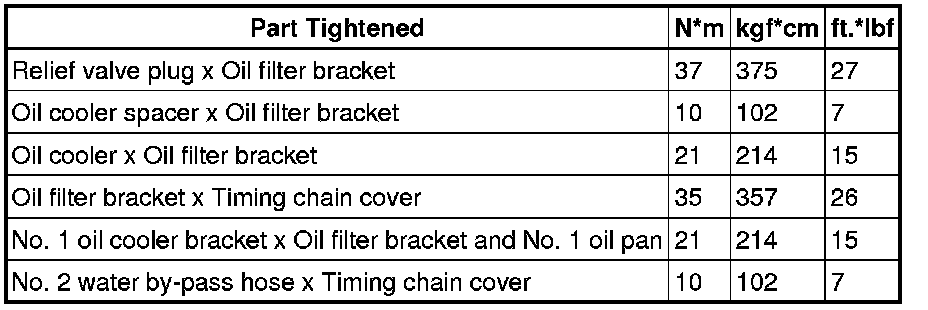

Engine Oil Cooler
