Service Data





SPECIFICATIONS: AXLE AND DIFFERENTIAL: SERVICE DATA

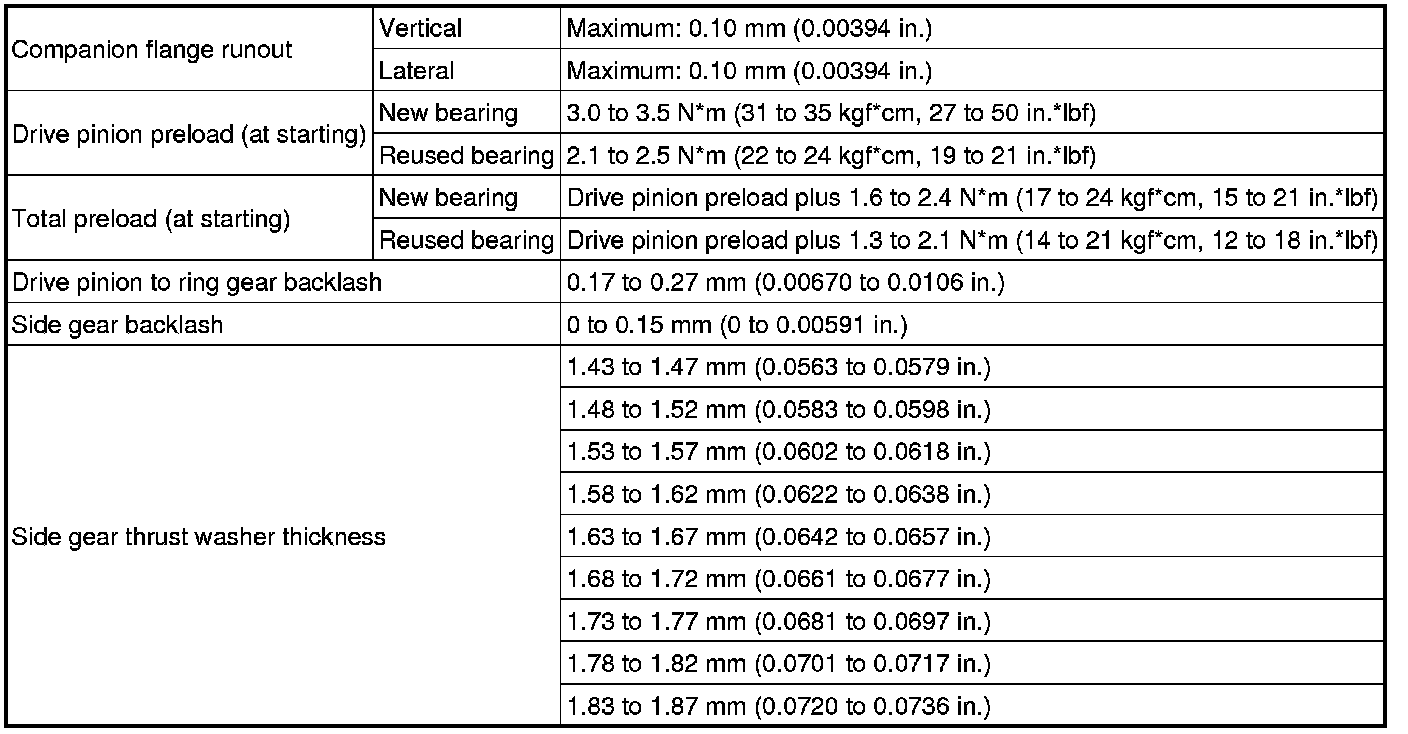

Front Axle Hub





Rear Axle Hub

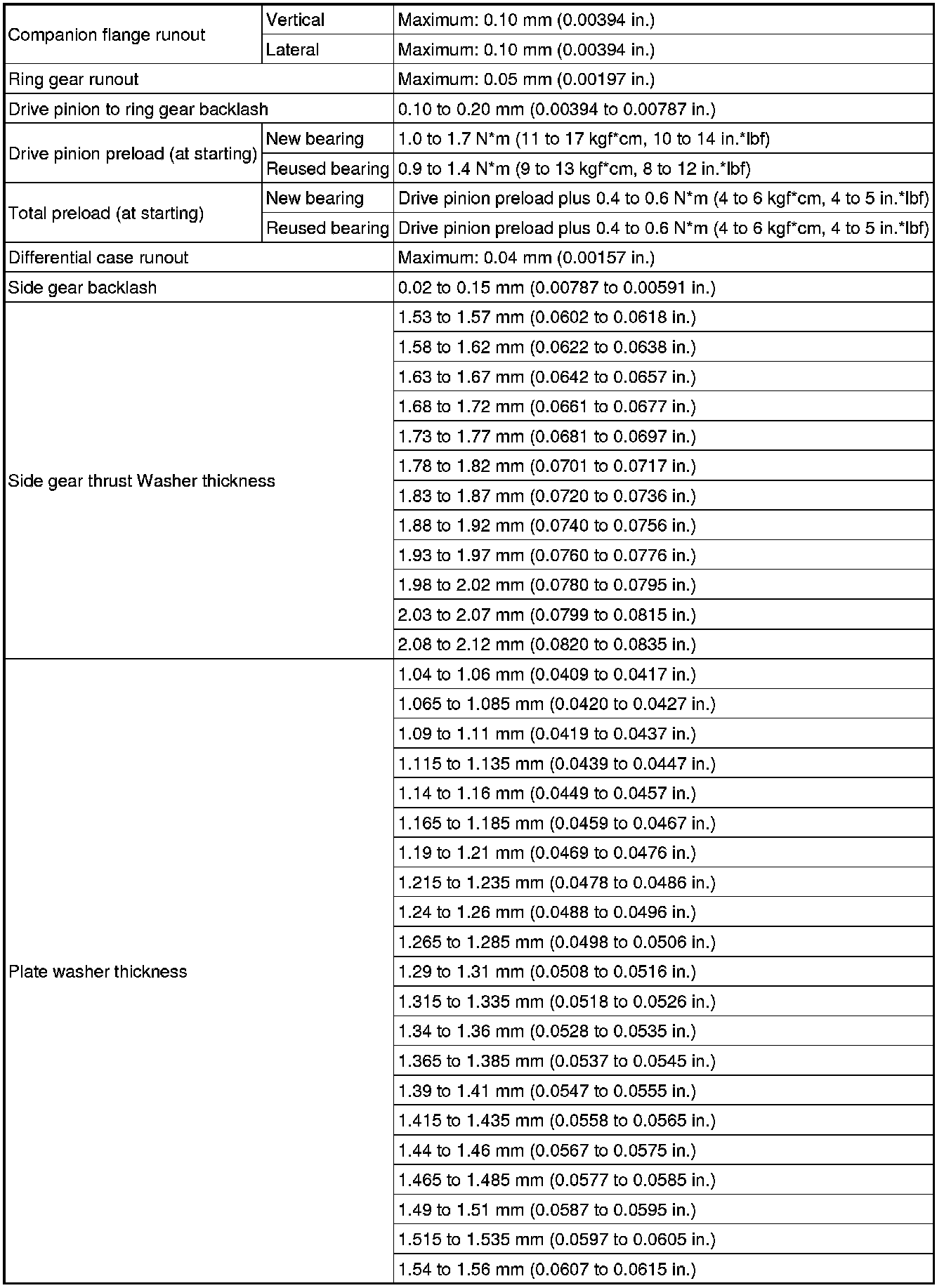

Front Differential

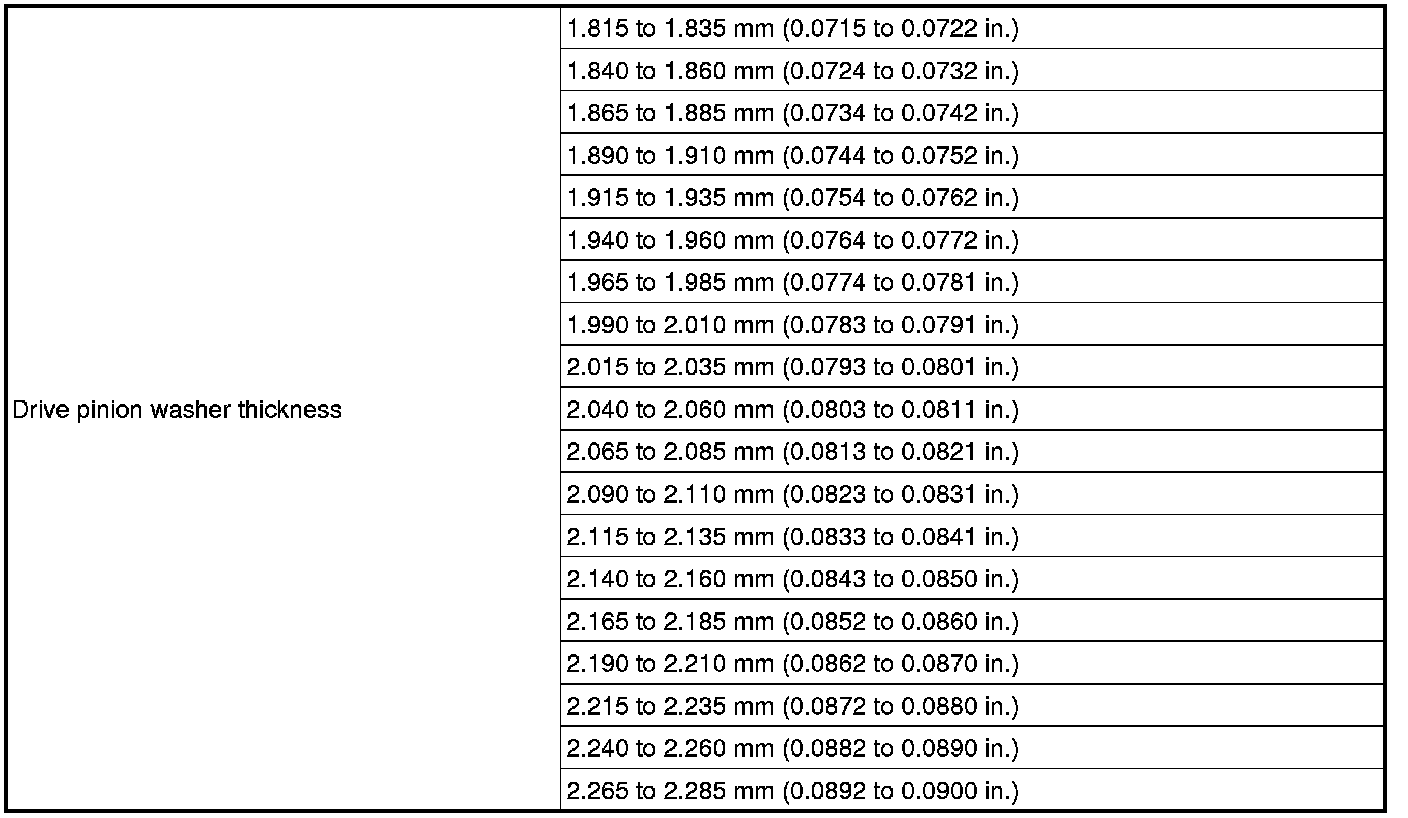

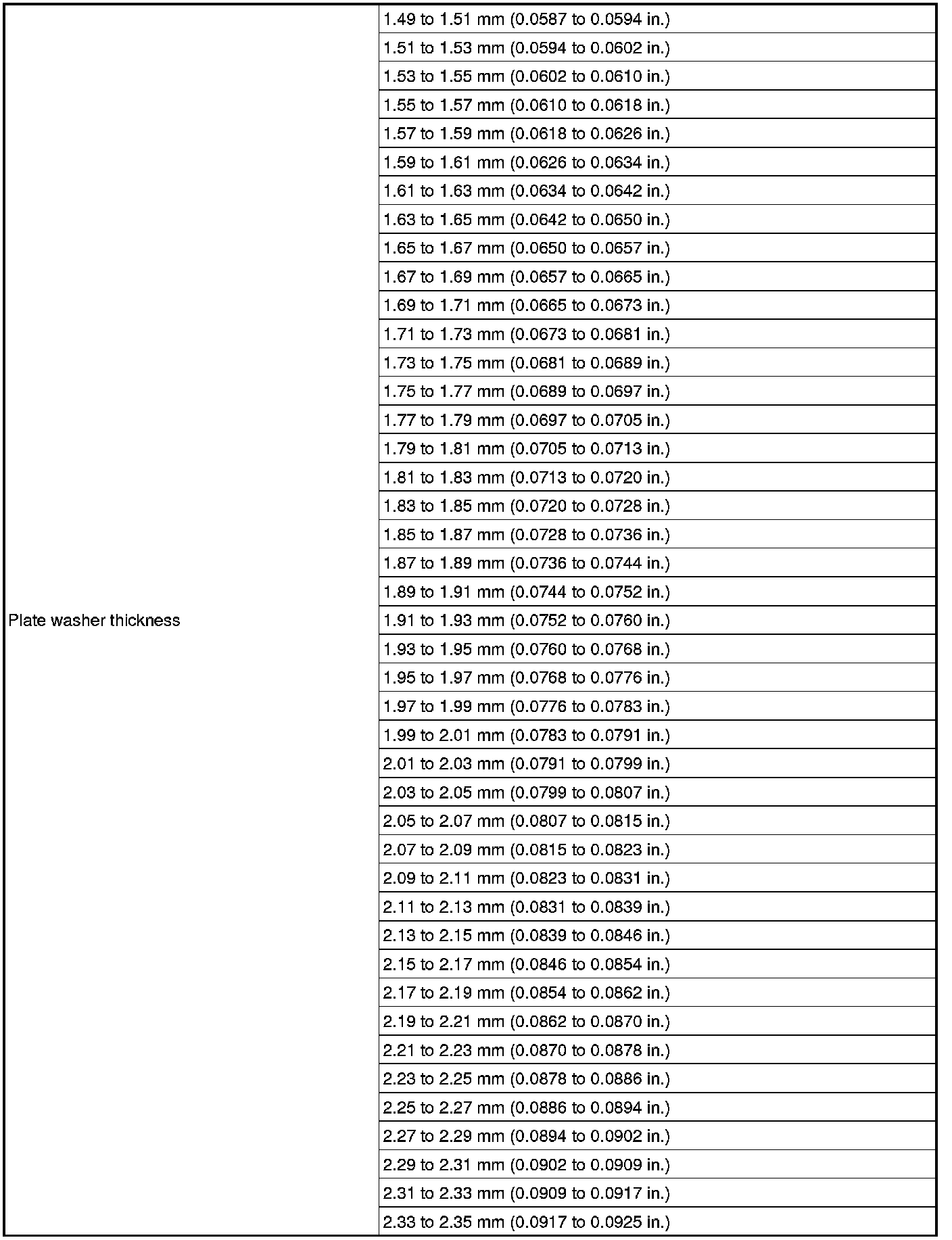

Rear Differential
