System Specifications





SPECIFICATIONS: 3UR-FE COOLING: TORQUE SPECIFICATIONS

Cooling System

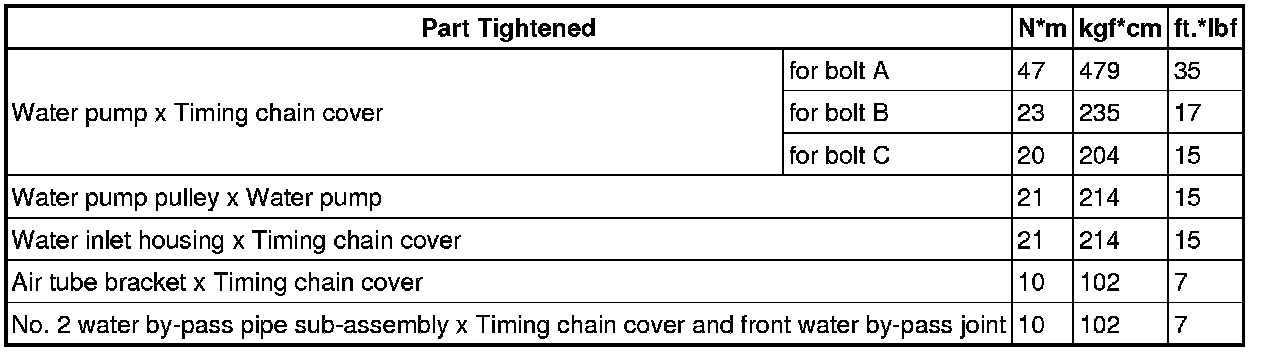

Water Pump

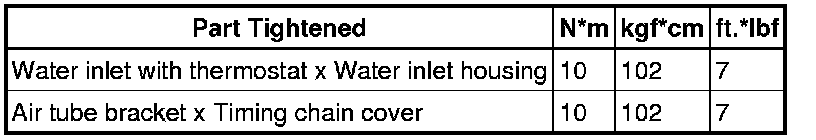

Thermostat

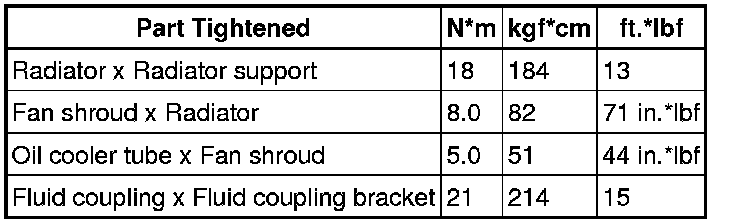

Radiator
