Installation

3UR-FE ENGINE CONTROL: CRANKSHAFT POSITION SENSOR: INSTALLATION

1. INSTALL CRANKSHAFT POSITION SENSOR





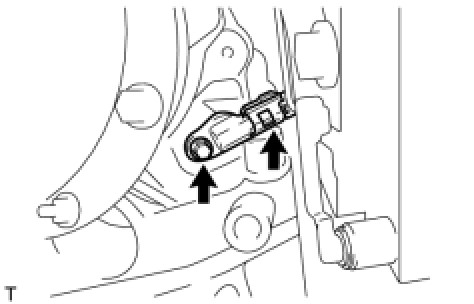

(a) Install the sensor with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Connect the sensor connector.

2. INSTALL CRANKSHAFT POSITION SENSOR PROTECTOR

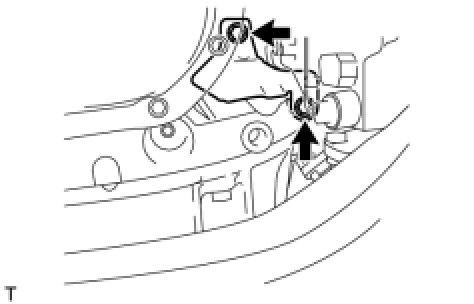

(a) Install the sensor protector with the 2 bolts.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

3. INSTALL NO. 2 ENGINE UNDER COVER Installation
