Removal

CRUISE CONTROL: DISTANCE CONTROL ECU: REMOVAL

1. REMOVE INSTRUMENT PANEL SAFETY PAD

(a) Remove the instrument panel safety pad Removal.

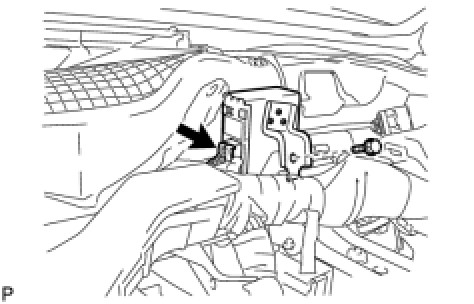

2. REMOVE DISTANCE CONTROL ECU ASSEMBLY

(a) Disconnect the ECU connector.

(b) Remove the bolt and ECU.





NOTICE:
Do not drop the ECU or subject it to strong shocks.
