Installation

SEAT: SEAT MEMORY SWITCH: INSTALLATION

1. INSTALL SEAT MEMORY SWITCH

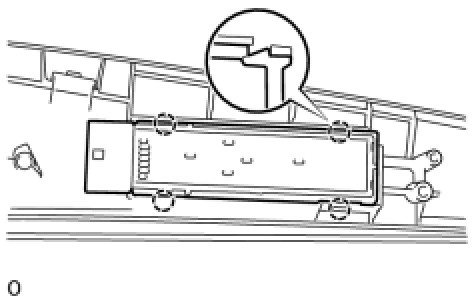

(a) Attach the 4 claws to install the seat memory switch.

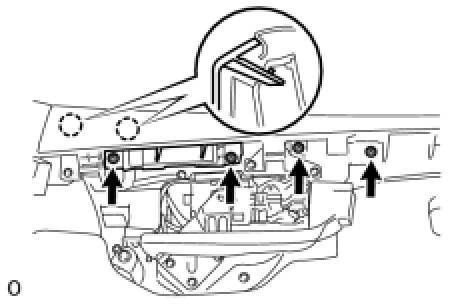

(b) Attach the 2 claws to install the front door trim ornament.





(c) Install the 4 screws.

2. INSTALL FRONT DOOR WIRING SUB-ASSEMBLY RH Reassembly

3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Reassembly

4. INSTALL FRONT UPPER ARMREST BASE PANEL LH Reassembly

5. INSTALL FRONT DOOR INSIDE HANDLE BEZEL LH Reassembly

6. INSTALL FRONT LOWER DOOR FRAME BRACKET GARNISH LH Reassembly
