Power Trunk / Liftgate Control Module: Locations

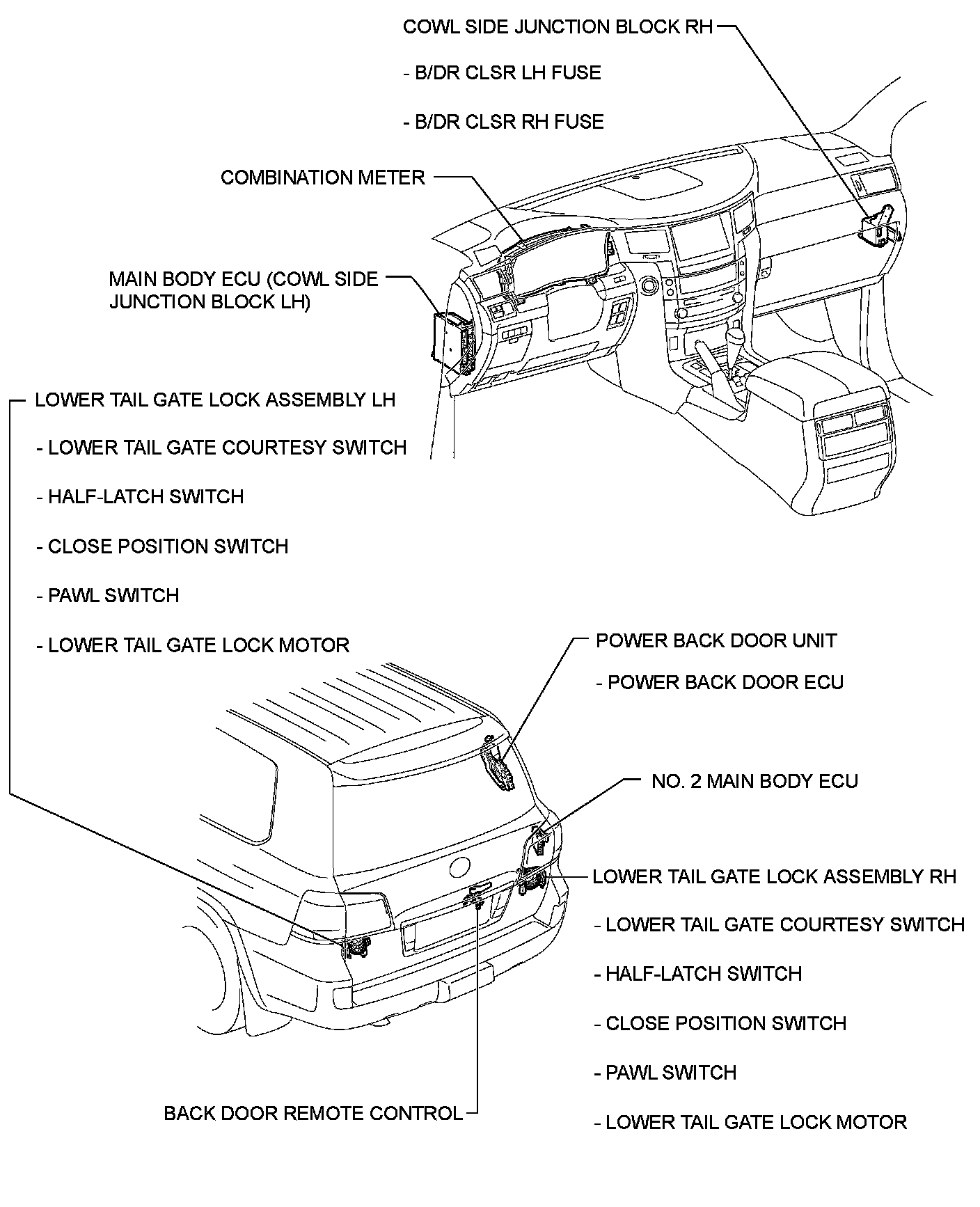

DOOR / HATCH: TAIL GATE CLOSER SYSTEM: PARTS LOCATION

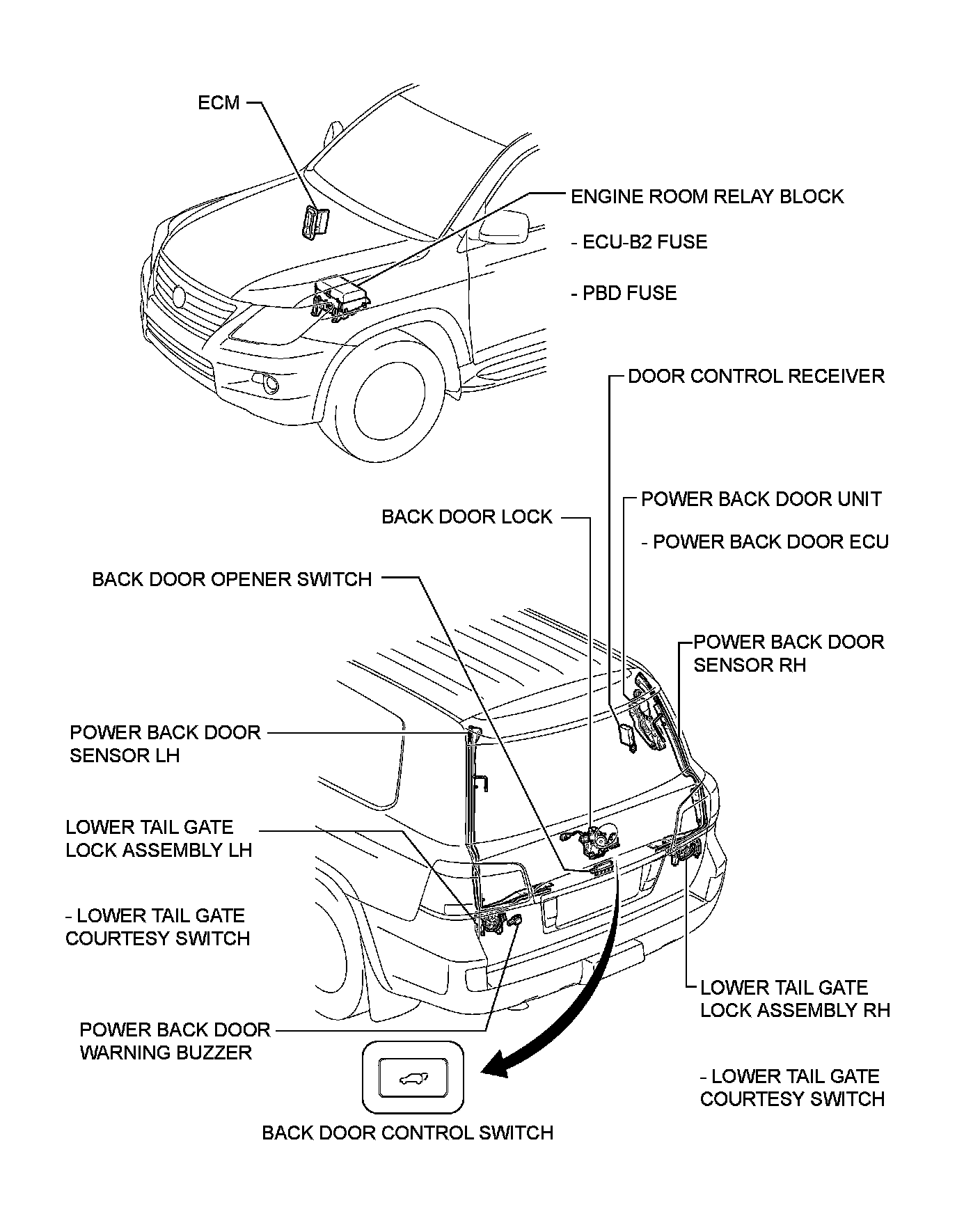

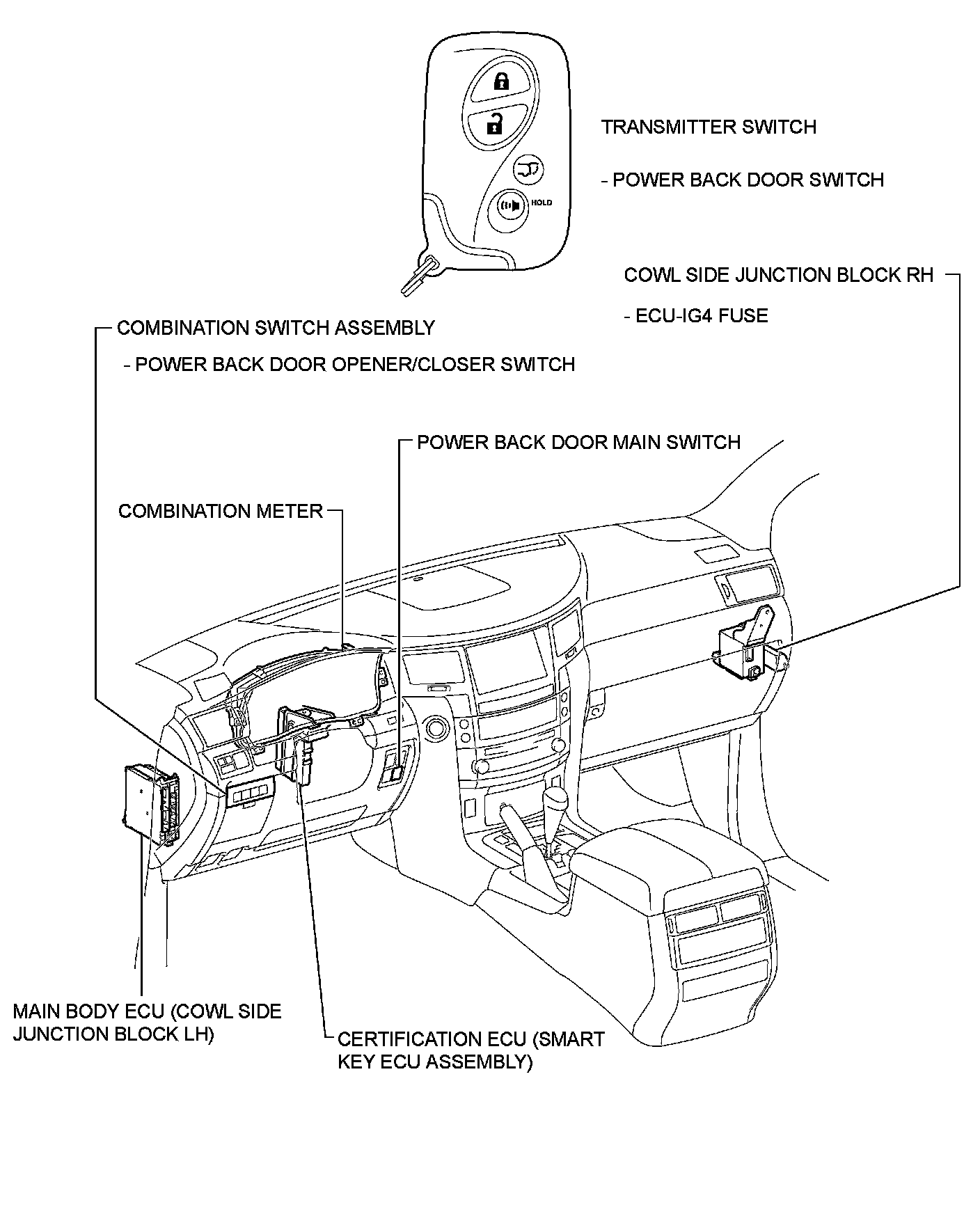

DOOR / HATCH: POWER BACK DOOR SYSTEM: PARTS LOCATION
