Installation

THEFT DETERRENT / KEYLESS ENTRY: ID CODE BOX: INSTALLATION

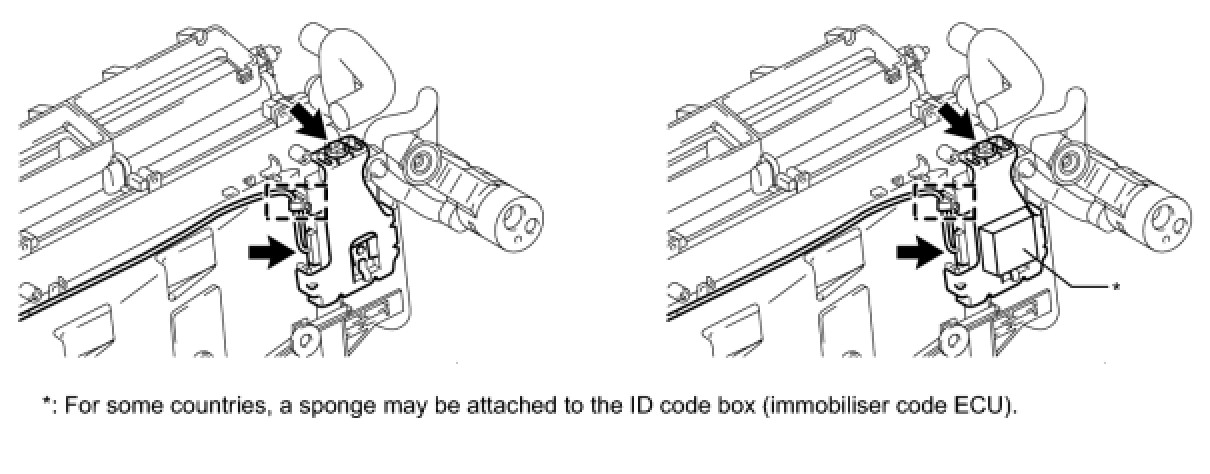

1. INSTALL ID CODE BOX

(a) Connect the connector and attach the clamp.

(b) Install the ID code box (immobiliser code ECU) with the screw.





2. INSTALL AIR CONDITIONING UNIT

(a) Install the air conditioning unit Installation.

3. REGISTER ECU CODE

(a) Register the ECU code Engine Immobilizer System.
