DCM (Telematics Transceiver): Installation: Installation

INSTALL NO. 2 TELEPHONE BRACKET
1. Set the aligning protrusions of the bracket, labeled A, into the holes of the DCM (telematics transceiver).

  Fig 1: Identifying No. 2 Telephone Bracket & Screw Labeled B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No. 2 telephone bracket with the screw labeled B.
INSTALL NO. 1 TELEPHONE BRACKET
1. Set the aligning protrusions of the bracket, labeled A, into the holes of the DCM (telematics transceiver).

  Fig 2: Identifying No. 1 Telephone Bracket & Screws Labeled B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No. 1 telephone bracket with the 2 screws labeled B.
INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
1. Connect the connector.

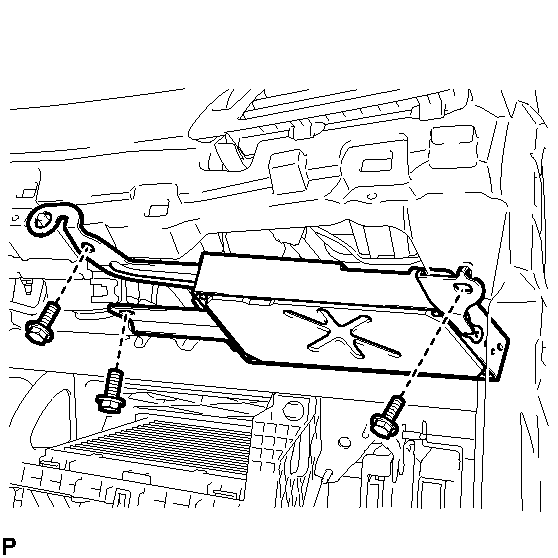

  Fig 3: Identifying Bolts Of DCM (Telematics Transceiver) With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the DCM (telematics transceiver) with the 3 bolts.
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY . Refer to INSTALLATION - Step 18
INSTALL NO. 2 INSTRUMENT CLUSTER MOULDING . Refer to INSTALLATION - Step 19
INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL INSTRUMENT PANEL LOWER . Refer to INSTALLATION - Step 2
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 22
INSTALL INSTRUMENT SIDE PANEL RH . Refer to INSTALLATION - Step 23
INSTALL INSTRUMENT PANEL FINISH PANEL END RH . Refer to INSTALLATION - Step 9
INSTALL NO. 3 BOX PANEL . Refer to INSTALLATION - Step 6
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
PRECAUTION FOR DCM (TELEMATICS TRANSCEIVER)
1. When replacing the DCM (telematics transceiver), perform the vehicle contract setting. Refer to DCM ACTIVATION .
